1280 X 800 Waterproof Touch Screen PC
12inch Full Waterproof Panel Pc Anti-Corrosive 1280 X 800 For Food Beverage Chemical FeatureThe waterproof pc is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications. 1.12.1" TFT LED, resolution 1280*800 2. Intel Core i3-6100U Dual Core 2.4GHz3. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference. 4. Multi ports for option: VGA/HD-MI
12inch Waterproof Touch Screen PC
,1280 X 800 Waterproof Touch Screen PC

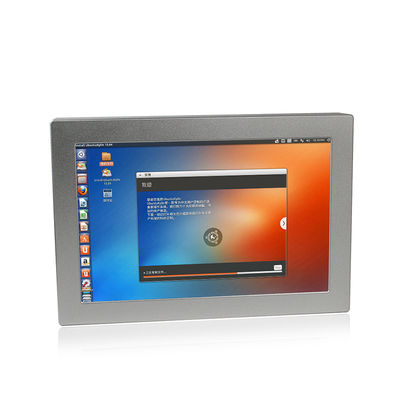

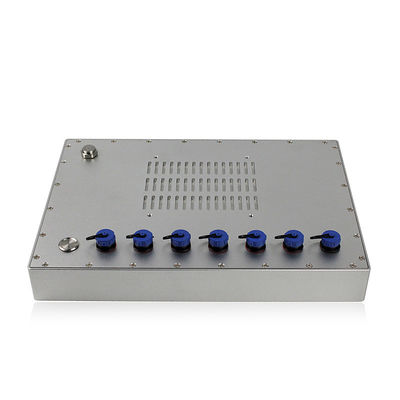

12inch Full Waterproof Panel Pc Anti-Corrosive 1280 X 800 For Food Beverage Chemical
Feature
The waterproof pc is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.
1.12.1" TFT LED, resolution 1280*800
3. Adopt 5 wire resistive touch screen, high precision, durable, anti-interference.
5. High performance motherboard, fanless design, 7x24 continuous operation.
| WPC-P012WAR | ||
| System | CPU | Intel Core i5-6200U Dual Core 2.5GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) | |
| USB | 4 x USB ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 12.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 700:1 | |
| Colors | 16.7M , 76% NTSC | |
| Response Time | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP67 / IP68 / IP69K | |
| Product Dimension | 312 x 214 x 42 mm | |
| Cut-out Size | / | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 7.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦25W | |
Packing List
WPC-P010SAR Waterproof Panel PC
Waterproof VGA/RS232/LAN/USB/COM cable
1x Utility DVD Driver
1x Power Adaptor
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
