Product Details:
|
| Waterproof: | IP66/IP67/IP69K | CPU: | Intel Core I5-8265U Quad Core 1.6GHz |
|---|---|---|---|
| Memory: | DDR4L 2400MHz 4GB, Up To 32GB | Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| I/O Port: | VGA/HD-MI/LAN/USB/COM | Power Input: | DC 9V~36V |
| Operating System: | Windows 10, Linux, Ubuntu, Debian | Working Time: | 7*24h |
| High Light: | I5 Rugged Embedded Computer,Fanless Rugged Embedded Computer,Embedded industrial single board computer |
||
Feature

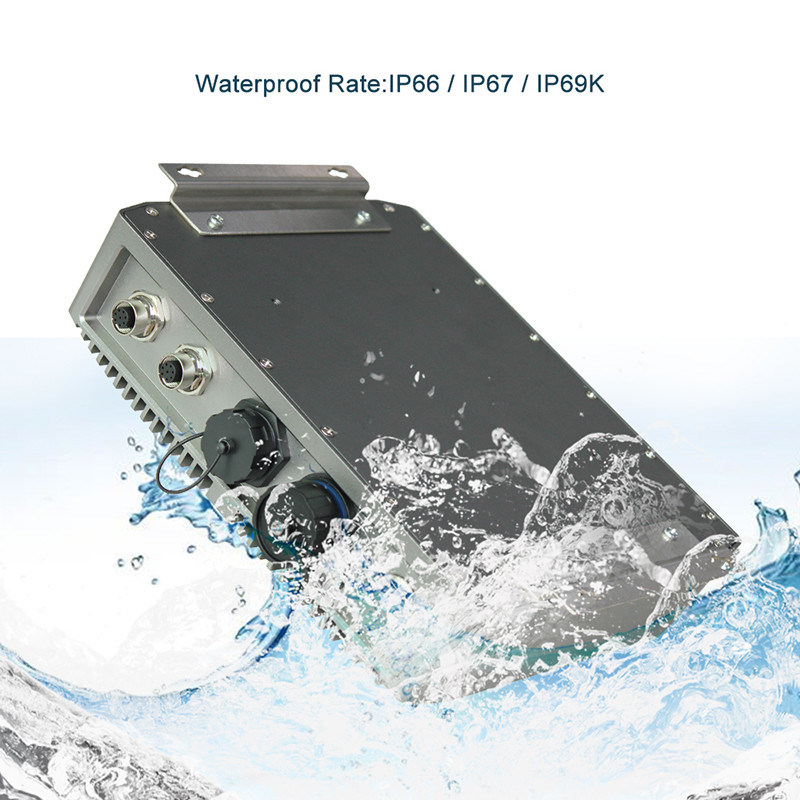

The waterproof box pc combines with fanless design and IP66/IP67 rating, the pc expands the limitation of hardware to environment where the normal embedded computer are not suitable to be used. The computers are a great solution for food and beverage processing, outdoor digital signage, surveillance, Military & defense, and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
2. DDR4L 2400MHz 4GB, Up to 32GB
3. Single display supported by 1x HDMI
4. M12 I/O Connectors optional: VGA/HDMI/LAN/USB/COM
5. Full system IP67 level dustproof & waterproof
6. DC9V～36V wide voltage input
7. -20°C ~70°C extended operating temperature
8. Fully sealed and fanless design, full IP67 waterproof, Sealed I/O with cable set included.
| EFIC-6000PB | ||
| System | CPU | Intel Core i5-8265U Quad core 1.6GHz |
| L3 Cache | 6MB | |
| Chipsets | Intel 8th Skylake-U SOC | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 610 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows 10, Linux, Ubuntu, Debian | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP67 / IP69K | |
| Product Dimension | 220 x 180 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 9V~36V | |
| Power Consumption | ≦20W | |
Advantages
1. TPM 2.0 Hardware Security Encryptions
Fanless Mini Computer is equipped with TPM 2.0 to safeguard the device, data, and transmissions from malicious actors. TPM 2.0 is an advanced crypto-processor that offers hardware-based protection that is tamper-resistant
