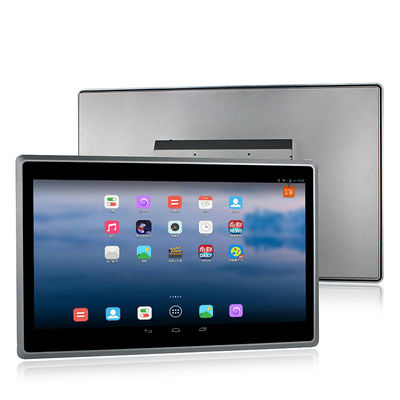

Product Details:
|
Waterproof Rating: | Front IP65 | Size: | 24" FHD Led |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | ARM RK3288 Cortex-A17 1.8G |
Memory: | 2GB/4GB/8GB ( Optional) | Harddisk: | EMMC 8G/16G ( Optional) |
I/O Interface: | VGA/HD-MI/LAN/USB/RS232/RS485 | Touchscreen: | Capacitive Touch / Resistive |
High Light: | VEAS Android Touch Panel PC,EMMC 8G Android Touch Panel PC,250cd/M2 Wall Mount Panel PC |
Feature
The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.
1. 24" TFT LED with PCAP Touch
2. ARM RK3288 Cortex-A17 1.8 GHz
3. Multi ports for option: VGA/HDMI/LAN/USB/COM
4. DC12V Input, (+9V~36V) wide voltage input optional
5. -10°C ~ 60°C extended operating temperature
6. IP65 Compliant Front Panel
PPC-R024WAC | ||
System | CPU | ARM RK3288 Cortex-A17 1.8 GHz |
Memory | 2G DDR3 | |
Storage | EMMC 8G(16G Optional) | |
GPU | ARM Mali-T764 | |
Lan | RTL 8211E 1000 Lan | |
Audio | RTL ALC662 | |
Operation System | Android 5.1 / 7. 1 /9.0 / Ubuntu 12.04 | |
I / O | H-DMI | 1 x H-DMI |
LAN | 1 x LAN | |
USB | 4 x USB 2.0 | |
COM | 2 x RS232 | |
Audio | 1 x AUDIO | |
Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
LCD Panel | Panel Size | 24" FHD Led |
Resolution | 1920 x 1080 | |
Aspect Ratio | 16:9 | |
Display Brightness | 250cd/m2 | |
Contrast Ratio | 3000:1 | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | Multi-Touch PCAP |
Transmittance | >90% | |
Response Time | <5ms | |
Surface Hardness | ≥7H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3000W | |
Institutional | Material | High-strength Al-alloy, support IP65 |
Color | Gray | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP65 | |
Product Dimension | 594 x 377 x 58 mm | |
Cut-out Size | 577 x 359 mm | |
Packing Size | 730 x 200 x 530 mm | |
Gross Weight | 16 KG | |
Power and Environment | Operating Temperature | -10~60°C |
Storage Temperature | -20~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC12V / optional(+9V~36V) | |
Power Consumption | ≦20W |
Competitive Advantages:
Well and High Quality Control;
Prompt Delivery;
Competitive Price;
Earth-friendly Products;
Small Trial Order Acceptable;
OEM/ODM service welcome.
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
