Product Details:
|
| Waterproof Rating: | IP66 / IP69K | Panel Size: | 15" Led |
|---|---|---|---|
| Resolution: | 1024 X 768 | CPU: | Intel Core I3-6100U Dual Core 2.4GHz |
| Memory: | 4GB, Up To 16GB | HDD: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| I/O Interface: | VGA/HD-MI/LAN/USB/RS232 | Touchscreen: | Capacitive / Resistive Touch Optional |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| Highlight: | IP69K Stainless Steel Panel PC,Food Industry Stainless Steel Panel PC,304 Stainless Steel 15 panel pc |
||
Features

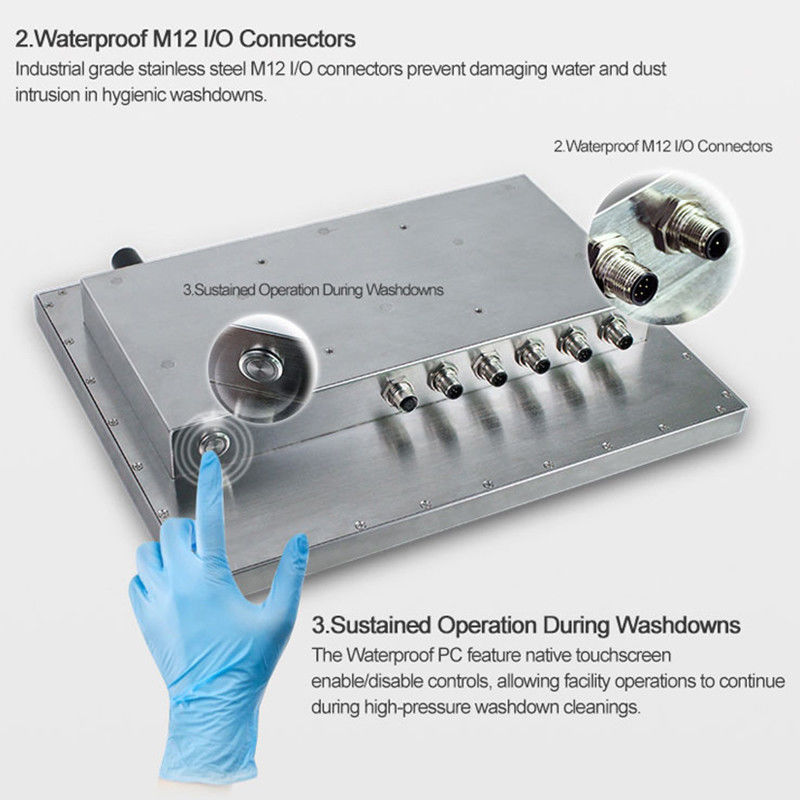

This waterproof industrial panel PC is made of complete stainless steel, which is anti-rust and anti-corrosion. Fully sealed waterproof IP69K with various waterproof IO Cables included. It's the best choice for wet locations such as food processing line, car washing shop, agricultural industry, etc.
1.15" TFT LED, resolution 1024*768
2. Adopt 10 points capacitive touch screen, high precision, durable, anti-interference.
Applications
marine/Sailing boat
medical equipment
humid production equipment
food Industry
chemical manufacturing
outdoor applications
| WPC-O015SCC | ||
| System | CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15" Led |
| Resolution | 1024 x 768 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 72% NTSC | |
| Response Time | 30 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Stainless Steel SUS04 |
| Color | Polished brushed surface | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 360 x 284 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 9.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Applications
The stainless steel PCs are suitable for humid or watered environment, such as food processing industry, catering, production workshop, outdoor, or some other harsh environment.
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.
3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.
4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
