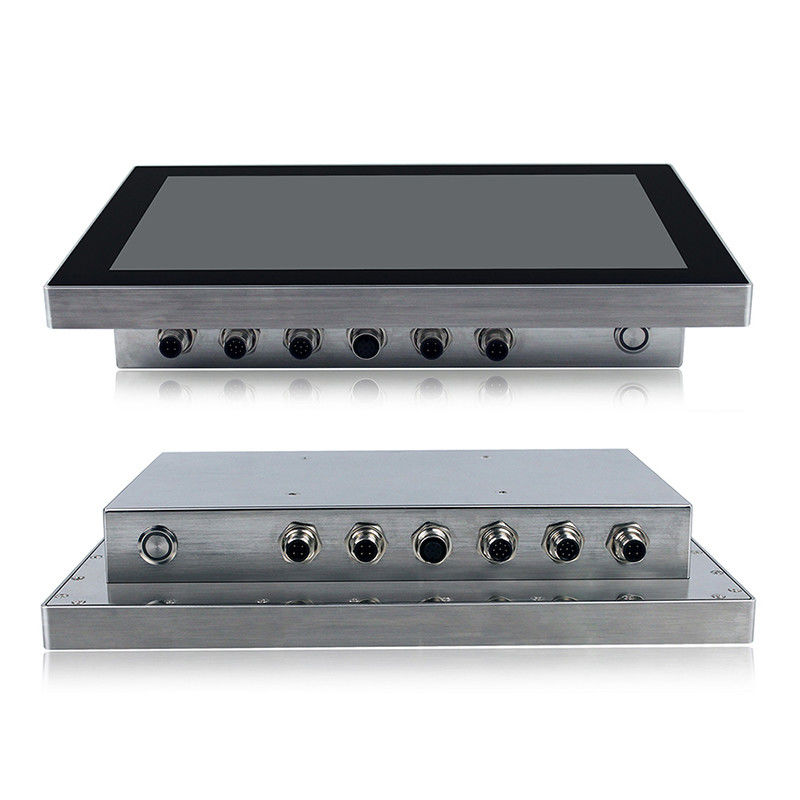

Stainless Steel 304 12in IP69K Panel PC Waterproof IO Cables
Outdoor 12" Food Panel Pc Stainless Steel 304 Waterproof IO Cables 1280 X 800 Feature The stainless steel PCs are suitable for humid or watered environment, such as food processing industry, catering, production workshop, outdoor, or some other harsh environment. Features 1. 12" TFT LED with capacitive touch 2. Intel Celeron Quad Core J1900 2.0GHz 3. 1x DDR3L 1333MHz 4GB. Max up to 16GB 4. M12 I/O Connectors optional:HDMI/LAN/USB/COM 5. Full system IP66/IP69K with Stainless
Stainless Steel 304 IP69K Panel PC
,IO Cables IP69K Panel PC
,12in flat panel computer
Outdoor 12" Food Panel Pc Stainless Steel 304 Waterproof IO Cables 1280 X 800
Feature
The stainless steel PCs are suitable for humid or watered environment, such as food processing industry, catering, production workshop, outdoor, or some other harsh environment.
Features
1. 12" TFT LED with capacitive touch
2. Intel Celeron Quad Core J1900 2.0GHz
3. 1x DDR3L 1333MHz 4GB. Max up to 16GB
4. M12 I/O Connectors optional:HDMI/LAN/USB/COM
5. Full system IP66/IP69K with Stainless Steel SUS304 construction
6. DC12V~24V Input (+9V～36V wide voltage optional)
7. -20°C ~ 70°C extended operating temperature
| WPC-J012WCC | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) | |
| USB | 4 x USB ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 12.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 700:1 | |
| Colors | 16.7M , 76% NTSC | |
| Response Time | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Stainless Steel SUS04 |
| Color | Polished brushed surface | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 312 x 214 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 7.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦25W | |
Packing List
WPC-J012WCC Waterproof Panel PC
Waterproof VGA/RS232/LAN/USB/COM cables
1x Utility DVD Driver
1x Power Adaptor
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
