Product Details:
|
IP Rating: | IP65 | Led Panel: | 17" Led |
---|---|---|---|
Resolution: | 1280 X 1024 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
RAM: | 4GB, Up To 8GB | Harddisk: | 64G SSD / (128G / 250G / 500G SSD) Optional |
I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Resistive Touch / Capacitive(optional) |
High Light: | 17 Inch industrial touch panel monitor,Rugged industrial touch panel monitor,X86 industrial control computer |
Feature

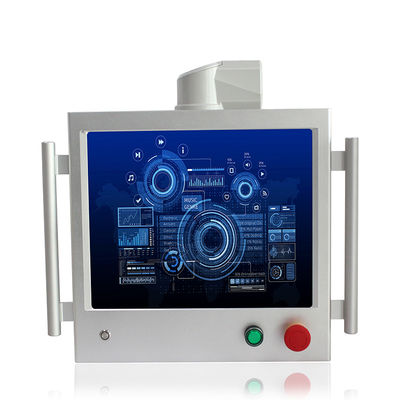

HMI Touch Panel for use in harsh industrial environments
The display is IP65 protected and ideally suited for use in harsh industrial environments. The design of the touch area and button field is designed to avoid unnecessary dirt edges. Depending on the display size, between 6 and 8 pushbuttons can be integrated as indicator lights or operating buttons. Thanks to the interchangeable front frame, the push-buttons can be retrofitted directly at the customer's premises while still in operation.
If required, an RFID reader, a key switch or an IP65 protected USB interface with protective cap can also be used. All buttons can be freely assigned and are either directly wired or connected to the central control system via EtherCAT.
1. 17" TFT LED, resolution 1280 x 1024, resistive touch
DCP-J017SBR | ||
System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
L2 Cache | 2MB | |
Chipsets | Intel Bay Trail SOC | |
Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics | |
Network | Intel 82583V 1000 Mbps port | |
Audio | Realtek ACL662 Audio controller | |
Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
I / O | VGA | 1 x VGA / 1 x HD-MI |
LAN | 1 x LAN | |
USB | 3 x USB2.0 / 1 x USB3.0 | |
IDEC Switch | Start / Select / Reset / Key/ Stop switch ( Optional ) | |
Wireless Network | WiFi + Bluetooth ( Optional ) | |

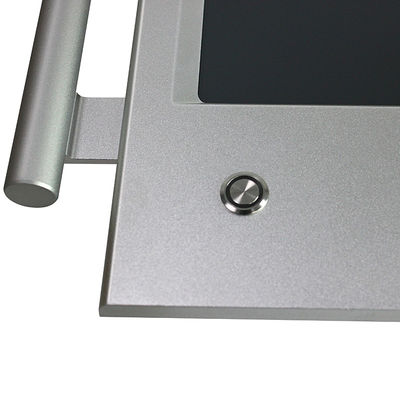

Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 17" Led |
Resolution | 1280 x 1024 | |
Aspect Ratio | 5:4 | |
Display Brightness | 400 cd/m2 | |
Contrast Ratio | 1000:1 | |
Colors | 16.7M , 90% NTSC | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | 5 wire resistive touch |
Transmittance | >85% | |
Response Time | <5ms | |
Surface Hardness | ≥3H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 1000W | |
Institutional | Material | Aluminum Alloy Shell |
Color | Silver / Black ( optional ) | |

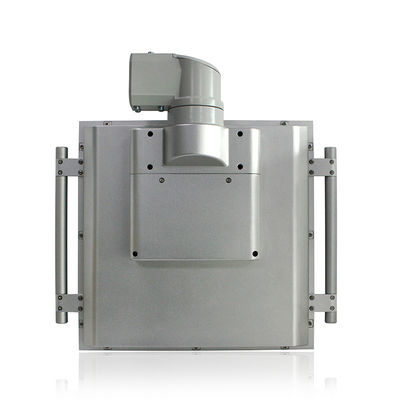

VESA Mounting | Cantilever bracket | |
Waterproof Rate | IP65 | |
Product Dimension | 400 x 390 x 155 mm | |
Cut-out Size | / | |
Packing Size | 500 x 340 x 450 mm | |
Gross Weight | 16.0 KG | |
Power and Environment | Operating Temperature | -10~60°C |
Storage Temperature | -20~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC 12V~24V / optional(+9V~36V) | |
Power Consumption | ≦30W |
1. Fanless and sealed enclosure,dust proof and no maintenance required during operation.
2. Optimized for Industrial Panel Applications
3. Different mounting options as requests
4. User-defined function buttons
5. Customized buttons are possible in small batch production
6. Wide Work Temperature range
Operation Panel are integrated with wide temperature components; system operating temperature supports from -20 up to +70°C, suitable for major industrial applications.
Application
Industry 4.0
Rail Transit
Equipment Control Cabinet
Industrial Equipment Control
Cabin Driving
Vision Detection
FAQ
Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
