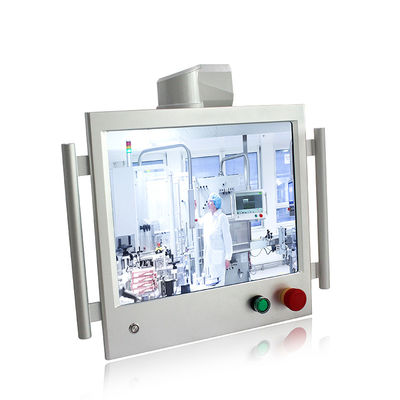

LCD Industrial Touch Screen Pc , IP65 17" Industrial Touch Monitor
IP65 Weatherproof Wide Temperature 17" LCD Industrial Resistive Touch Panel Control System Feature HMI Touch Panel for use in harsh industrial environments The display is IP65 protected and ideally suited for use in harsh industrial environments. The design of the touch area and button field is designed to avoid unnecessary dirt edges. Depending on the display size, between 6 and 8 pushbuttons can be integrated as indicator lights or operating buttons. Thanks to the
LCD industrial touch screen pc
,17" industrial touch screen pc
,IP65 industrial touch monitor
IP65 Weatherproof Wide Temperature 17" LCD Industrial Resistive Touch Panel Control System
Feature
HMI Touch Panel for use in harsh industrial environments
The display is IP65 protected and ideally suited for use in harsh industrial environments. The design of the touch area and button field is designed to avoid unnecessary dirt edges. Depending on the display size, between 6 and 8 pushbuttons can be integrated as indicator lights or operating buttons. Thanks to the interchangeable front frame, the push-buttons can be retrofitted directly at the customer's premises while still in operation.
If required, an RFID reader, a key switch or an IP65 protected USB interface with protective cap can also be used. All buttons can be freely assigned and are either directly wired or connected to the central control system via EtherCAT.
1. 17" TFT LED, resolution 1280 x 1024
2. 5 wire resistive touch screen, high precision, durable, anti-interference.
3. Intel Celeron Dual Core 3855U 1.6GHz
4. Multi ports for option: VGA/HD-MI/LAN/USB/COM
5. Operating System: Win7/8/10/Linux/Ubuntu
6. DC12V~24V Input,(+9V～36V)wide voltage input optional
| DCP-M017SBR | ||
| System | CPU | Intel Celeron Dual Core 3855U 1.6GHz |
| L3 Cache | 2MB | |
| Chipsets | Intel Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 510 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI |
| LAN | 1 x LAN | |
| USB | 2 x USB2.0 / 2 x USB3.0 | |
| IDEC Switch | Start / Select / Reset / Key/ Stop switch ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 17" Led |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 5:4 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 90% NTSC | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | Cantilever bracket | |
| Waterproof Rate | IP65 | |
| Product Dimension | 400 x 390 x 155 mm | |
| Cut-out Size | / | |
| Packing Size | 500 x 340 x 450 mm | |
| Gross Weight | 16.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Advantages:
1. Full IP65 dustproof/waterproof
2. Capacitive touch screen
3. High quality operation key and indication switch
4. Connectors supporting a variety of cantilever profiles
5. Simple and efficient site installation and maintenance, the core part can be seen
6. Front panel operation key/indication switch are easy to connect with the controller
7. Front panel keys can customize LOGO, text, color
8. Flexible expansion of USB, host switch, WIFI and custom functions
Automation Touch Panel for optimum machine operation
The Automation Panel allows extremely flexible operation of your machines thanks to the integrated push-button strip.
Thanks to the numerous interfaces, the panel can be optimally adapted to your requirements.
Configuration of the button assignment
The use of a push-button strip increases the possibilities for machine operation functionality even further. With the exception of the emergency stop, the push-buttons can be individually assigned according to your requirements. You define which colour the buttons should have and which labelling is to be applied. An RFID reader and a protected USB socket are available on the left side. On request, we can integrate your company logo into the button strip.
