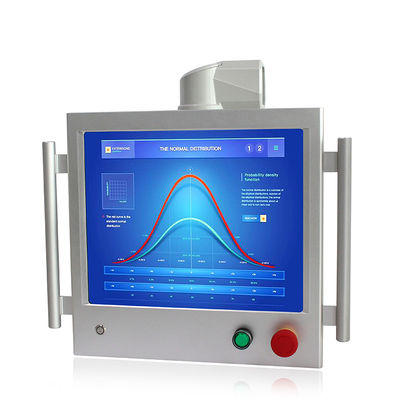

Intel Core I3 HMI Panel PC Touchscreen Fanless For Cantilever
OEM/ODM Intel Core I3 Button-Integrated HMI Touchscreen Control Panel Pc For Cantilever InstallationFeatureHMI Touch Panel for use in harsh industrial environmentsThe display is IP65 protected and ideally suited for use in harsh industrial environments. The design of the touch area and button field is designed to avoid unnecessary dirt edges. Depending on the display size, between 6 and 8 pushbuttons can be integrated as indicator lights or operating buttons. Thanks to the
Intel Core HMI Panel PC
,Cantilever HMI Panel PC
,I3 fanless industrial panel pc
OEM/ODM Intel Core I3 Button-Integrated HMI Touchscreen Control Panel Pc For Cantilever Installation
Feature
HMI Touch Panel for use in harsh industrial environments
The display is IP65 protected and ideally suited for use in harsh industrial environments. The design of the touch area and button field is designed to avoid unnecessary dirt edges. Depending on the display size, between 6 and 8 pushbuttons can be integrated as indicator lights or operating buttons. Thanks to the interchangeable front frame, the push-buttons can be retrofitted directly at the customer's premises while still in operation.
If required, an RFID reader, a key switch or an IP65 protected USB interface with protective cap can also be used. All buttons can be freely assigned and are either directly wired or connected to the central control system via EtherCAT.
1. 17" TFT LED, resolution 1280 x 1024
2. 5 wire resistive touch screen
3. Intel Core i3-6100U Dual Core 2.4GHz
4. Multi ports for option: VGA/HD-MI/LAN/USB/COM
5. Operating System: Win7/8/10/Linux/Ubuntu
6. DC12V~24V Input,(+9V～36V)wide voltage input optional
| DCP-O017SBR | ||
| System | CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L3 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI |
| LAN | 1 x LAN | |
| USB | 2 x USB2.0 / 2 x USB3.0 | |
| IDEC Switch | Start / Select / Reset / Key/ Stop switch ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 17" Led |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 5:4 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 90% NTSC | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 wire resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |

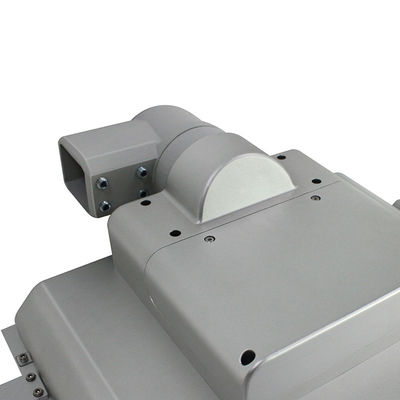

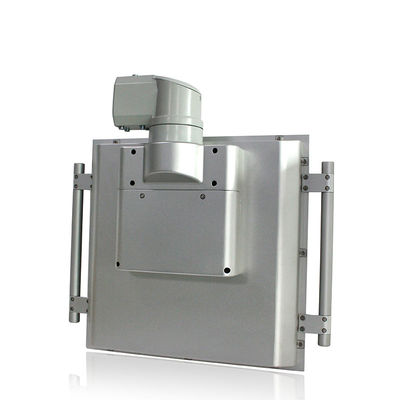

| VESA Mounting | Cantilever bracket | |
| Waterproof Rate | IP65 | |
| Product Dimension | 400 x 390 x 155 mm | |
| Cut-out Size | / | |
| Packing Size | 500 x 340 x 450 mm | |
| Gross Weight | 16.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Packing List
1x DCP-O017SBR Series Device Control Panel
1x Utility DVD Driver
1x Power Adaptor
Secure protection for Automation Touch Panel
As standard, our Automation Panels are equipped with IP65 protection on the front and rear and prevent the ingress of dirt or moisture. This makes the panels ideally suited for use in harsh industrial environments and withstands even the toughest environmental conditions.
Advantages of Automation Touch Panel solutions
1. Robust construction enables use even in demanding industrial environments.
2. Additional operating options through freely assignable buttons.
3. IP65 sealing lip prevents ingress of dirt and liquids.
Competitive Advantages:
Well and High Quality Control;
Prompt Delivery;
Competitive Price;
Earth-friendly Products;
Small Trial Order Acceptable;
OEM/ODM service welcome.
