Product Details:
|
| IP Rate: | IP65 Front | Size: | 17" |
|---|---|---|---|
| Touch Screen: | Capacitive Touch | Resolution: | 1280 X 1024 |
| Aspect Ratio: | 5:4 | Viewing Angle: | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) |
| Display Brightness: | 400 Cd/m2 | I/O: | 1*VGA, 1*HDMI, 1*DVI, 1*USB |
| Highlight: | 240V Capacitive Touch Monitor,350cd Capacitive Touch Monitor |
||
Feature
The industrial touch monitor is ideal for applications such as Industry 4.0, Rail Transit, Equipment Control Cabinet, Industrial Equipment Control, Cabin Driving, Vision Detection and CNC Control Panel
2. Embedded / VESA mounting
3. HDMI/VGA/DVI multiple signals input supported
4. DC12V Input, (+9V～36V) wide voltage input optional
5. -20°C ~ 70°C extended operating temperature
6. IP65 Compliant Front Panel
| PM-H017SAC | ||
| LCD Panel | Panel Size | 17" LED |
| Resolution | 1280 x 1024 | |
| Aspect Ratio | 5:4 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 74% NTSC | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| I / O | VGA | 1 x VGA |
| H-DMI | 1 x H-DMI | |
| DVI | 1 x DVI | |
| USB | 1 x Touch USB | |
| Other I/O Interface | 1 x OSD Control Key | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |

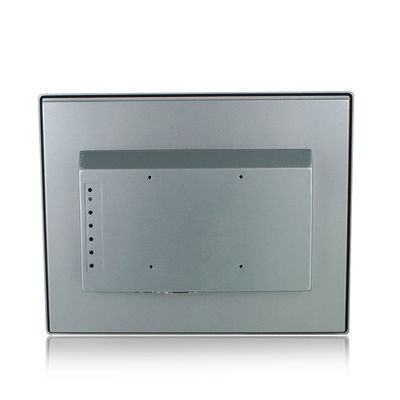

| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 395 x 327 x 55 mm | |
| Cut-out Size | 381 x 313 mm | |
| Packing Size | 500 x 180 x 450 mm | |
| Gross Weight | 8 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V / optional(+9V~36V) | |
Features

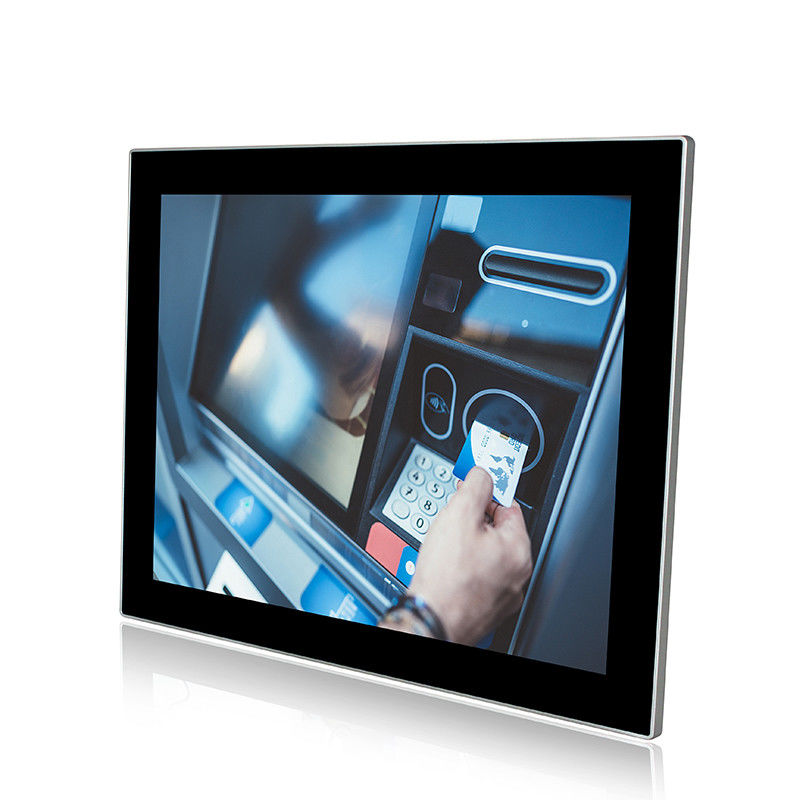

1. 17-inch touch monitor
2. Adopt multi-touch capacitive touchscreen
3. Industrial LCD panel, wide viewing angle, true color
4. 1000nits, 1500nits brightness optional
5. Sturable rugged enclosure which is for harsh environment
OEM/ODM
1. size from 7''-24'' available
2. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
