Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM

Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM
Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM

Large Image :  Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS
Model Number: DCP-O017SBR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM

Description
IP Rating: IP65 Led Panel: 17" Led
Resolution: 1280 X 1024 CPU: Intel Core I3-6100U Dual Core 2.4GHz
RAM: DDR4L 2133MHz 4GB, Up To 16GB Harddisk: 64G SSD / (128G / 250G / 500G SSD) Optional
I/O Interface: VGA/HD-MI/LAN/USB/COM Touchscreen: Resistive Touch / Capacitive(optional)
High Light:

HMI Panel PC Touch Screen

,

ODM HMI Panel PC

,

OEM 17 panel pc

Button Integrated HMI 17" Panel Pc Touch Screen Device Control OEM ODM

Feature
HMI Touch Panel for use in harsh industrial environments
The display is IP65 protected and ideally suited for use in harsh industrial environments. The design of the touch area and button field is designed to avoid unnecessary dirt edges. Depending on the display size, between 6 and 8 pushbuttons can be integrated as indicator lights or operating buttons. Thanks to the interchangeable front frame, the push-buttons can be retrofitted directly at the customer's premises while still in operation.
If required, an RFID reader, a key switch or an IP65 protected USB interface with protective cap can also be used. All buttons can be freely assigned and are either directly wired or connected to the central control system via EtherCAT.

1. 17" TFT LED, resolution 1280 x 1024

2. 5 wire resistive touch screen


3. Intel Core i3-6100U Dual Core 2.4GHz

4. Multi ports for option: VGA/HD-MI/LAN/USB/COM

5. Operating System: Win7/8/10/Linux/Ubuntu

6. DC12V~24V Input,(+9V~36V)wide voltage input optional

7. 1000nits, 1500nits sunlight readable optional

DCP-O017SBR
SystemCPUIntel Core i3-6100U Dual Core 2.4GHz
L3 Cache3MB
ChipsetsIntel 6th Skylake-U SOC
MemoryDDR4L 2133MHz 4GB, Up to 16GB
Harddisk1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
GraphicsIntel HD Graphics 520
NetworkIntel® i211 1000 Mbps port
AudioRealtek ACL662 Audio controller
Operation SystemWindows7 / 8 / 10, Linux, Unix, QNX
I / OVGA1 x VGA / 1 x HD-MI
LAN1 x LAN
USB2 x USB2.0 / 2 x USB3.0

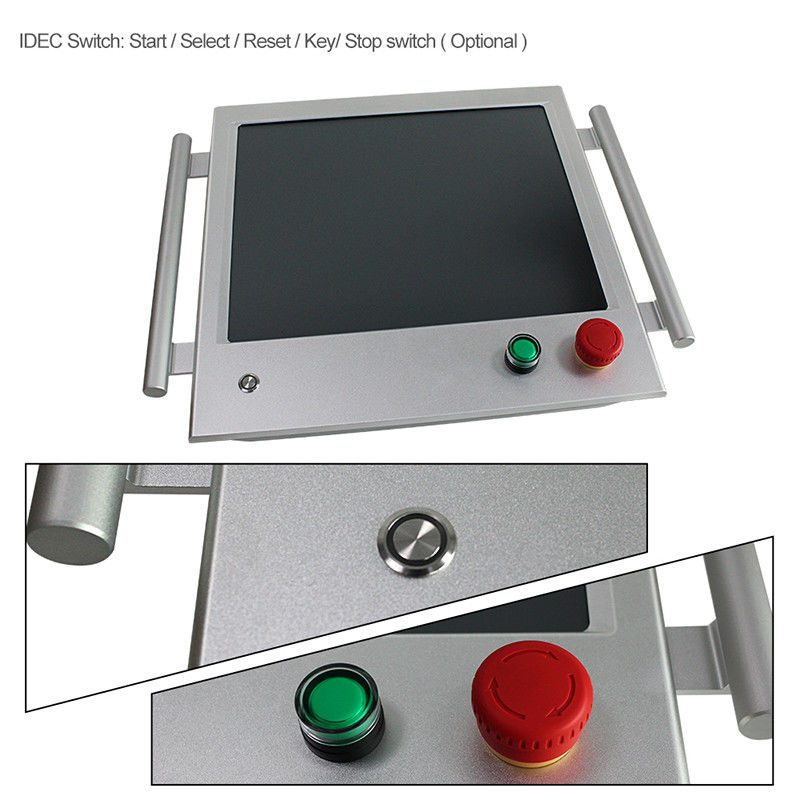

IDEC SwitchStart / Select / Reset / Key/ Stop switch ( Optional )
Wireless NetworkWiFi + Bluetooth ( Optional )
Other I/O Interface1 x Power Switch
LCD PanelPanel Size17" Led
Resolution1280 x 1024
Aspect Ratio5:4
Display Brightness400 cd/m2
Contrast Ratio1000:1
Colors16.7M , 90% NTSC
Backlight Lifetime50000 Hr (min.)
Viewing Angle88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
Touch screenTouch Screen Type5 wire resistive touch
Transmittance>85%
Response Time<5ms
Surface Hardness≥3H
Supply Voltage5.0V DC
Touch Life≧ 1000W
InstitutionalMaterialAluminum Alloy Shell
ColorSilver / Black ( optional )

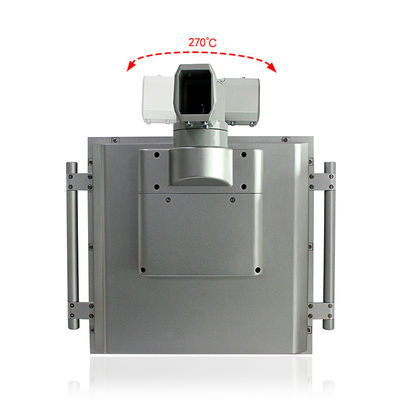

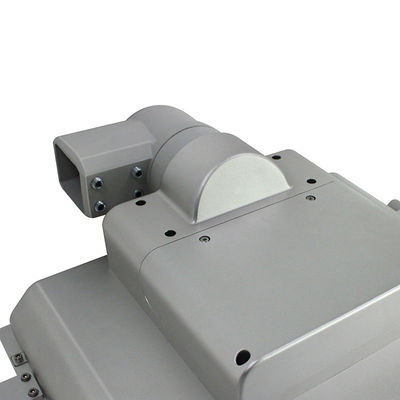

VESA MountingCantilever bracket
Waterproof RateIP65
Product Dimension400 x 390 x 155 mm
Cut-out Size/
Packing Size500 x 340 x 450 mm
Gross Weight16.0 KG
Power and EnvironmentOperating Temperature-10~60°C
Storage Temperature-20~80°C(-22~176°F)
Relative Humidity5%~95%@40°C, non-condensing
Vibration Range5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power SupplyAC 100 - 240V~50/60Hz,1.5A
Working VoltageDC 12V~24V / optional(+9V~36V)
Power Consumption≦30W


Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM 0Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM 1
Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM 2
Button Integrated 17in HMI Panel PC Touch Screen Device Control OEM ODM 3



Packing List

1x DCP-O017SBR Series Device Control Panel
1x Utility DVD Driver
1x Power Adaptor
