Product Details:
|
| IP Rating: | IP69K | Size: | 12.1" Led |
|---|---|---|---|
| Resolution: | 1280 X 800 | Processor: | Intel Core I3-6100U Dual Core 2.4GHz |
| RAM: | 4GB / 8GB / 16GB | HDD: | 32G / 64G / 128G / 250G / 500G SSD Optional |
| Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive / Resistive Touch |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | SUS304 Waterproof Touch Screen PC,450cd/M2 Waterproof Touch Screen PC,Meat Industry Industrial Touch Monitor |
||
Feature

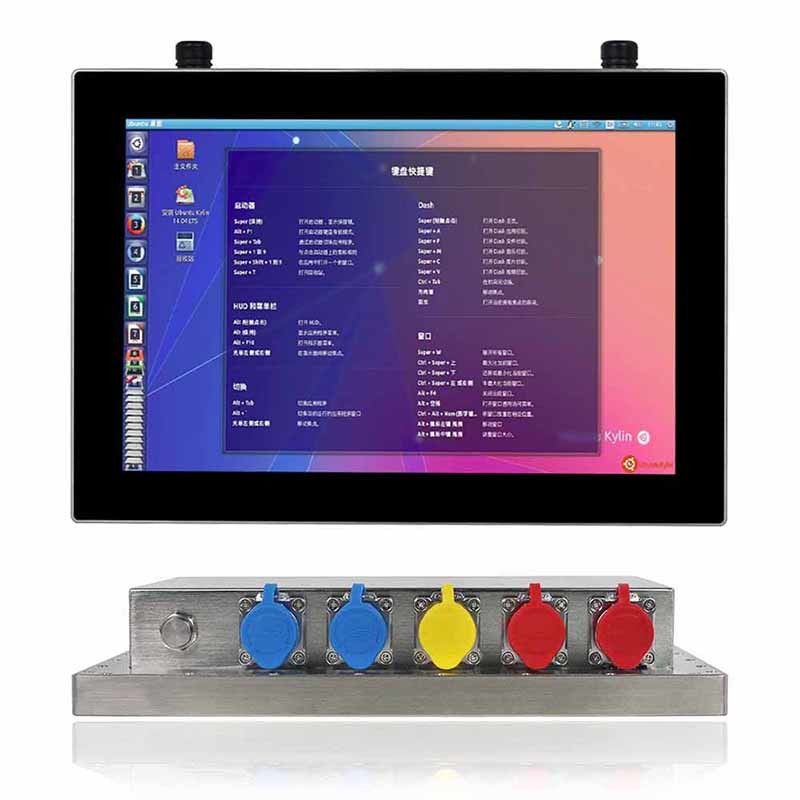

The WPC series of waterproof touch screen computers developed by QYT are specially designed for industrial IoT applications with strict hygiene requirements. It’s with IP66/IP69K protection grade SUS304 stainless steel housing. The industrial-grade I/O connectors can prevent sanitary washing damage and dust from entering. It eliminates the damage caused by washing.
The IP69K protection grade is widely used in food, beverage, meat, pharmaceutical and medical industries, and can withstand the washing in sanitary and aseptic environments.
1. 12" TFT LED with 10 points capacitive touch
2. Intel Core i3-6100U Dual Core 2.4GHz
3. LP-24 I/O Industrial connectors: VGA/LAN/USB/COM/RS232/RS485
4. Full system IP66/IP69K with Stainless Steel SUS304 construction
5. DC12V~24V Input (+9V～36V wide voltage optional)
6. Fully sealed and fanless design, full IP69K waterproof, Sealed I/O with cable set included.
7. CE, FCC, RoHS, IP69K Compliance
8. Wide range: -20°C to 70°C working temperature range.
| WPC-O012WCC | ||
| System | CPU | Intel Core i3-6100U Dual Core 2.4GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) | |
| USB | 4 x USB ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 12.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 450cd/m2 | |
| Contrast Ratio | 700:1 | |
| Colors | 16.7M , 76% NTSC | |
| Response Time | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Stainless Steel SUS304 |
| Color | Polished brushed surface | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 312 x 214 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 7.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦25W | |
Packing List
WPC-O012WCC-LP24 Waterproof Panel PC
Waterproof VGA/RS232/LAN/USB/COM cables
1x Utility DVD Driver
1x Power Adaptor
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.
3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.
4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
