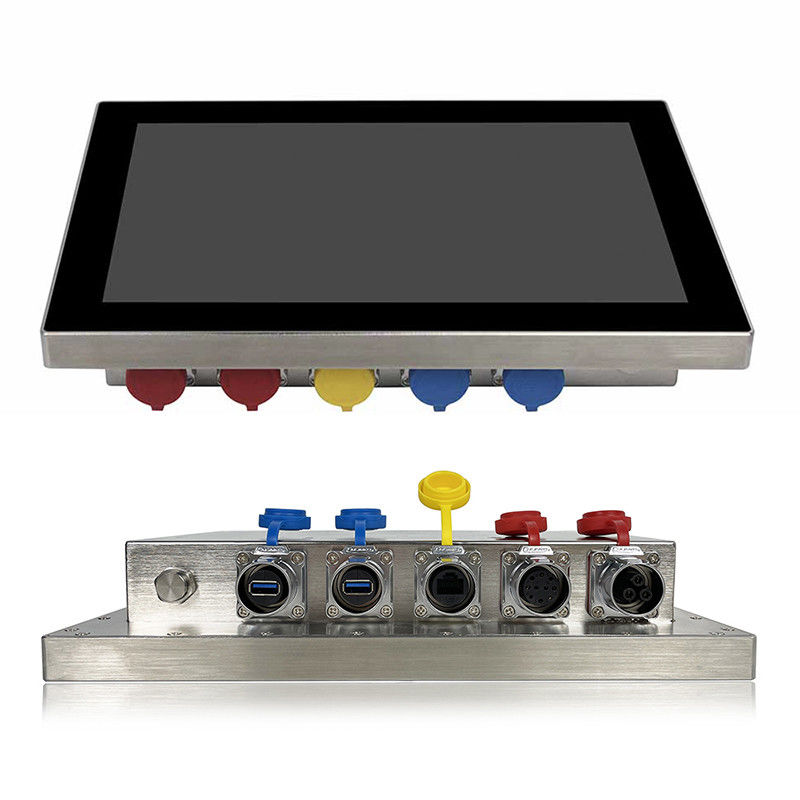

SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc

SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc
SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc

Large Image :  SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP66, IP69K
Model Number: WPC-P012WCC-LP24
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-7 Work Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000 Set/Sets per Month

SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc

Description
IP Rating: IP69K Size: 12.1" Led
Resolution: 1280x800 CPU: Intel Core I5-6200U Dual Core 2.5GHz
RAM: DDR4L 2133MHz 4GB, Up To 16GB HDD: 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
Interface: VGA/HD-MI/LAN/USB/COM Touchscreen: Capacitive / Resistive Touch
Power Input: DC 12V~24V / DC 9V~36V Optional Operating System: Win7/8/10/Linux/Ubuntu
High Light:

IP69K Waterproof HMI Panel PC

,

SUS304 HMI Panel PC

,

1280x800 Stainless Steel Panel Pc

High Pressure IP69K Waterproof HMI Panel PC 12" with stainless steel 304

Feature

The inox PC is particularly suitable for applications in food & beverage, chemical and pharmaceutical markets. The stainless-steel chassis and a true flat frontal with Multitouch Projected Capacitive touchscreen, assure protection from dirt, water, scratches and an intensive use by the operator, even in the harshest areas.



1. 12" TFT LED with 10 points capacitive touch



2. Intel Core i5-6200U Dual Core 2.5GHz



3. LP-24 I/O Ports: VGA/LAN/USB/COM/RS232/RS485



4. Full IP66/69K sealed to providing 360 degree protection



5. DC12V~24V Input (+9V~36V wide voltage optional)

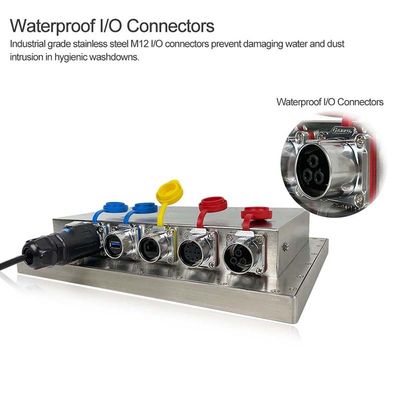

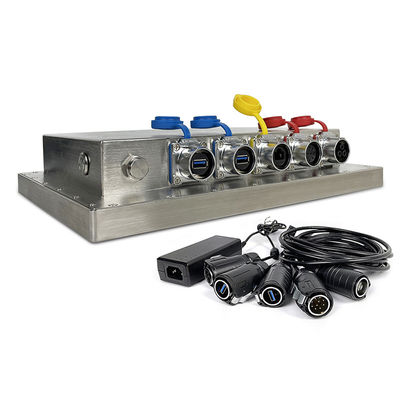

6. Fully sealed and fanless design, full IP69K waterproof, Sealed I/O with cable set included.



7. CE, FCC, RoHS, IP69K Compliance



8. Industrial LCD panel is wide viewing angle with high nits and true color.



WPC-P012WCC
System CPU Intel Core i5-6200U Dual Core 2.5GHz
L2 Cache 3MB
Chipsets Intel 6th Skylake-U SOC
Memory DDR4L 2133MHz 4GB, Up to 16GB
Harddisk 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 520
Network Intel® i211 1000 Mbps port
Audio Realtek ACL662 Audio controller
Operation System Windows7 / 8 / 10, Linux, Unix, QNX
I / O VGA 1 x VGA / 1 x HD-MI ( Optional )
LAN 2 x LAN ( Optional )
USB 4 x USB ( Optional )
COM 2 x RS232 ( Optional )
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
LCD Panel Panel Size 12.1" Led
Resolution 1280 x 800
Aspect Ratio 16:10
Display Brightness 450 cd/m2
Contrast Ratio 700:1
Colors 16.7M , 76% NTSC
Response Time 50000 Hr (min.)
Viewing Angle 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D )
Touch screen Touch Screen Type 10 point capacitive touch
Transmittance >90%
Response Time <5ms
Surface Hardness ≥6H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional Material Stainless Steel SUS304
Color Polished brushed surface
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP66 / IP69K
Product Dimension 312 x 214 x 55 mm
Cut-out Size /
Packing Size 450 x 170 x 350 mm
Gross Weight 7.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 12V~24V / optional(+9V~36V)
Power Consumption ≦25W




SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc 0SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc 1SUS304 IP69K Waterproof HMI Panel PC 12" 1280x800 Stainless Steel Panel Pc 2




Product Advantage:

1. It can reduce product and labor cost, with the unparalleled accuracy and repeatability;



2. It can ensure the quality and process control;



3. Superior information processing capabilities and advanced computer control systems;



4. The application of advanced robots and the integration of vision technology;



5. Safer and more reliable hygiene requirements.



FAQ

1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.

2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.

3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.

4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.

5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.

6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
