Product Details:
|
IP Rating: | Front IP65 | Led Panel: | 17.3" LED |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | Intel Core I5-8265U Quad Core 1.6GHz |
Memory: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
TPM 2.0: | Yes | Working Voltage: | DC IN 9V~36V |
High Light: | VESA Fanless Touch Panel PC,45W Fanless Touch Panel PC,1000nits Touch Screen Panel Computers |
Feature

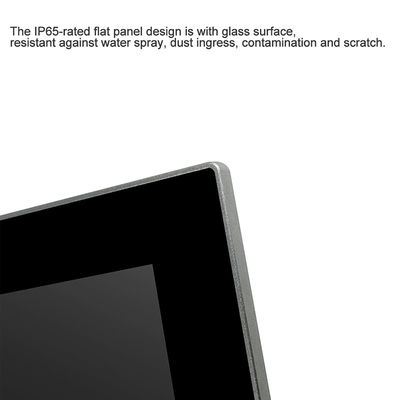

IP65 Front Panel:
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.
TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
Wide Working Voltage:
This machine supports DC 9V~36V wide voltage input, with overcurrent, overvoltage and reverse connection protection
1. 17.3" TFT LED with PCAP Touch
2. Intel Core i5-8265U Quad Core 1.6GHz
3. 2xLAN, 2xRS232/422/485, 8KV Static Electricity & 600W TVS Surge Protection
4. Built-in TPM2.0 for Hardware-based Security
5. Wide voltage DC 9V~36V, with overcurrent, overvoltage and reverse connection protection
6. IP65 Compliant Front Panel
7. 1000nits, 1500nits sunlight readable optional
PPC-5173WAC | ||
System | CPU | Intel Core i5-8265U Quad Core 1.6GHz |
L3 Cache | 6MB | |
Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
Graphics | Intel HD Graphics 620 | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows 10 / Linux, Ubuntu, Debian | |
I / O | HDMI | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 4 x USB 3.0 | |
COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
Other I/O Interface | 1 x Power Switch | |
LCD Panel | Panel Size | 17.3" LED |
Resolution | 1920 x 1080 | |
Aspect Ratio | 16:9 | |
Display Brightness | 400 cd/m2 | |
Contrast Ratio | 600:1 | |
Backlight Lifetime | 50000 Hr (min.) | |
Viewing Angle | 80 / 80 / 60 / 80 (CR≥10) ( L / R / U / D ) | |
Touch screen | Touch Screen Type | Multi-Touch PCAP |
Transmittance | >90% | |
Response Time | <5ms | |
Surface Hardness | ≥7H | |
Supply Voltage | 5.0V DC | |
Touch Life | ≧ 3000W | |
Institutional | Material | High-strength Al-alloy, support IP65 |
Color | Gray | |
VESA Mounting | VESA: 100 x 100 mm | |
Waterproof Rate | IP65 | |
Product Dimension | 441 x 274 x 60 mm | |
Cut-out Size | 427 x 260 mm | |
Packing Size | 500 x 180 x 450 mm | |
Gross Weight | 8 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -30~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦45W |
Product Advantages:
1. High quality products
2. Factory reasonable prices
3. Sensitive touch screen
4. CE/FCC/RoHS certificates passed
5. OEM/ODM service available
6. Professional and Effective Sales Team serves you.
Applications
The industrial panel pc can be widely used in the communications and control terminal of the telecommunications, electricity, multimedia, defense, medical, industrial automation equipment, manufacturing and other fields.
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
