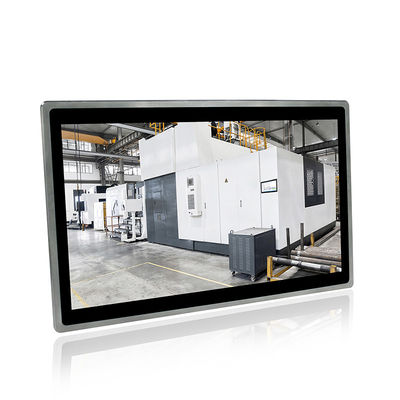

Product Details:
|
| IP Rating: | Front IP65 | Size: | 24" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | Processor: | Intel Core I7-8565U Quad Core 1.8GHz |
| RAM: | 4GB, Up To 32GB | HDD: | 64G / 128G / 250G / 500G SSD Optional |
| I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| TPM 2.0: | Yes | Working Voltage: | DC IN 9V~36V |
| High Light: | SUS304 Noiseless HMI Panel PC,250cd/m2 HMI Panel PC,PCAP Industrial Panel Mount Monitor |
||
Feature
The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.
The panel pc is compatible with Windows 10, Linux OS and embedded OS, also can support customized OS which is based on above systems and install industrial automation configuration software to comprise powerful HMI.
1. Stainless Steel front panel, front IP65 waterproof
2. 24" TFT LED, resolution 1920*1080
3. Adopt multi-points PCAP touch panel, high sensitive and fast-response. Covered with tempered glass for vandal-proof.
4. Intel Core i7-8565U Quad Core 1.8GHz
5. 2xLAN, 2xCOM, 8KV Static Electricity & 600W TVS Surge Protection
6. Built-in TPM2.0 for Hardware-based Security
7. 9V-36V wide voltage.
8. High performance motherboard, 7x24 continuous operation.
9. 1000nits, 1500nits sunlight readable optional
| PPC-7024WAC | ||
| System | CPU | Intel Core i7-8565U Quad Core 1.8GHz |
| L3 Cache | 8MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 24" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 250cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Stainless Steel Panel + Sheet Metal Painting Treated Back Shell |
| Color | Natural | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 594 x 377 x 60 mm | |
| Cut-out Size | 577 x 359 mm | |
| Packing Size | 730 x 200 x 530 mm | |
| Gross Weight | 16 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦60W | |
Advantages:
1. High quality products
2. Factory reasonable prices
3. Sensitive touch screen
4. CE/FCC/RoHS certificates passed
5. OEM/ODM service available
6. Professional and Effective Sales Team serves you.
Application
Industry 4.0
Rail Transit
Equipment Control Cabinet
Industrial Equipment Control
Cabin Driving
Vision Detection
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
