Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 10.4" LED |
|---|---|---|---|
| Resolution: | 800x600 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
| Memory: | DDR3L 1333MHz 4GB, Up To 8GB | Harddisk: | 1 X MSATA 64G SSD / (120G / 250G / 500G SSD) Optional |
| I/O Port: | 1 X H-DMI, 2 X LAN, 3 X USB2.0 / 1 X USB3.0 ,2 X RS-232 / 422 / 485 | Touchscreen: | Resistive Touch |
| Product Dimension: | 275 X 222 X 58 Mm | Cut-out Size: | 263 X 210 Mm |
| Highlight: | TPM2.0 Industrial Touch Panel PC,800x600 Industrial Touch Panel PC,GPIO Industrial Embedded PC |
||
Features:
1. Aluminum alloy panels, front panel IP65 waterproof standard.
2. 10.4" TFT LED, resolution 800 x 600, Resistive touch.
3. CPU: Intel j1900 2.0 GHz tablet silent no fan industry.
4. Two gigabit front-end ports, two serial RS232/422/485, 8 kv static and 600 w TVS surge protection.

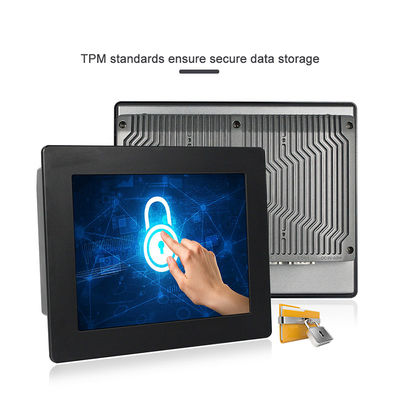

5. The onboard TPM2.0 modules provide maximum security hardware.
6. Wide voltage DC 9v ~ 36v, over-current, over-voltage and reverse connect protection.
Onboard Intel Celeron J1900/7th/8th Gen.Core i3/i5/i7 CPU
Onboard DDR3 4GB Memory / Optional SODIMM SKU
LCD+HDMI Output, Support Dual view/Simultaneous display
Fanless Operation
IP65 Front Bezel
Wide DC Support 9 ~ 36V
GPIO Port

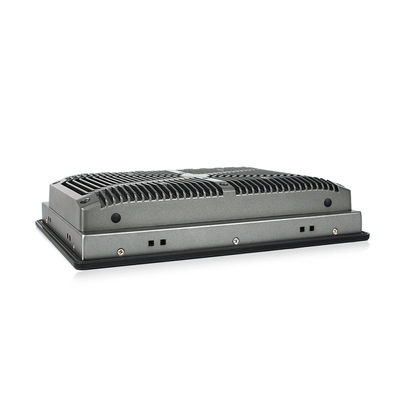

All Aluminum Housing with Heatsink
Specification
| PPC-J010SAR | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Wireless Network | 4G / WiFi / Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 10.4" Led |
| Resolution | 800 x 600 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 800:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 65 / 75 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Resistive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |
| Product Dimension | 275 x 222 x 58 mm | |
| Cut-out Size | 263 x 210 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦30W | |
Advantages:
1. High quality products
2. Factory reasonable prices
3. Sensitive touch screen
4. CE/FCC/RoHS certificates passed
5. OEM/ODM service available
6. Professional and Effective Sales Team serves you
1. Experience .
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
