Product Details:
|
CPU: | Intel Celeron Quad Core J1900 2.0GHz | Memory: | 4GB/8GB/16GB |
---|---|---|---|
Storage: | 32G SSD/64G SSD/128G SSD | System: | Windows8 / 10, Linux, Unix, QNX |
Material: | Aluminum Alloy Shell | External Power Supply: | AC 100 - 240V~50/60Hz,1.5A |
Warranty: | 1 Year | Products Status: | Stock |
Working Voltage: | DC IN 9V~36V | Power Consumption: | ≦15W |
High Light: | Paying Kiosk Rugged Mini Pc,RS485 Rugged Mini Pc,15W Fanless Industrial Pc |
15W Intel Celeron Quad Core Rugged Mini Pc Quiet Noise RS232 RS422 RS485
FEATURES

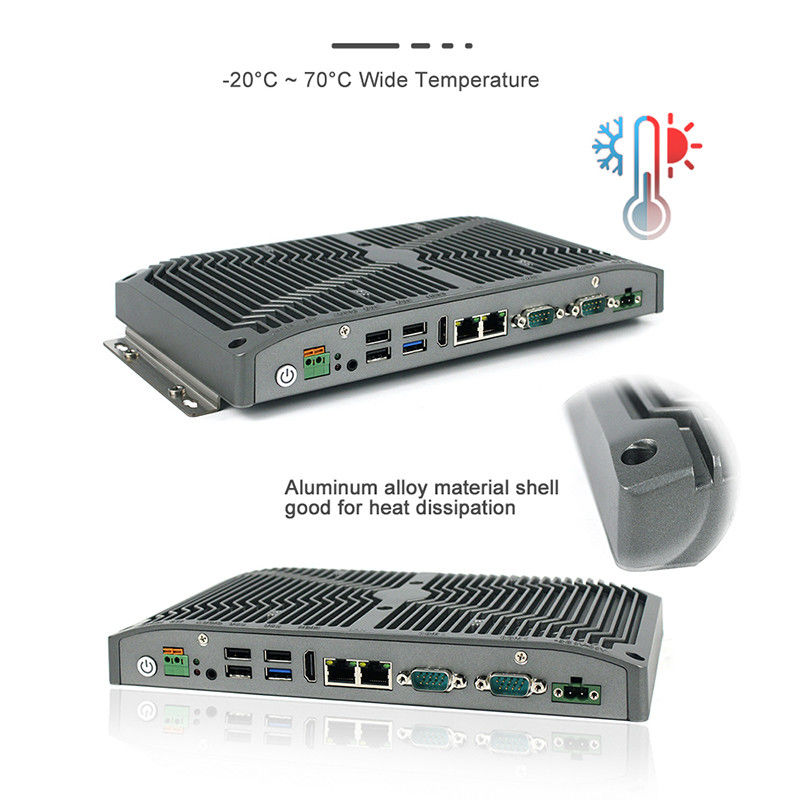

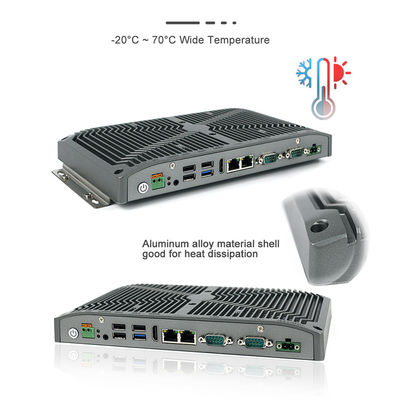

1. The aluminum alloy structure, hard anodic oxidation treatment of sandblasting, resistance to scratch
2. Intel Bay trail j1900 CPU:2.0GHz Fanless configuration
3. Two gigabit front-end ports, two serial RS232/422/485, 8 kv static and 600 w TVS surge protection
4. The onboard TPM2.0 module provides maximum security hardware
5. Wide voltage DC 9 v ~ 36 v, over-current, over-voltage and reverse connect protection
Application
Factory automation
Self service equipment
Paying kiosk
cnc plasma machine
car testing mechine
Multi-Product Dispensing Machine
Specification
EFIC-5000JA | ||
System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
L2 Cache | 2MB | |
Chipsets | Intel Bay Trail SOC | |
Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
Harddisk | 1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional | |
Graphics | Intel HD Graphics | |
Network | Intel® I211-AT GbE LAN | |
Audio | Realtek ACL662 Audio controller | |
TPM | TPM 2.0 | |
Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian | |
I / O | Display | 1 x H-DMI |
LAN | 2 x LAN | |
USB | 3 x USB2.0 / 1 x USB3.0 | |
COM | 2 x RS-232 / 422 / 485 | |
Audio | 1x Audio_out & Mic_in | |
Wireless Network | WiFi + Bluetooth ( Optional ) | |
Other I/O Interface | 1 x Power Switch | |
Institutional | Material | Aluminum Alloy Shell |
Color | Gray / Silver / Black ( optional ) | |
Fixed size | 272 x 90 mm / 272 x 60 mm | |
Product Dimension | 258 x 158 x 33 mm | |
Packing Size | 360 x 180 x 320 mm | |
Gross Weight | 4.0 KG | |
Power and Environment | Operating Temperature | -20~70°C |
Storage Temperature | -20~80°C(-22~176°F) | |
Relative Humidity | 5%~95%@40°C, non-condensing | |
Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
Working Voltage | DC IN 9V~36V | |
Power Consumption | ≦15W |
Highly reliable, fanless, noise-free, energy efficient, rugged mini PC designed for a large variety of demanding applications. Designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in micro computing thanks to the rugged design, compact dimensions, and high functionality.
Shinho Fanless Rugged Mini PCs series are designed for unique, industrial applications that require compact size, durability, high reliability, and universal performance.
FAQ
1. Q: Are you a manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
2. Q: Do you provide ODM/OEM or customized service?
A: Yes,we support OEM&ODM service, let you get the products you want exactly.
3. Q: What certifications do you have?
A: There are CE, RoHS, FCC, IP68, IP69K certificates, etc,.
4. Q: How long is the warranty?
A: Our factory promised warranty is 1 year.
5. Q:What is the lead time?
A: 3 business days for samples order, 15 business days for mass production.
6. Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
