Product Details:
|
| IP Rate: | IP67 / IP68 / IP69K | Size: | 12.1" |
|---|---|---|---|
| Touch Screen: | Resistive Touch | Resolution: | 1280 X 800 |
| Aspect Ratio: | 16:10 | Viewing Angle: | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) |
| Display Brightness: | 450cd/m2 | I/O: | HDMI/VGA/DVI Multiple Signals Input Supported |
| High Light: | VGA DVI Lcd Touch Screen Monitor,IP69K Lcd Touch Screen Monitor,450cd/m2 Industrial Lcd Monitor |
||
Feature

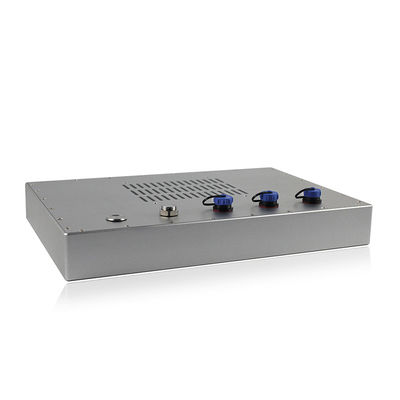

This is a Aluminum Alloy IP68 waterproof Monitor, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts and intense equipment washdowns.
3. HDMI/VGA/DVI multiple signals input supported
4. DC12V Input, (+9V～36V) wide voltage input optional
5. IP67 / IP68 / IP69K Waterproof
6. 1000nits, 1500nits brightness optional
7. VESA mounting
8. Sturable rugged enclosure which is for harsh environment
| WPM-H012WAR | ||
| LCD Panel | Panel Size | 12.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 700:1 | |
| Colors | 16.7M , 74% NTSC | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Resistive touch |
| Transmittance | >85% | |
| Response Time | <5ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 1000W | |
| I / O | VGA | 1 x VGA ( optional ) |
| H-DMI | 1 x H-DMI ( optional ) | |
| DVI | 1 x DVI ( optional ) | |
| USB | 1 x Touch USB | |
| Other I/O Interface | 1 x Power Switch | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP67 / IP68 / IP69K | |
| Product Dimension | 312 x 214 x 42 mm | |
| Cut-out Size | / | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 7.0 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V / optional(+9V~36V) | |
Application
The waterproof monitor is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.
3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.
4.Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
