Product Details:
|
Waterproof Rating: | Front IP65 | Led Panel: | 15.6" FHD Led |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | Intel Core I3-8145U Dual Core 2.1GHz |
RAM: | 4GB, Up To 32GB | HDD: | 128G / 250G / 500G SSD Optional |
I/O Ports: | 1xHD-MI, 4xUSB 3.0, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Capacitive Touch / Resistive Touch |
High Light: | IP69K Waterproof Touch Screen Computer,IP68 Waterproof Touch Screen Computer,IP69K waterproof touch screen monitor |
IP67 IP68 IP69K Waterproof Touch Screen Computer With TPM 8th Gen I3
8th Gen i3 waterproof embedded touch panel pc, industrial panel computer touch screen with TPM
About US:
For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.
QYT industrial PCs are designed to run 24/7/365 with the following characteristics to meet the demands of the IoT:
Ability to withstand harsh environments
Highly configurable
Extensive I/O options
Compact form factors
Long lifecycle
Waterproof Touch Screen PC Features:

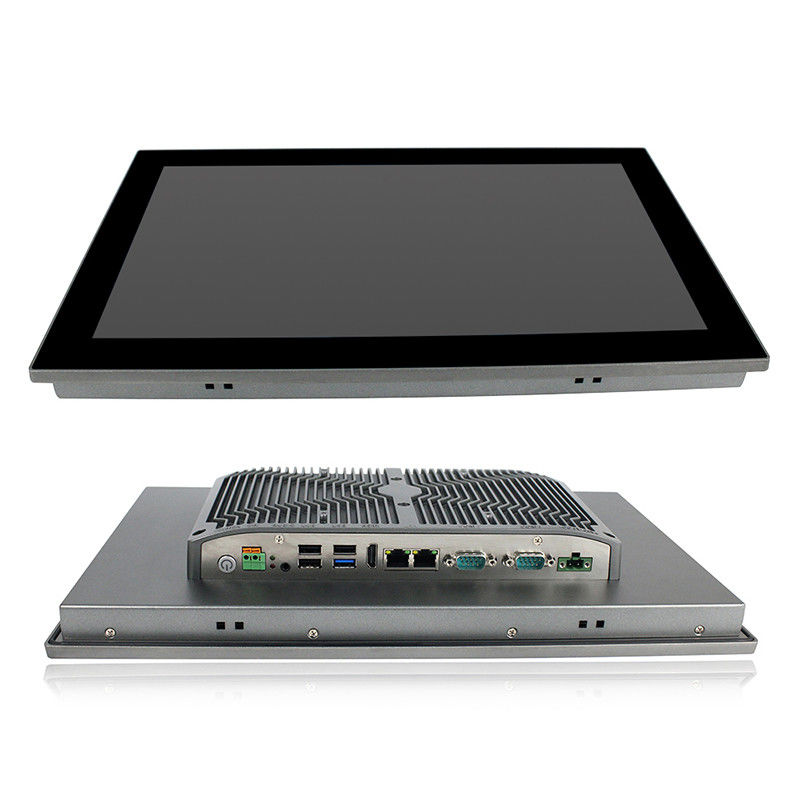

15.6" front IP65 Panel PC
1. 15.6" TFT LED, resolution 1920*1080, capacitive touch
2. Intel 8th Gen i3 8145U
3. DDR4L 2400MHz 4GB, Up to 32GB; M.2 120G SSD / ( 250G / 500G SSD) Optional

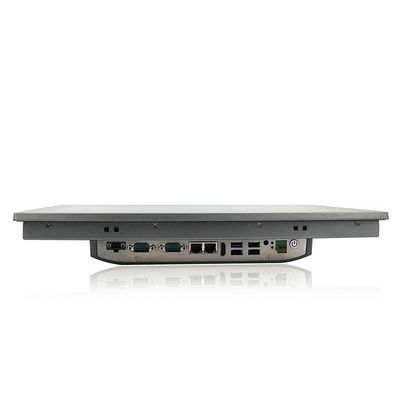

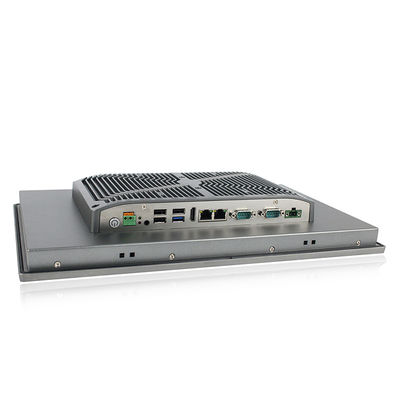

4. Ports: 1xH-DMI, 4xUSB 3.0, 2xLAN, 2xCOM(RS232/422/485 freely switched)
5. Operating System: Windows 10 / Linux, Ubuntu, Debian
6. DC9V~36V Input

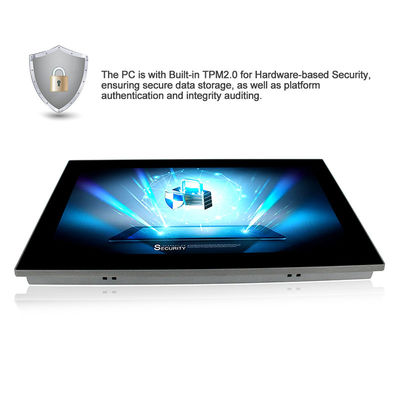

7. TPM 2.0
8. -20~70°C Operating Temperature
PPC-3156WAC |
||
System |
CPU |
Intel Core i3-8145U Dual Core 2.1GHz |
L3 Cache |
4MB |
|
Memory |
DDR4L 2400MHz 4GB, Up to 32GB |
|
Harddisk |
1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional |
|
Graphics |
Intel HD Graphics 620 |
|
Network |
Intel® I211-AT GbE LAN |
|
Audio |
Realtek ACL662 Audio controller |
|
TPM |
TPM 2.0 |
|
Operation System |
Windows 10 / Linux, Ubuntu, Debian |
|
I / O |
HDMI |
1 x H-DMI |
LAN |
2 x LAN |
|
USB |
4 x USB 3.0 |
|
COM |
2 x RS-232 / 422 / 485 |
|
Audio |
1x Audio_out & Mic_in |
|
Wireless Network |
WiFi / Bluetooth ( 4G / Optional ) |
|
Other I/O Interface |
1 x Power Switch |
|
LCD Panel |
Panel Size |
15.6" FHD Led |
Resolution |
1920 x 1080 |
|
Aspect Ratio |
16:9 |
|
Display Brightness |
600 cd/m2 |
|
Contrast Ratio |
1000:1 |
|
Backlight Lifetime |
50000 Hr (min.) |
|
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
|
Touch screen |
Touch Screen Type |
Multi-Touch PCAP |
Transmittance |
>90% |
|
Response Time |
<5ms |
|
Surface Hardness |
≥7H |
|
Supply Voltage |
5.0V DC |
|
Touch Life |
≧ 3000W |
|
Institutional |
Material |
High-strength Al-alloy, support IP65 |
Color |
Gray |
|
VESA Mounting |
VESA: 100 x 100 mm |
|
Waterproof Rate |
IP65 |
|
Product Dimension |
400 x 250 x 60 mm |
|
Cut-out Size |
386 x 236 mm |
|
Packing Size |
460 x 180 x 400 mm |
|
Gross Weight |
7 KG |
|
Power and Environment |
Operating Temperature |
-20~70°C |
Storage Temperature |
-30~80°C(-22~176°F) |
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
|
Working Voltage |
DC IN 9V~36V |
|
Power Consumption |
≦45W |
The Advantage for QYT Industrial PC:
1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.
2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.
3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.
4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.
5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.
6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial computer ( IPC) and embedded fanless industrial computers (EFIC). The product range constantly launches mainstream cost-effective products according to the market demand. Currently there are more than 200 models and other options to serve the market demand.
3. Customization functions
Relying on professional technical capabilities and R&D advantages, QYT creates the most competitive OEM/ODM products according to user demands and industry characteristics.
4. Widely useage environment
QYT pc are widely used in industrial automation, CNC machine, data acquisition, process control, motion control, automated testing, visual inspection, communication gateways and other application fields, as well as rail transit, intelligent transportation, petrochemical, electricity, new energy, medical equipment, environmental monitoring, financial self-service and other industries.
