Product Details:
|
| CPU: | Intel Core I3-8145U Dual Core 2.1GHz | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
|---|---|---|---|
| Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | I/O Port: | 1*HD-MI, 2*LAN, 4*USB2.0, 4*USB3.0, 4*RS232, |
| Power Input: | DC 9V~36V | Operating System: | Windows 10, Linux, Ubuntu, Debian |
| Power Consumption: | ≦20W | Working Time: | 7*24h |
| High Light: | 2.1GHz Fanless Embedded Computer,Windows 10 Fanless Embedded Computer,Fanless embedded pc windows |
||
Dual Core 2.1GHz Fanless Embedded Computer Mini Box Pc Windows 10
8th Gen Core i3-8145U Dual LAN fanless embedded industrial computer, mini box pc fanless
About US:
For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.
Industrial Fanless Mini PC Features:
1. Fanless Industrial Box PC
2. Intel Core i3-8145U Dual Core 2.1GHz
3. DDR4L 2400MHz 4GB, Up to 32GB, M.2 120G SSD / ( 250G / 500G SSD) Optional
4. Ports: 1*HDMI, 2*LAN, 4*USB2.0, 4*USB3.0, 4*RS232,

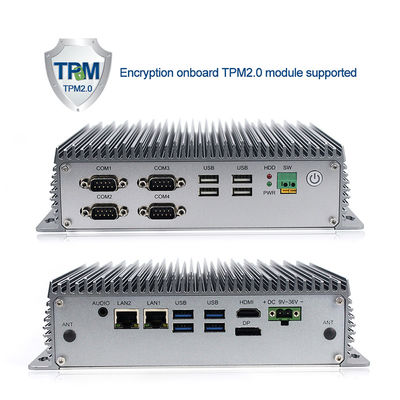

5. TPM2.0, Hardware Encryption
6. Operating System: Windows 10, Linux, Ubuntu, Debian
7. DC 9V～36V voltage input
|
EFIC-1000OB |
||
|
System |
CPU |
Intel Core i3-8145U Dual Core 2.1GHz |
|
L2 Cache |
4MB |
|
|
Chipsets |
Intel 8th Skylake-U SOC |
|
|
Memory |
DDR4L 2400MHz 4GB, Up to 32GB |
|
|
Harddisk |
1 x M.2 120G SSD / ( 250G / 500G SSD) Optional |
|
|
Graphics |
Intel HD Graphics 610 |
|
|
Network |
Intel® I211-AT GbE LAN |
|
|
Audio |
Realtek ACL662 Audio controller |
|
|
Operation System |
Windows 10, Linux, Ubuntu, Debian |
|
|
I / O |
VGA |
1 x DP / 1 x HD-MI |
|
LAN |
2 x LAN |
|
|
USB |
4 x USB2.0 / 4 x USB3.0 |
|
|
COM |
4 x RS232 |
|
|
Wireless Network |
WiFi + Bluetooth ( Optional ) |
|
|
Other I/O Interface |
1 x Power Switch |
|
|
Institutional |
Material |
Aluminum Alloy Shell |
|
Color |
Grey / Silver / Black ( optional ) |
|
|
VESA Mounting |
208 x 100 mm / 208 x 60 mm |
|
|
Product Dimension |
220 x 145 x 62 mm |
|
|
Packing Size |
360 x 180 x 320 mm |
|
|
Gross Weight |
4.0 KG |
|
|
Power and Environment |
Operating Temperature |
-10~60°C |
|
Storage Temperature |
-20~80°C(-22~176°F) |
|
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
|
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
|
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
|
|
Working Voltage |
DC 9V~36V |
|
|
Power Consumption |
≦20W |
|
Industrial PCs are primarily used for process control and/or data acquisition. In some cases, an industrial PC is simply used as a front-end to another control computer in a distributed processing environment.
Industrial PCs offer different features than consumer PCs in terms of reliability, compatibility, expansion options and long-term supply.
Industrial PCs are typically characterized by being manufactured in lower volumes than home or office PCs. Industrial PCs typically cost considerably more than comparable office style computers with similar performance.
We offers many Fanless Embedded PCs that supply high performance and low power consumption. Their multiple I/Os along with a small footprint makes them an ideal computing solution for tight places. With less moving parts, maintenance as well as down time is lessened giving you the confidence of many years of service.
The Advantage for QYT Industrial PC:
1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.
2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.
3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.
4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.
5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.
6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.
Applications
ATM
Pos machine
vending machine
Digital signage
Industrial automation
kiosk
machine control
telecomommunication
laser cutting machine
CNC machine
