Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 21.5" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
| Memory: | 4GB, Up To 8GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Interface: | 1xHD-MI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Capacitive / Resistive Touch |
| High Light: | Embedded Waterproof Touch Screen PC,FHD Industrial Touch Screen PC,21.5" Industrial Touch Screen PC |
||

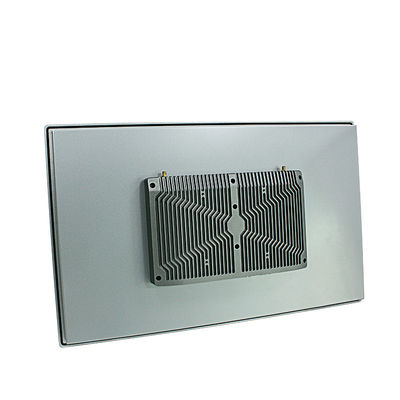

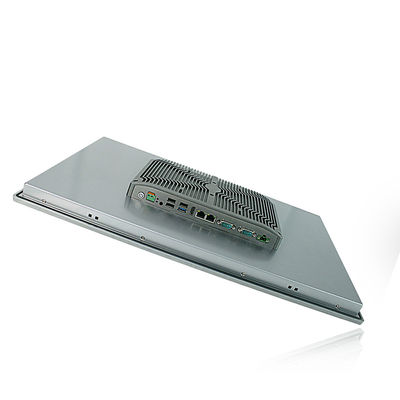

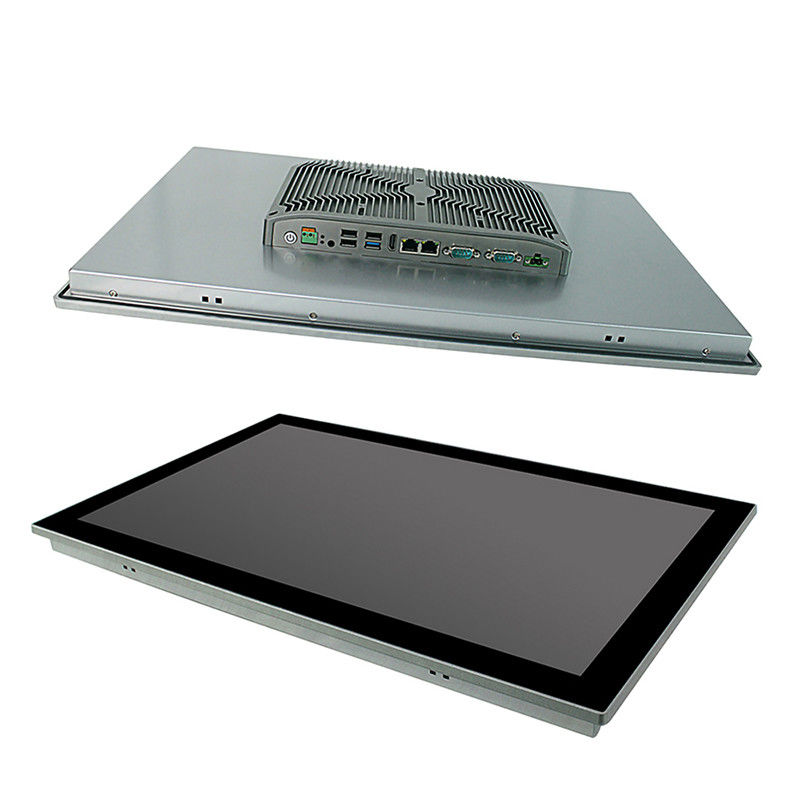

Wall Mounting Embedded Waterproof Touch Screen PC For Industrial
Wall Mounting Embedded 9-36v Waterproof Touch Screen PC, Industrial Touch Computer Wiht IP65
About US:
QYT is the leading solutions provider in Edge Computer & HMI System Platform.
After 10 years of unremitting pursuit and experience accumulation, QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial personal computer ( IPC) and embedded fanless industrial computers (EFIC).
Description Of Industrial Touch Panel PC
* 1920*1080 HD display
* 10 points capacitive touch
* WIFI/BT 4.0/RJ45 connection
* Support optional operating system
* 7/24 working, suitable for high-temperature environment
* CE, FCC, CCC, ROHS, ISO9001, ISO14001 authentication
|
PPC-J215WAC |
||
|
System |
CPU |
Intel Celeron Quad Core J1900 2.0GHz |
|
L2 Cache |
2MB |
|
|
Chipsets |
Intel Bay Trail SOC |
|
|
Memory |
DDR3L 1333MHz 4GB, Up to 8GB |
|
|
Harddisk |
1 x mSATA 64G SSD / (128G / 250G / 500G SSD) optional |
|
|
Graphics |
Intel HD Graphics |
|
|
Network |
Intel® I211-AT GbE LAN |
|
|
Audio |
Realtek ACL662 Audio controller |
|
|
TPM |
TPM 2.0 |
|
|
Operation System |
Windows7 / 8 / 10, Linux, Ubuntu, Debian |
|
|
I / O |
HDMI |
1 x H-DMI |
|
LAN |
2 x LAN |
|
|
USB |
3 x USB2.0 / 1 x USB3.0 |
|
|
COM |
2 x RS-232 / 422 / 485 |
|
|
Wireless Network |
4G / WiFi / Bluetooth ( Optional ) |
|
|
Other I/O Interface |
1 x Power Switch |
|
|
LCD Panel |
Panel Size |
21.5" FHD LED |
|
Resolution |
1920 x 1080 |
|
|
Aspect Ratio |
16:9 |
|
|
Display Brightness |
250 cd/m2 |
|
|
Contrast Ratio |
3000:1 |
|
|
Backlight Lifetime |
50000 Hr (min.) |
|
|
Viewing Angle |
89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
|
|
Touch screen |
Touch Screen Type |
Multi-Touch PCAP |
|
Transmittance |
>90% |
|
|
Response Time |
<5ms |
|
|
Surface Hardness |
≥7H |
|
|
Supply Voltage |
5.0V DC |
|
|
Touch Life |
≧ 3000W |
|
|
Institutional |
Material |
High-strength Al-alloy, support IP65 |
|
Color |
Gray |
|
|
VESA Mounting |
VESA: 100 x 100 mm |
|
|
Waterproof Rate |
IP65 |
|
|
Product Dimension |
538 x 330 x 60 mm |
|
|
Cut-out Size |
520 x 312 mm |
|
|
Packing Size |
630 x 190 x 480 mm |
|
|
Gross Weight |
12 KG |
|
|
Power and Environment |
Operating Temperature |
-20~70°C |
|
Storage Temperature |
-20~80°C(-22~176°F) |
|
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
|
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
|
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
|
|
Working Voltage |
DC IN 9V~36V |
|
|
Power Consumption |
≦30W |
|
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4. Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
OEM/ODM
1. size from 7''-24'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
