Product Details:
|
| IP Rating: | IP69K | Panel Size: | 15" Led |
|---|---|---|---|
| Resolution: | 1024 X 768 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
| RAM: | 4GB, Up To 8GB | Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| I/O Port: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| Highlight: | SUS 304 Stainless Steel Panel PC,IP69K Waterproof Stainless Steel Panel PC,Anti Corrosion Waterproof Touch Screen Pc |
||
Features
QYT’s waterproof computers are built for tough environments where waterjets or strong chemicals are used for cleaning. They're fully dustproof and waterproof, ideal for food and beverage manufacturing, meat/poultry processing, pharmaceutical processing, clean room manufacturing and outdoor placements. These Waterproof PCs are built with SUS304 or SUS316L stainless steel, and have fanless heatsink cooling systems. Their IP rating is up to IP69K.
Waterproof Touch Computers are designed to withstand extreme conditions and operate reliably in the harshest industrial environments. These devices are protected from water, dust and dirt, abrasive substances and extreme temperatures. Designed and engineered to operate in tough 24/7 continuous operation, these units are required for harsh environments.
Engineered with a strong stainless steel housing and with IP67 rated protected connectors, water resistant computers are made to withstand tough and rugged environments, with models for both indoors and out.
Product Advantage
1. Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents

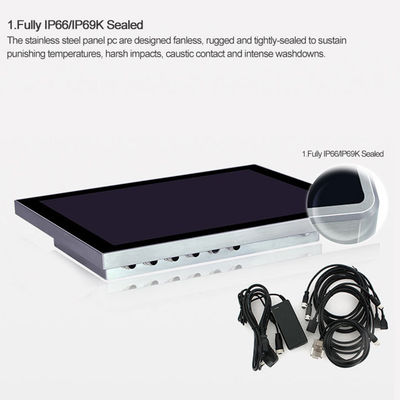

2. Full IP66/69K sealed to providing 360 degree protection
3. Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
4. Flexible, reliable, and rugged for open platform HMI/SCADA
5. Provides improved power efficiency and reduced consumption
6. CE, FCC, RoHS, IP69K Compliance
| WPC-J015SCC | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel 82583V 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) | |
| USB | 3 x USB2.0 / 1 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15" Led |
| Resolution | 1024 x 768 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 72% NTSC | |
| Response Time | 30 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Stainless Steel SUS04 |
| Color | Polished brushed surface | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 360 x 284 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 9.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
1x WPC-J015SCC Stainless Steel Panel PC
M12 Waterproof VGA/RS232/LAN/USB/COM cables
1x Utility DVD Driver
1x Power Adaptor
OEM/ODM
1. size from 7''-21.5'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
