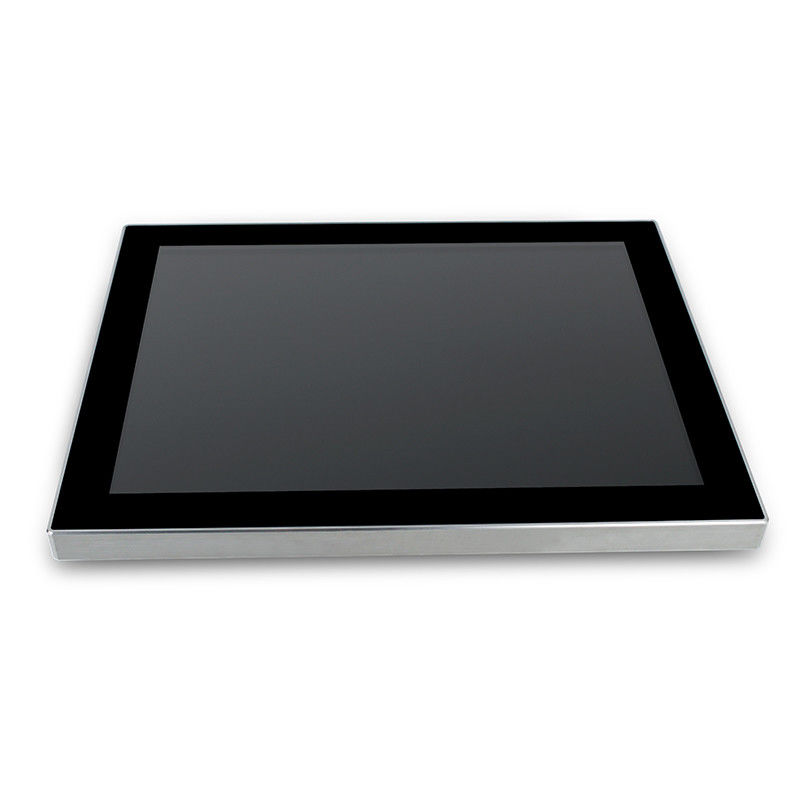

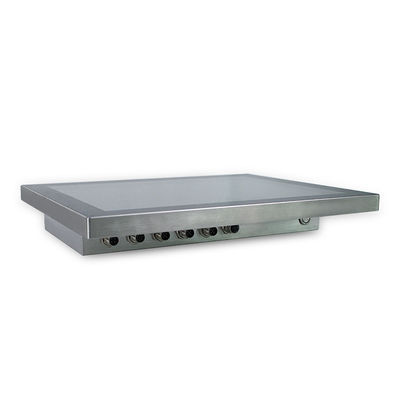

Industrial Washdown Waterproof Touch Screen Computer For Food Beverage Processing
Product Summary
Washdown Touchscreen Industrial Waterproof Computer PC Food And Beverage Processing Food and Beverage Processing. The food and beverage industries are heavily regulated for health and sanitation compliance. Washdown touchscreen computers in the processing environment perform many system management and control functions while sustaining contact with chlorides and corrosives. Simple cleanup and thorough washdown tolerance must be factored into hardware design. Pharmaceutical
Basic Properties
country of origin
Shenzhen, China
Brand Name
QYT
certificate
CE, FCC, RoHS, IP66, IP69K
PRODUCT MODEL
WPC-P015SCC
Trading Properties
MOQ
1 Set
unit price
Negotiable
payment method
T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Capacity
5000 Set/Sets per Month
Product Custom Attributes
Highlight
Washdown waterproof touch screen computer
,i5-6200U waterproof touch screen computer
,IP69K water resistant pc
Waterproof Rating:
IP69K
Panel Size:
15" Led
Resolution:
1024 X 768
CPU:
Intel Core I5-6200U Dual Core 2.5GHz
Memory:
4GB, Up To 16GB
HDD:
32G / 64G / 128G / 250G / 500G SSD Optional
I/O:
VGA/HD-MI/LAN/USB/RS232/RS485
Touchscreen Panel:
Capacitive Touch / Resistive Touch
Power Input:
DC 12V~24V / DC 9V~36V Optional
Operating System:
Win7/8/10/Linux/Ubuntu
Product Description
Detailed Specifications & Features
Washdown Touchscreen Industrial Waterproof Computer PC Food And Beverage Processing
Food and Beverage Processing.
The food and beverage industries are heavily regulated for health and sanitation compliance. Washdown touchscreen computers in the processing environment perform many system management and control functions while sustaining contact with chlorides and corrosives. Simple cleanup and thorough washdown tolerance must be factored into hardware design.
Pharmaceutical Manufacturing.
Pharmaceutical plants closely monitor system conditions and regularly wash down equipment and workspaces to ensure product purity. Washdown touchscreen computers perform a variety of critical control and automation functions like temperature regulation and quantity measurements in an easily-sterilized all-in-one device.
| WPC-P015SCC | ||
| System | CPU | Intel Core i5-6200U Dual Core 2.5GHz |
| L2 Cache | 3MB | |
| Chipsets | Intel 6th Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 520 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) | |
| USB | 2 x USB2.0 / 2 x USB3.0 ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15" Led |
| Resolution | 1024 x 768 | |
| Aspect Ratio | 4:3 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Colors | 16.7M , 72% NTSC | |
| Response Time | 30 (Typ.)(Tr+Td) ms | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Stainless Steel SUS304 |
| Color | Polished brushed surface | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 360 x 284 x 55 mm | |
| Cut-out Size | / | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 9.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
