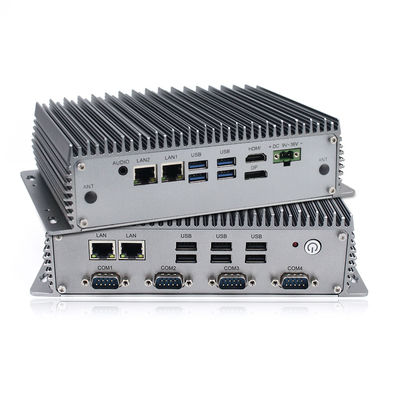

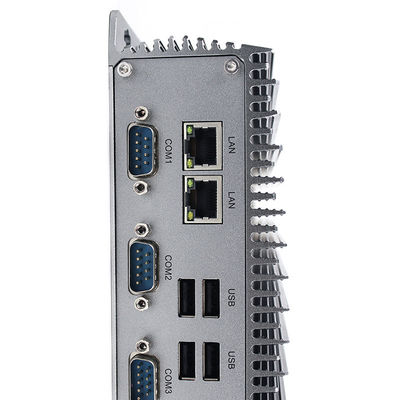

Rugged Industrial Fanless Mini PC Intel Core I3-8145U Dual Core 2.1GHz With 4 X LAN

Rugged Industrial Fanless Mini PC Intel Core I3-8145U Dual Core 2.1GHz With 4 X LAN
Rugged Industrial Fanless Mini PC Intel Core I3-8145U Dual Core 2.1GHz With 4 X LAN Rugged Industrial Fanless Mini PC Intel Core I3-8145U Dual Core 2.1GHz With 4 X LAN

Large Image :  Rugged Industrial Fanless Mini PC Intel Core I3-8145U Dual Core 2.1GHz With 4 X LAN

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS
Model Number: EFIC-1000OC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Rugged Industrial Fanless Mini PC Intel Core I3-8145U Dual Core 2.1GHz With 4 X LAN

Description
CPU: Intel Core I3-8145U Dual Core 2.1GHz Memory: DDR4L 2400MHz 4GB, Up To 32GB
Harddisk: 32G SSD / (64G / 128G / 250G / 500G SSD) Optional I/O Port: VGA/HD-MI/LAN/USB/COM
Power Input: DC 9V~36V Operating System: Windows 10, Linux, Ubuntu, Debian
Power Consumption: ≦20W Working Time: 7*24h
High Light:

Rugged Industrial Fanless Mini PC

,

i3-8145U Industrial Fanless Mini PC

,

4LAN Rugged Mini PC

Fanless Pc Industrial Computer Rugged Mini PC I3 I5 I7 4 X LAN

QYT's Rugged Mini PCs are designed to provide maximum impact in a small form factor. These small box PCs are versatile, with the ability to be connected to industrial monitors for a durable two-piece solution or used on their own for applications that don't require a screen.

Compute Anywhere with a Rugged Mini PC
The compact, rugged housing of QYT's rugged mini computers allows you to fit them into tight spaces like corners, control cabinets, or behind a monitor. These mini pcs are designed to run for years without the need for maintenance, meaning you can install, setup, and move onto your next project without a second thought.



EFIC-1000OC
System CPU Intel Core i3-8145U Dual Core 2.1GHz
L2 Cache 4MB
Chipsets Intel 8th Skylake-U SOC
Memory DDR4L 2400MHz 4GB, Up to 32GB
Harddisk 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional
Graphics Intel HD Graphics 610
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
Operation System Windows 10, Linux, Ubuntu, Debian
I / O VGA 1 x DP / 1 x HD-MI
LAN 4 x LAN
USB 6 x USB2.0 / 4 x USB3.0
COM 4 x RS232
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
Institutional Material Aluminum Alloy Shell
Color Grey / Silver / Black ( optional )
VESA Mounting 208 x 100 mm / 208 x 60 mm
Product Dimension 220 x 145 x 62 mm
Packing Size 360 x 180 x 320 mm
Gross Weight 4.0 KG
Power and Environment Operating Temperature -10~60°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 9V~36V
Power Consumption ≦20W


Rugged Industrial Fanless Mini PC Intel Core I3-8145U Dual Core 2.1GHz With 4 X LAN 0Rugged Industrial Fanless Mini PC Intel Core I3-8145U Dual Core 2.1GHz With 4 X LAN 1
