Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 12.1" Led |
|---|---|---|---|
| Resolution: | 1280 X 800 | CPU: | Intel Core I7-8565U Dual Core 1.8GHz |
| RAM: | 4GB, Up To 32GB | HDD: | 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Ports: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | Front IP65 Windows11 Industrial Panel PC,Fanless 12 Inch Touchscreen Industrial Computer |
||
About US
For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.
Advantages:
Modular Design:
The innovative modular design makes the PC more flexible and versatile, which enables easy customization and simplified upgrading while reducing maintenance costs.
IP65 Front Panel:
The IP65-rated flat panel design is with glass surface, resistant against water spray, dust ingress, contamination and scratch.
Fanless:
Thanks to a fanless cooling system, this panel mountable pc delivers reliable and quiet productivity 7*24h.
TPM 2.0:
The PC is with Built-in TPM2.0 for Hardware-based Security, ensuring secure data storage, as well as platform authentication and integrity auditing.
I/O Interface:
The pc is with multifunctional ports: 1xHDMI, 4xUSB, 2xLAN and 2xCOM( the COM ports can be RS232/422/485 freely switched)
Industrial-grade Panel PCs come with a range of housing to meet every industrial condition, not to mention low-power consumption or high-performance processors to suit different applications. From HMI terminals in Smart Factories and Buildings, or as POS/POI in the transportation and retail sectors, these Panel PCs can handle it all.
Panel mount panel PC is perfect for space considerations and support panel, front mount, and VESA mounting for different applications.
| PPC-7012WAC | ||
| System | CPU | Intel Core i7-8565U Dual Core 1.8GHz |
| L3 Cache | 8MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB 3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 12.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 700:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 | |

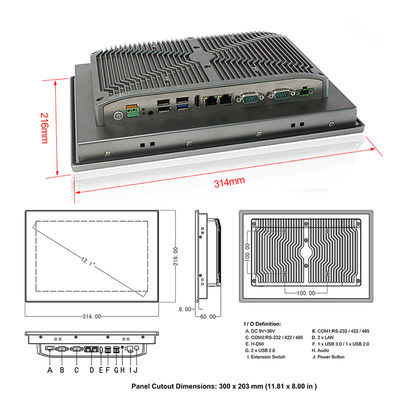

| Product Dimension | 314 x 216 x 60 mm | |
| Cut-out Size | 300 x 203 mm | |
| Packing Size | 450 x 170 x 350 mm | |
| Gross Weight | 5 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦45W | |
Features of Panel PC:
1. 24/7 reliability
2. Panel Mount/VESA Wall Mount
3. Multi-capacitive and resistive touch screen
4. High and Low-Performance Processors
5. 7" to 24" optional
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
