Product Details:
|
| IP Rating: | IP69K | Panel Size: | 19" Led |
|---|---|---|---|
| Resolution: | 1280 X 1024 | Processor: | Intel Core I5-6200U Dual Core 2.5GHz |
| RAM: | 4GB / 8GB / 16GB | Harddisk: | 32G / 64G / 128G / 250G / 500G SSD Optional |
| I/O Interface: | VGA/HD-MI/LAN/USB/RS232/RS485 | Touchscreen: | Capacitive Touch / Resistive Touch Optional |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | OEM IP69K Waterproof Panel PC,IP69K All In One Panel PC,1280 x 1024 IP69K Panel PC |
||

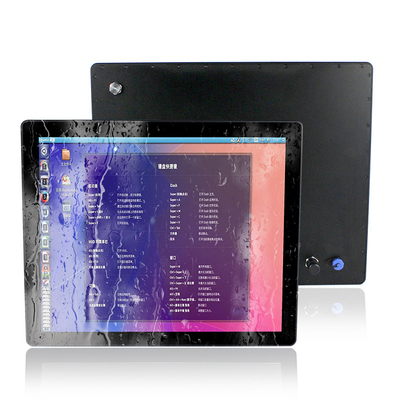

This is a Aluminum Alloy IP69K waterproof PC, fanless, strong and tightly-sealed to sustain punishing temperatures, harsh impacts and intense equipment washdowns.
The waterproof pc is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.
A Waterproof Touch Screen Industrial Panel PC from QYT combines advanced computing power with a range of hardened displays. Modular solutions enable easy customization and simplified upgrading while reducing maintenance costs. Our PPC line of IP65 Touch Screen panels with ingress protection and rugged plug and play attachable PCs, make for a modular and extremely economical solution. You choose the screen size and PC with the power and performance you need. QYT All-in-One Waterproof Touch Screen Panel PCs are available in various screen sizes and have a compact, fully integrated enclosure. Industrial touchscreen solutions from QYT provide a rugged solution for human/machine interface (HMI), in-vehicle use, inventory management, point of use, kiosk or industrial control applications.
About US
For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.
|
WPC-P019SAC |
||
|
System |
CPU |
Intel Core i5-6200U Dual Core 2.5GHz |
|
L2 Cache |
3MB |
|
|
Chipsets |
Intel 6th Skylake-U SOC |
|
|
Memory |
DDR4L 2133MHz 4GB, Up to 16GB |
|
|
Harddisk |
1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
|
|
Graphics |
Intel HD Graphics 520 |
|
|
Network |
Intel® i211 1000 Mbps port |
|
|
Audio |
Realtek ACL662 Audio controller |
|
|
Operation System |
Windows7 / 8 / 10, Linux, Unix, QNX |
|
|

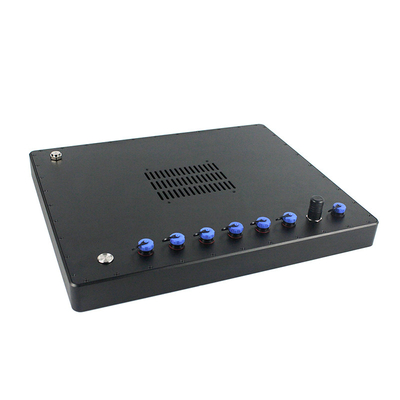

I / O |
VGA |
1 x VGA / 1 x HD-MI ( Optional ) |
|
LAN |
1 x LAN ( Optional ) |
|
|
USB |
2 x USB2.0 / 2 x USB3.0 ( Optional ) |
|
|
COM |
2 x RS232 ( Optional ) |
|
|
Wireless Network |
WiFi + Bluetooth ( Optional ) |
|
|
Other I/O Interface |
1 x Power Switch |
|
|
LCD Panel |
Panel Size |
19" Led |
|
Resolution |
1280 x 1024 |
|
|
Aspect Ratio |
4:3 |
|
|
Display Brightness |
450 cd/m2 |
|
|
Contrast Ratio |
1000:1 |
|
|
Colors |
16.7M , 90% NTSC |
|
|
Response Time |
7/3 (Typ.)(Tr/Td) ms |
|
|
Viewing Angle |
85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) |
|
|
Touch screen |
Touch Screen Type |
10 point capacitive touch |
|
Transmittance |
>90% |
|
|
Response Time |
<5ms |
|
|
Surface Hardness |
≥6H |
|
|
Supply Voltage |
5.0V DC |
|
|
Touch Life |
≧ 3000W |
|
|
Institutional |
Material |
Aluminum Alloy Shell |
|
Color |
Silver / Black ( optional ) |
|
|
VESA Mounting |
VESA: 100 x 100 mm |
|
|
Waterproof Rate |
IP66 / IP69K |
|
|
Product Dimension |
427 x 352 x 40 mm |
|
|
Cut-out Size |
/ |
|
|
Packing Size |
500 x 180 x 450 mm |
|
|
Gross Weight |
8.0 KG |
|
|
Power and Environment |
Operating Temperature |
-10~60°C |
|
Storage Temperature |
-20~80°C(-22~176°F) |
|
|
Relative Humidity |
5%~95%@40°C, non-condensing |
|
|
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
|
|
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
|
|
Working Voltage |
DC 12V~24V / optional(+9V~36V) |
|
|
Power Consumption |
≦30W |
|
The Advantage for QYT Industrial PC:
1. Superior Design/Performance: We offer options for vibration resistance, wider operating temperatures, and protection from dirt and dust.
2. Industrial grade components: Our computers are created with components that are built for higher reliability, a longer lifecycle and more uptime.
3. Configuration Options: Our solutions are highly configurable to meet your specifications whether you need a simple gateway or machine vision.
4. Extensive I/O: We offer extensive I/O options to effectively communicate with devices such as sensors, PLCs and legacy equipment.
5. Wireless Connectivity: With options for wireless connectivity such as 4G or BlueTooth built in. These computers are ready for an edge to cloud deployment.
6. Power Options: Industrial PCs have additional power input options and can be safely connected to variable input sources.
