Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 23.8" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
| Memory: | DDR3L 1333MHz 4GB, Up To 8GB | Harddisk: | MSATA 64G SSD / (128G / 250G / 500G SSD) Optional |
| I/O Interface: | 1xHD-MI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Capacitive / Resistive Touch |
| Working Voltage: | DC IN 9V~36V | Operation System: | Windows7 / 8 / 10, Linux, Ubuntu, Debian |
| High Light: | aluminum housing Embedded Touch Panel PC,24 inch Embedded Touch Panel PC,Core J1900 Industrial Touch Panel PC |
||

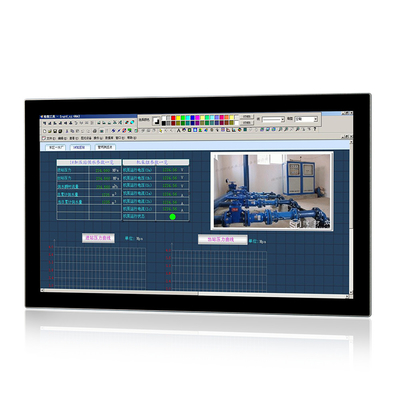

Core J1900 4GB RAM 64GB SSD Industrial embedded Touch Panel PC 24 inch
24 inch Industrial Embedded Touch Panel PC HMI with aluminum housing and a completely flat IP65 front. The system is equipped with an onboard Intel 6th Gen. Celeron Quad Core J1900 2.0GHz, supports up to DDR3L 1333MHz 8GB memory, Projected Capacitive touchscreen, wide range DC 9~36V power input , 3 x USB2.0 / 1 x USB3.0 , 2 x GbE LAN and 2 x COM.
Feature:
1. 23.8" FHD LED , resolution 1920 x 1080
2. Front IP65, TPM 2.0
3. Intel Celeron Quad Core J1900 2.0GHz, Multi-Touch PCAP
4. 4GB RAM 64GB SSD
5. I/O: 1xH-DMI, 2xLAN, 3xUSB2.0/1xUSB3.0, 4xRS232/2x(RS232/422/485)
6. 4G/5G/WiFi/Bluetooth ( Optional )
7. DC IN 9V~36V
8. Operating System: Win7/8/10/Linux/Ubuntu
| PPC-J024WAC | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 64G SSD / (120G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian | |
| I / O | Display | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 3 x USB2.0 / 1 x USB3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 23.8" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 350 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 / IP66 | |
| Product Dimension | 585 x 354.5 x 63 mm | |
| Cut-out Size | 568 x 337 mm | |
| Packing Size | 730 x 200 x 530 mm | |
| Gross Weight | 16 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦35W | |
Application Industries:
Packaging Details:
We usually packed with strong EPE, Foam + Carton(Each two sets packed into one carton). Various shipping method optional such as DHL, UPS, FEDEX, TNT, by air or by ship.
FAQ:
Q: Are you Manufacturer or trading company?
A: We're a professional manufacturer with more than 10 years experience in industrial automation field.
Q: Whether your product support the OEM / ODM?
A: Yes, we support the customization with size, function, appearance, resolution, high brightness and etc.
Q: Where is your product apply?
A: Restaruant, Advertisement, Medical Equipment, , ATM, Industrial autamation, Supermarket chain store, Food and beverage etc.
Q: Do you support Sample?
A: Yes, Sample order is available but it will be charged.
Q: What is the main size for your industrial PC?
A: 8" to 24’’, we also support the customized.
Q: What is the warranty of products?
A: One year guarantee period
