Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 10.1" Led |
|---|---|---|---|
| Resolution: | 1280 X 800 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
| Memory: | DDR3L 1333MHz 4GB, Up To 8GB | Harddisk: | 1 X MSATA 64G SSD / ( 128G / 240G / 480G SSD ) Optional |
| I/O Interface: | 1xHD-MI, 2xLAN, 4xUSB, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Capacitive / Resistive Touch |
| Working Voltage: | DC IN 9V~36V | Operation System: | Windows7 / 8 / 10, Linux, Ubuntu, Debian |
| High Light: | 2 LAM Industrial Touch PC,2 COM Industrial Touch PC,PCAP Touch 10 Inch Panel PC |
||

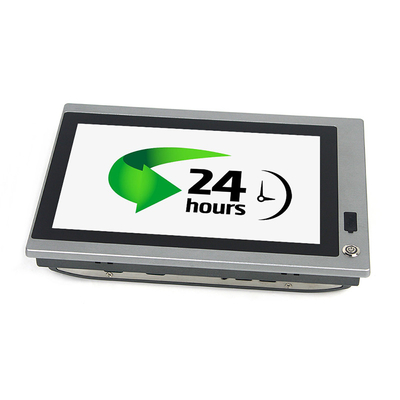

2 LAM 2 COM 10 Inch Industrial Touch PC J1900 with Front Switch and USB
QYT industrial Panel PC includes all-in-one devices that integrate a high-resolution display, a touch screen and a computer. A wide selection of screen sizes from 8.4" to 24" is available in 4:3 and 16:9 aspect ratio, and select PC performance.
Key Features :
1. 10.1" LED , resolution 1280 x 800
2. Intel Celeron Quad Core J1900 2.0GHz, Multi-Touch PCAP
3. 4 GB RAM, 64 GB SSD
4. Customized 4G/5G/WiFi / Bluetooth
5. IP66-rated front bezel to deter water and dust ingress
6. Robustness with wide 9-36 DC input and optional -20°C to 70°C support
7. Ease of installation with panel and optional VESA mount
8. support and custom I/O and function expansion
| PPC-J010WBC | ||
| System | CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Bay Trail SOC | |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB | |
| Harddisk | 1 x mSATA 64G SSD / ( 128G / 240G / 480G SSD ) optional | |
| Graphics | Intel HD Graphics | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows7 / 8 / 10, Linux, Ubuntu, Debian | |
| I / O | HDMI | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 4 x USB2.0 / 1 x USB3.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Wireless Network | 4G / WiFi / Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 10.1" Led |
| Resolution | 1280 x 800 | |
| Aspect Ratio | 16:10 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 900:1 | |
| Backlight Lifetime | 30000 Hr (min.) | |
| Viewing Angle | 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥7H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | High-strength Al-alloy, support IP65 |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 | |
| Product Dimension | 275 x 194 x 58 mm | |
| Cut-out Size | 263 x 182 mm | |
| Packing Size | 360 x 180 x 320 mm | |
| Gross Weight | 4.0 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦30W | |
Application of industrial touch PC:
Packaging Details:
We usually packed with strong EPE, Foam + Carton(Each two sets packed into one carton). Various shipping method optional such as DHL, UPS, FEDEX, TNT, by air or by ship.
