Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 21.5" FHD LED |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I7-8565U Quad Core 1.8GHz |
| Memory: | DDR4L 2400MHz 4GB, Up To 64GB | HDD: | M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |

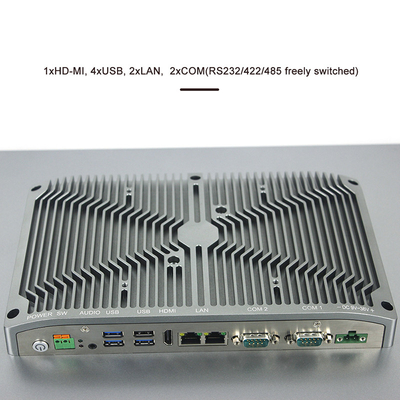

| I/O Interface: | 1xHD-MI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Resistive / Capacitive Touch |
| High Light: | Resistive Touch fanless embedded pc,21.5" fanless embedded pc,FHD LED fanless embedded computers |
||
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
Construction and features
The Industrial PC provides a controlled environment for the installed electronics to survive the rigors of the plant floor.
1. The electronic components can withstand higher and lower operating temperatures than typical commercial components.
2. Heavier metal construction as compared to the typical office non-rugged computer
3. Wider operating temperature range than normal PCs, with the widest temperature ranges being -20 to 70°C
4. Enhanced environmental protection such as dust proof, water spray or immersion proof, etc.
5. Higher grade power supply
Industrial Touch Panel PC:
1. Aluminium alloy front panel, front IP65 waterproof
2. 21.5" TFT LED, resolution 1920 x 1080, 5 wire resistive touch
3. Intel Core i7-8565U Quad Core 1.8GHz, Embedded Touch Panel PC
4. 2xLAN, 2xCOM, 8KV Static Electricity & 600W TVS Surge Protection

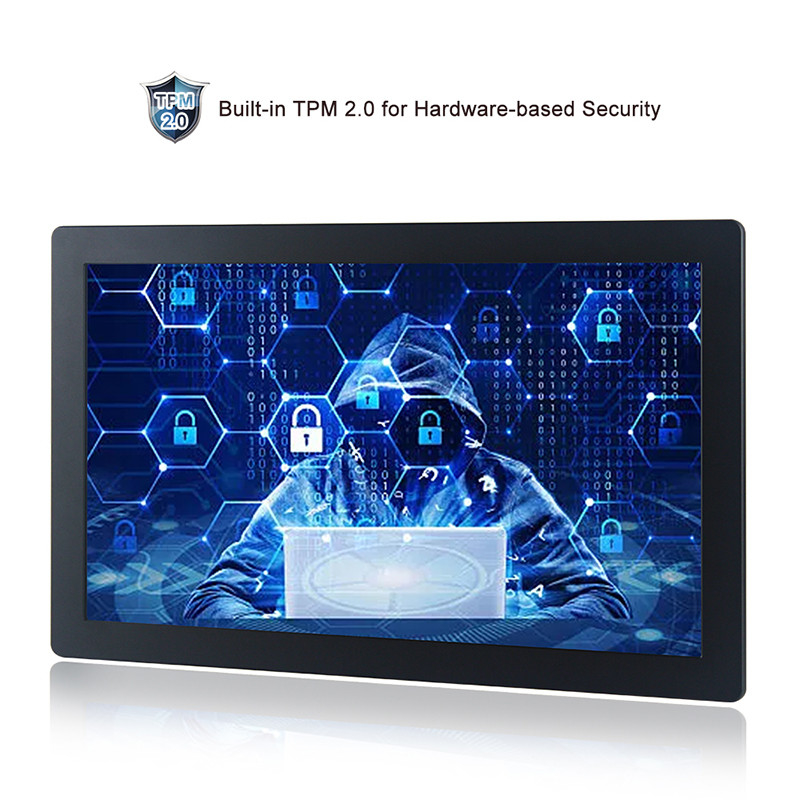

5. Built-in TPM2.0 for Hardware-based Security
6. DC 9~36V, overcurrent, overvoltage & reverse connection protection
| PPC-7215WAR | ||
| System | CPU | Intel Core i7-8565U Quad Core 1.8GHz |
| L3 Cache | 8MB | |
| Memory | DDR4L 2400MHz 4GB, Up to 64GB | |
| Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional | |
| Graphics | Intel HD Graphics 620 | |
| Network | Intel® I211-AT GbE LAN | |
| Audio | Realtek ACL662 Audio controller | |
| TPM | TPM 2.0 | |
| Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian | |
| I / O | Video | 1 x H-DMI |
| LAN | 2 x LAN | |
| USB | 3 x USB 3.0 / 1 x USB 2.0 | |
| COM | 2 x RS-232 / 422 / 485 | |
| Audio | 1x Audio_out & Mic_in | |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 21.5" FHD LED |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 400 cd/m2 | |
| Contrast Ratio | 1000:1 | |
| Backlight Lifetime | 50000 Hr (min.) | |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 5 Wire Resistive touch |
| Transmittance | >80% | |
| Response Time | <10ms | |
| Surface Hardness | ≥3H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3500W | |
| Institutional | Material | High-strength Al-alloy |
| Color | Gray | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP65 / IP66 | |

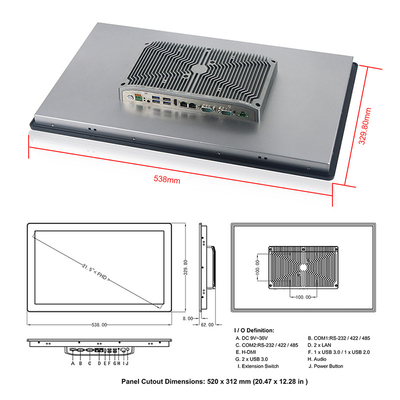

| Product Dimension | 538 x 330 x 62 mm | |
| Cut-out Size | 520 x 312 mm | |
| Packing Size | 630 x 190 x 480 mm | |
| Gross Weight | 12 KG | |
| Power and Environment | Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC IN 9V~36V | |
| Power Consumption | ≦45W | |
Features:
The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.
The panel pc is compatible with Windows 10, Linux OS and embedded OS, also can support customized OS which is based on above systems and install industrial automation configuration software to comprise powerful HMI.
Advantages:
1. High quality products
2. Factory reasonable prices
3. Sensitive touch screen
4. CE/FCC/RoHS certificates passed
5. OEM/ODM service available
6. Professional and Effective Sales Team serves you.
