Product Details:
|
| Waterproof Rating: | IP69K | Panel Size: | 15.6" Led |
|---|---|---|---|
| Resolution: | 1920 X 1080 | CPU: | Intel Core I5-6200U Dual Core 2.5GHz |
| Memory: | 4GB, Up To 16GB | Harddisk: | 32G / 64G / 128G / 250G / 500G SSD Optional |
| I/O Interface: | VGA/HD-MI/LAN/USB/RS232 | Touchscreen: | Capacitive / Resistive Touch Optional |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | IP69K Rugged Industrial Panel PC,15.6 Inch Rugged Industrial Panel PC,Rugged all in one touch panel pc |
||
About US:
We offer a wide range of specialized industrial grade all-in-one multi-touch panel PCs and HMIs that find their applications such as Internet of Things (IoT), M2M, HMI, SCADA, or MES applications. Our range of panel pcs include: Android, Windows or Linux OS based systems with wide range of display sizes from 7" to 24". Depending on the use case, models can be ordered as front waterproof (IP65) only or full waterproof (IP69K) for outdoor.
Our rugged IP69K full water and dust proof line of industrial panel PCs are designed for outdoor and factory environments. The full waterproof models can be used stand alone mounted on a wall and may be used in environments where the unit will be exposed to elements and water splashing. These units can be customized to support specialized high brightness sunlight readable screens and designed to operate under wide temperature ranges. They can be ordered with a variety of mounting options including open-frame models that can be easily integrated and embedded in kiosks and other media consoles or standard VESA mounting 75x75 or 100x100.
Industrial Panel PCs from QYT are deployed fully configured with your choice of processor, memory, storage, I/O ports, and operating system. Designed for industrial applications, these touch screen panel PCs are market certified.
Product Advantage

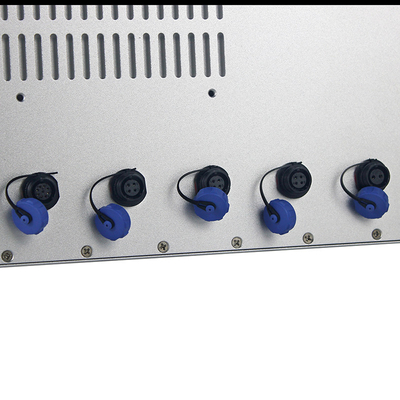

1. Robust aluminum alloy/stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
2. Full IP66/69K sealed to providing 360 degree protection
3. Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
4. Flexible, reliable, and rugged for open platform HMI/SCADA
5. Provides improved power efficiency and reduced consumption
6. CE, FCC, RoHS, IP69K Compliance

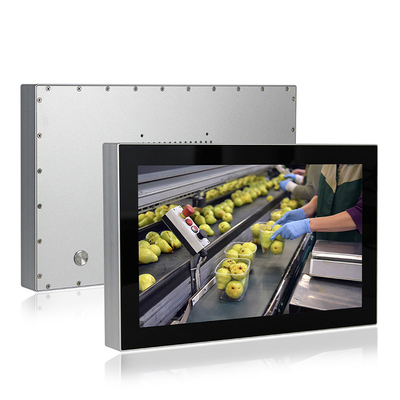

A Waterproof Touch Screen Industrial Panel PC from QYT combines advanced computing power with a range of hardened displays. Modular solutions enable easy customization and simplified upgrading while reducing maintenance costs. Our PPC line of IP65 Touch Screen panels with ingress protection and rugged plug and play attachable PCs, make for a modular and extremely economical solution. You choose the screen size and PC with the power and performance you need. QYT All-in-One Waterproof Touch Screen Panel PCs are available in various screen sizes and have a compact, fully integrated enclosure. Industrial touchscreen solutions from QYT provide a rugged solution for human/machine interface (HMI), in-vehicle use, inventory management, point of use, kiosk or industrial control applications.
| WPC-M156WAC | ||
| System | CPU | Intel Celeron Dual Core 3855U 1.6GHz |
| L2 Cache | 2MB | |
| Chipsets | Intel Skylake-U SOC | |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB | |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | |
| Graphics | Intel HD Graphics 510 | |
| Network | Intel® i211 1000 Mbps port | |
| Audio | Realtek ACL662 Audio controller | |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX | |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) | |
| USB | 4 x USB ( Optional ) | |
| COM | 2 x RS232 ( Optional ) | |
| Wireless Network | WiFi + Bluetooth ( Optional ) | |
| Other I/O Interface | 1 x Power Switch | |
| LCD Panel | Panel Size | 15.6" Led |
| Resolution | 1920 x 1080 | |
| Aspect Ratio | 16:9 | |
| Display Brightness | 450 cd/m2 | |
| Contrast Ratio | 800:1 | |
| Colors | 16.2M , 72% NTSC | |
| Response Time | 13/12 (Typ.)(Tr/Td) ms | |
| Viewing Angle | 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) | |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% | |
| Response Time | <5ms | |
| Surface Hardness | ≥6H | |
| Supply Voltage | 5.0V DC | |
| Touch Life | ≧ 3000W | |
| Institutional | Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) | |
| VESA Mounting | VESA: 100 x 100 mm | |
| Waterproof Rate | IP66 / IP69K | |
| Product Dimension | 398 x 247 x 52 mm | |
| Cut-out Size | / | |
| Packing Size | 460 x 180 x 400 mm | |
| Gross Weight | 7.0 KG | |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) | |
| Relative Humidity | 5%~95%@40°C, non-condensing | |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis | |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A | |
| Working Voltage | DC 12V~24V / optional(+9V~36V) | |
| Power Consumption | ≦30W | |
Applications
The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
