Product Details:
|
Type: | Industrial Mini Pc Fanless | RAM: | DDR4L 2400MHz 4GB |
---|---|---|---|
Storage: | 1 X M.2 120G SSD | USB: | 4 X USB2.0, 4 X USB3.0 |
COM: | 4 X RS232 | Operating System: | Linux/Win7/Win8/Win10 |
CPU: | Intel Core I7-8565U Quad Core 1.8GHz | Working Time: | 7*24h |
High Light: | Two Ethernet Ports Industrial Mini Pc,Intel Core I7 Fanless Industrial PC,Fanless Mini Industrial Embedded Box PC |

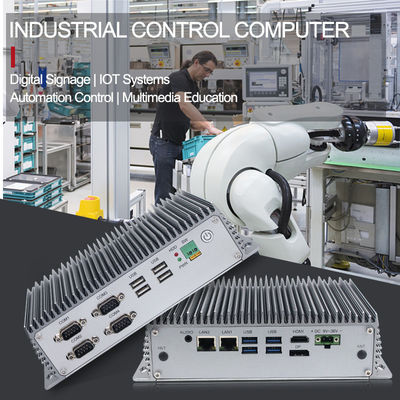

Industrial Mini Pc Fanless Two Ethernet Ports Intel Core I7 Industrial Automation Control
* Industrial control computer
* Digital signage
* Iot systems
* Automation control
* Multimedia education
Industrial Mini Pc Feature
Embedded Industrial Computer is a kind of reinforcement of enhanced Industrial Computer, it can be used as an Industrial controller reliable operation in Industrial environment. Industrial computer often run in environment is bad environment, the data security requirement is higher, so the industrial computer is usually to reinforce, dust-proof, moisture-proof, anti-corrosion, radiation protection and other special design. Industrial computers also have high requirements for scalability, and the design of interfaces needs to meet specific external devices, support customization.

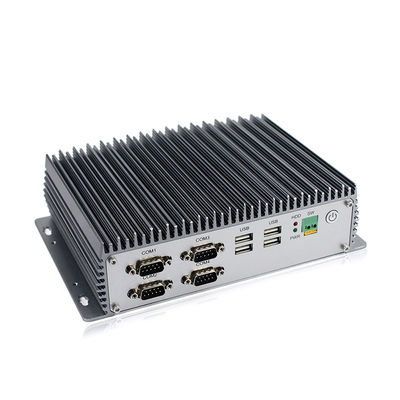

EFIC-1000QB |
|
System |
|
CPU |
Intel Core i7-8565U Quad core 1.8GHz |
L2 Cache |
8MB |
Chipsets |
Intel 8th Skylake-U SOC |
Memory |
DDR4L 2400MHz 4GB, Up to 32GB |
Harddisk |
1 x M.2 120G SSD / ( 250G / 500G SSD) Optional |
Graphics |
Intel HD Graphics 620 |
Network |
Intel® I211-AT GbE LAN |
Audio |
Realtek ACL662 Audio controller |
TPM |
TPM 2.0 |
Operation System |
Windows 10, Linux, Ubuntu, Debian |
I / O |
|
Display |
1 x DP / 1 x HD-MI |
LAN |
2 x LAN |
USB |
4 x USB2.0 / 4 x USB3.0 |
COM |
4 x RS232 |
Audio |
1x Audio_out & Mic_in |
Wireless Network |
WiFi + Bluetooth ( Optional ) |
Other I/O Interface |
1 x Power Switch |
Institutional |
|
Material |
Aluminum Alloy Shell |
Color |
Grey / Silver / Black ( optional ) |
VESA Mounting |
208 x 100 mm / 208 x 60 mm |
Product Dimension |
220 x 145 x 62 mm |
Packing Size |
360 x 180 x 320 mm |
Gross Weight |
4.0 KG |
Power and Environment |
|
Operating Temperature |
-10~60°C |
Storage Temperature |
-20~80°C(-22~176°F) |
Relative Humidity |
5%~95%@40°C, non-condensing |
Vibration Range |
5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
External Power Supply |
AC 100 - 240V~50/60Hz,1.5A |
Working Voltage |
DC 9V~36V |
Power Consumption |
≦25W |
Advantages:
The embedded industrial automation electronic computer is small in size, and the key hardware configuration of the industrial automation electronic computer is concentrated in the chassis, which occupies less indoor space and is easy to install and maintain. Basically, it can be placed in all mechanical equipment and control boxes.
The first case it uses is a fully enclosed design with no cooling fan. The cooling surface of the CPU is coated with a layer of thermally conductive silicone. The thermally conductive silica gel is in direct contact with the heat sink of the chassis, and transfers the internal heat of the industrial computer to the heat sink, resulting in a reasonable heat dissipation without a cooling fan inside the chassis.
The embedded industrial computers is soundproof and anti-fouling, and the heat generated by the equipment itself is dissipated according to the fully enclosed aluminum alloy chassis. This can not only deal with the heat dissipation problem of the industrial computer, but also has the effect of anti-fouling and waterproofing.
Embedded industrial computer adopts embedded, low-power mainboard. Much of the hardware configuration of the device is integrated on the motherboard, thus preventing problems caused by various external connections.
