Windows Embedded Panel PC I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD

Windows Embedded Panel PC I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD
Windows Embedded Panel PC I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD Windows Embedded Panel PC I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD Windows Embedded Panel PC I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD

Large Image :  Windows Embedded Panel PC I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP65
Model Number: PPC-7017SAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Windows Embedded Panel PC I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD

Description
Type: Windows Embedded Panel Pc Led Panel: 17 Inch
Resolution: 1280 X 1024 CPU: Intel Core I7-8565U Quad Core 1.8GHz
Memory: DDR4L 4G RAM HDD: 128G SSD
Touch Screen: Multi-Touch PCAP Delivery Date: 7 Days
High Light:

Windows Embedded Panel PC I3

,

17 inch Industrial Computer Hmi PC

,

Multi - Touch PCAP Industrial Computer

Windows Embedded Panel Pc I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD



Feature

1. Aluminum alloy panel, the front panel meets IP65 waterproof standard.

2. 17″ TFT LED, resolution 1280×1024, 10-point capacitive touch.

3. 8th Gen Intel Core i7-8265U 1.8GHz Fanless Industrial Panel PC.

4. 2 Gigabit Ethernet ports, 2 RS232/422/485 serial ports, 8KV static electricity and 600W TVS surge protection.

5. The onboard TPM2.0 module provides maximum hardware security.

6. Wide voltage DC 9V~36V, with overcurrent, overvoltage and reverse connection protection.


The iWindows Embedded Panel Pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.



PPC-7017SAC
System
CPU Intel Core i7-8565U Quad Core 1.8GHz
L3 Cache 8MB
Memory DDR4L 2400MHz 4GB, Up to 64GB
Harddisk 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional
Graphics Intel HD Graphics 620
Network Intel® I211-AT GbE LAN
Audio Realtek ACL662 Audio controller
TPM TPM 2.0
Operation System Windows 10 / 11 / Linux, Ubuntu, Debian
I / O
HDMI 1 x H-DMI
LAN 2 x LAN
USB 3 x USB 3.0 / 1 x USB 2.0
COM 2 x RS-232 / 422 / 485
Audio 1x Audio_out & Mic_in
Wireless Network WiFi / Bluetooth ( 4G / 5G Optional )
Other I/O Interface 1 x Power Switch
LCD Panel
Panel Size 17" LED
Resolution 1280 x 1024
Aspect Ratio 5:4
Display Brightness 400 cd/m2
Contrast Ratio 1000:1
Backlight Lifetime 50000 Hr (min.)
Viewing Angle 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D )
Touch screen
Touch Screen Type Multi-Touch PCAP
Transmittance >90%
Response Time <5ms
Surface Hardness ≥7H
Supply Voltage 5.0V DC
Touch Life ≧ 3000W
Institutional
Material High-strength Al-alloy
Color Gray
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP65 / IP66
Product Dimension 395 x 327 x 62 mm
Cut-out Size 381 x 313 mm
Packing Size 500 x 180 x 450 mm
Gross Weight 8 KG
Power and Environment
Operating Temperature -20~70°C
Storage Temperature -30~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC IN 9V~36V
Power Consumption ≦45W

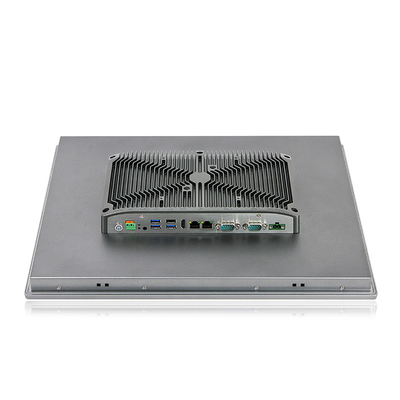

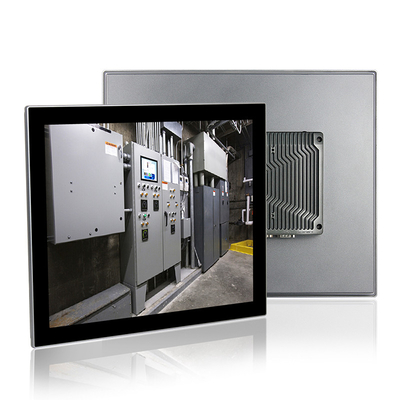

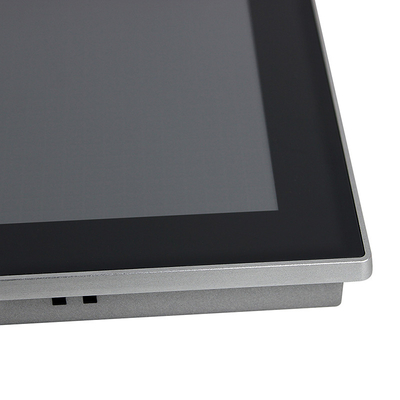

Windows Embedded Panel PC I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD 0

Windows Embedded Panel PC I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD 1Windows Embedded Panel PC I3 I5 I7 Industrial Computer Hmi DDR4 4G RAM 128G SSD 2
Windows Embedded Panel Pc Packing List:

1x PPC-J012SAR Series Industrial Panel PC

1x Utility DVD Driver

8x Embedded Buckles
1x Power Adaptor

Windows Embedded Panel Pc Industrial Automation:
Industrial automation control is often considered one of the important aspects of Industry 4.0. IoT, real-time monitoring, data collection and AI capabilities are important components of Industry 4.0. IoT provides the ability to allow vertical and horizontal communication between automated devices, real-time monitoring, data collection and artificial intelligence are also functions required to enter Industry 4.0. HMI provides data transparency and accessibility, integrating various automation equipment and production lines. The production data is transmitted to the management control center through a high-speed network, and is matched with the MES manufacturing execution system as a reference for the company's decision-making. Industrial computers play a key role in industrial automation. In addition to visualizing process or collected information, core computing and data analysis will effectively assist in optimizing production capacity and improving market competitiveness.
