Product Details:
|
| Name: | Industrial Embedded Box Mini PC | CPU: | Intel Core I3-8145U Dual Core 2.1GHz |
|---|---|---|---|
| Chipsets: | Intel 8th Skylake-U SOC | Memory: | DDR4L 2400MHz 4GB, Up To 32GB |
| Harddisk: | 1 X M.2 120G SSD / ( 250G / 500G SSD) Optional | Operation System: | Windows 10, Linux, Ubuntu, Debian |
| High Light: | i3-8145U CPU Industrial Embedded Box PC,RoHS Industrial Embedded Box PC,TPM2.0 Industrial Embedded PC |
||

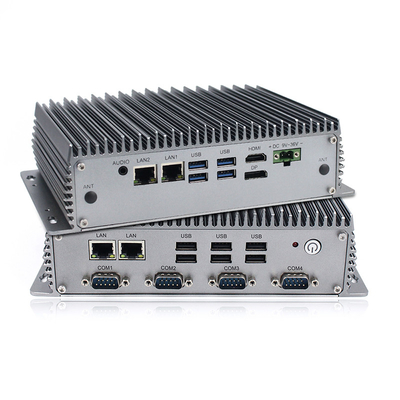

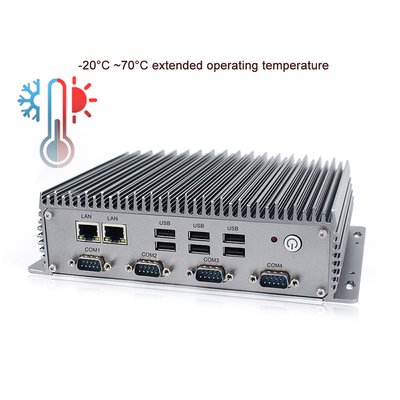

i3-8145U CPU Industrial Embedded Box Mini PC with 4 x RS232
1. Product Features
| EFIC-1000OC | |
| System | |
| CPU | Intel Core i3-8145U Dual Core 2.1GHz |
| L2 Cache | 4MB |
| Chipsets | Intel 8th Skylake-U SOC |
| Memory | DDR4L 2400MHz 4GB, Up to 32GB |
| Harddisk | 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional |
| Graphics | Intel HD Graphics 620 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows 10, Linux, Ubuntu, Debian |
| I / O | |
| Display | 1 x DP / 1 x HD-MI |
| LAN | 4 x LAN |
| USB | 6 x USB2.0 / 4 x USB3.0 |
| COM | 4 x RS232 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| Institutional | |
| Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm |
| Product Dimension | 220 x 145 x 62 mm |
| Packing Size | 360 x 180 x 320 mm |
| Gross Weight | 4.0 KG |
| Power and Environment | |
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 9V~36V |
| Power Consumption | ≦20W |
2. Applications:
> Automatic system: intelligent self-service terminal, intelligent retail terminal, O2O smart device, robot equipment; > Public
Places: subway, airports, stations, gas stations, toll stations, bookstores, parks, exhibition halls, stadiums, museums,
convention centers, ticket agencies, HR market, lottery centers;
> Business Organizations: supermarket, large-scale shopping malls, exclusive agency, chain shops, large-scale sales, star-rated
hotels, restaurants, travel agencies, pharmacy;
> Financial Organizations: Banks, negotiable securities, funds, insurance companies, pawnshops; > Non-profit Organizations:
Telecommunications, post offices, hospital, schools;
> Real Estate Property: Apartments, villas, offices, commercial buildings, model rooms, property brokers;
> Entertainments: Movie theaters, fitness halls, country clubs, clubs, massage rooms, bars, cafes, Internet bars, beauty shops,
golf course;
3. FAQ
A) Are you a manufacturer? What do you mainly supply?
Yes, we are an industrial-grade consumer electronics factory for more than 10 years. The main products are industrial tablet computers, industrial control computers, fanless embedded industrial control hosts, etc.
B) Sampling time?
Existing projects: within 7 days.
C) Can you make our brand on your product?
Yes. If you can meet our MOQ, we can print your logo on the product and packaging.
D) Can you make your products in our colors?
Yes, product color can be customized if you can meet our MOQ.
E) How to guarantee the quality of your products?
1) Strict testing in the production process.
2) Strictly test and inspect the product before shipment to ensure that the product is packaged in good condition.
