Product Details:
|
| Waterproof Rating: | Front IP65 | Led Panel: | 12.1" Led |
|---|---|---|---|
| Resolution: | 1280 X 800 | CPU: | Intel Core I5-8265U Dual Core 1.6GHz |
| RAM: | DDR4L 2400MHz 4GB, Up To 64GB | HDD: | 1 X M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| I/O Ports: | 1xHDMI, 4xUSB, 2xLAN, 2xCOM(RS232/422/485 Freely Switched) | Touchscreen: | Capacitive Touch / Resistive Touch |
| High Light: | I5 Processor Industrial Touch Panel PC,TPM2.0 Industrial PC With Touchscreen,PCAP Touch Industrial PC With Touchscreen |
||
Industrial Touch Panel PC Features:
| PPC-5012WAC | |
| System | |
| CPU | Intel Core i5-8265U Quad Core 1.6GHz |
| L3 Cache | 6MB |
| Memory | DDR4L 2400MHz 4GB, Up to 64GB |
| Harddisk | 1 x M.2 120G SSD / (250G / 500G / 1TB SSD) Optional |
| Graphics | Intel HD Graphics 620 |
| Network | Intel® I211-AT GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows 10 / 11 / Linux, Ubuntu, Debian |

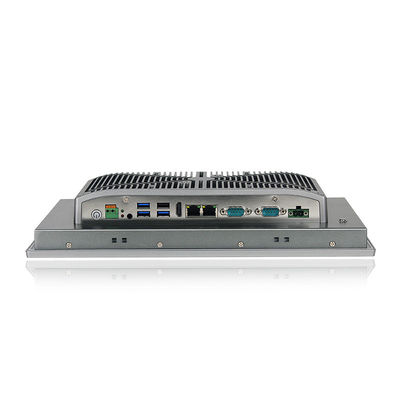

| I / O | |
| Video | 1 x H-DMI |
| LAN | 2 x LAN |
| USB | 3 x USB 3.0 / 1 x USB 2.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 12.1" Led |
| Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Display Brightness | 600 cd/m2 |
| Contrast Ratio | 1000:1 |
| Backlight Lifetime | 50000 Hr (min.) |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | Multi-Touch PCAP |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥7H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | High-strength Al-alloy |
| Color | Gray |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP65 / IP66 |
| Product Dimension | 314 x 216 x 62 mm |
| Cut-out Size | 300 x 203 mm |
| Packing Size | 450 x 170 x 350 mm |
| Gross Weight | 5 KG |
| Power and Environment | |
| Operating Temperature | -20~70°C |
| Storage Temperature | -30~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC IN 9V~36V |
| Power Consumption | ≦35W |
Features:

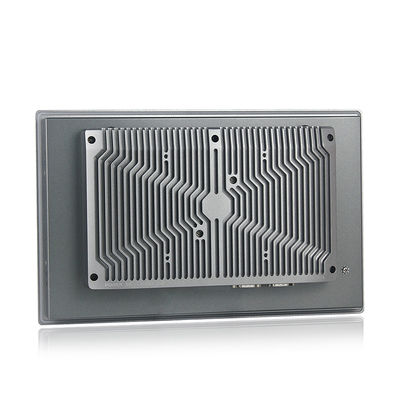

The industrial panel pc support panel embedded, VESA and wall-mounted installation, convenient installation and maintenance. Fanless design to ensure computer more stable operating. The internal heat of the system is rapidly dissipated by the external surface heat sink, enabling it to adapt to more severe environment; It can be widely apply for Factory automation, machine manufacturing, CNC equipment, textile equipment, intelligent power, food traceability etc monitoring and control system.
The panel pc is compatible with Windows 10, Linux OS and embedded OS, also can support customized OS which is based on above systems and install industrial automation configuration software to comprise powerful HMI.
Areas of Application:
Food Processing
Dairy Production
Pharmaceutical Manufacturing
Agriculture and Horticulture
Chemical plants
Mining
Transport
Forestry
Interactive Kiosks
