Product Details:
|
| IP Rating: | IP69K | Panel Size: | 15" Led |
|---|---|---|---|
| Resolution: | 1024 X 768 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
| RAM: | 4GB, Up To 8GB | Harddisk: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| I/O Port: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive Touch |
| Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
| High Light: | VESA Mounting Industrial Panel PC,Industrial Panel PC IP69K,TFT LED Stainless Steel Panel PC |
||

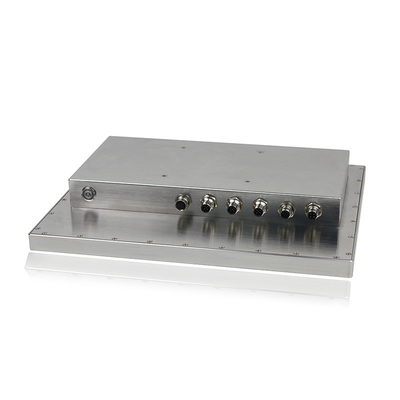

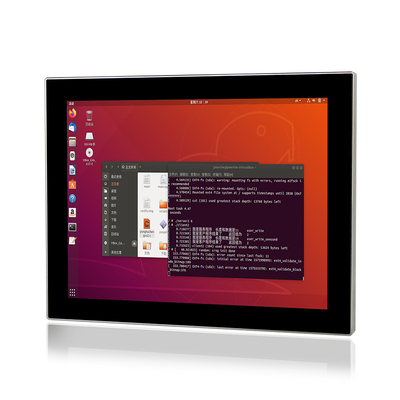

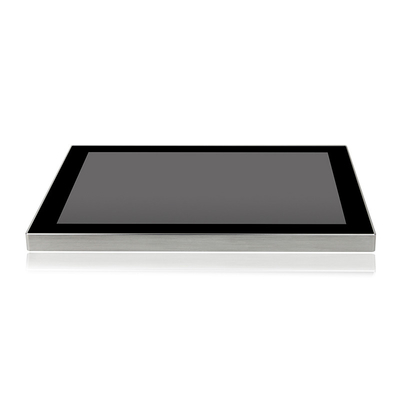

Stainless Steel Panel PC Features:
1. 15" TFT LED, resolution 1024 x 768, capacitive touch
| WPC-J015SCC | |
| System | |
| CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Bay Trail SOC |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| Graphics | Intel HD Graphics |
| Network | Intel 82583V 1000 Mbps port |
| Audio | Realtek ACL662 Audio controller |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX |
| I / O | |
| VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) |
| USB | 3 x USB2.0 / 1 x USB3.0 ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 15" Led |
| Resolution | 1024 x 768 |
| Aspect Ratio | 4:3 |
| Display Brightness | 350 cd/m2 |
| Contrast Ratio | 1000:1 |
| Colors | 16.7M , 72% NTSC |
| Response Time | 30 (Typ.)(Tr+Td) ms |
| Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥6H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | Stainless Steel SUS304 |
| Color | Polished brushed surface |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP66 / IP69K |
| Product Dimension | 360 x 284 x 55 mm |
| Cut-out Size | / |
| Packing Size | 460 x 180 x 400 mm |
| Gross Weight | 9.0 KG |
| Power and Environment | |
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 12V~24V / optional(+9V~36V) |
| Power Consumption | ≦30W |
The waterproof system is cleaned by pressure water frequently. Its fanless, noiseless design and IP66/IP69K waterproof housing enable the system to work more efficiently and reliably, preventing the dust, dirt, water, oil and chemicals. It can prevent bacterial growth and rust accumulation caused by long-term use.
The WPC waterproof series of multi-touch industrial panel PCs developed by QYT plays an important role in it. It’s with excellent display performance, easy operation, rich IO functions, and can handle weighing, labeling, packaging, processing inspection and batch number management to improve efficiency and traceability.
Applications:
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
