Product Details:
|
| Product Name: | 19 Inch Waterproof Industrial Panel Pc | Resolution: | 1280 X 1024 |
|---|---|---|---|
| Aspect Ratio: | 4:3 | CPU: | Intel Celeron Dual Core 3855U 1.6GHz |
| Touch Screen Type: | 5 Wire Resistive Touch | Working Voltage: | DC 12V~24V / Optional(+9V~36V) |
| High Light: | 19'' Waterproof Touch Screen PC,Resistive touch Waterproof Touch Screen PC,3855U Windows Industrial pc |
||

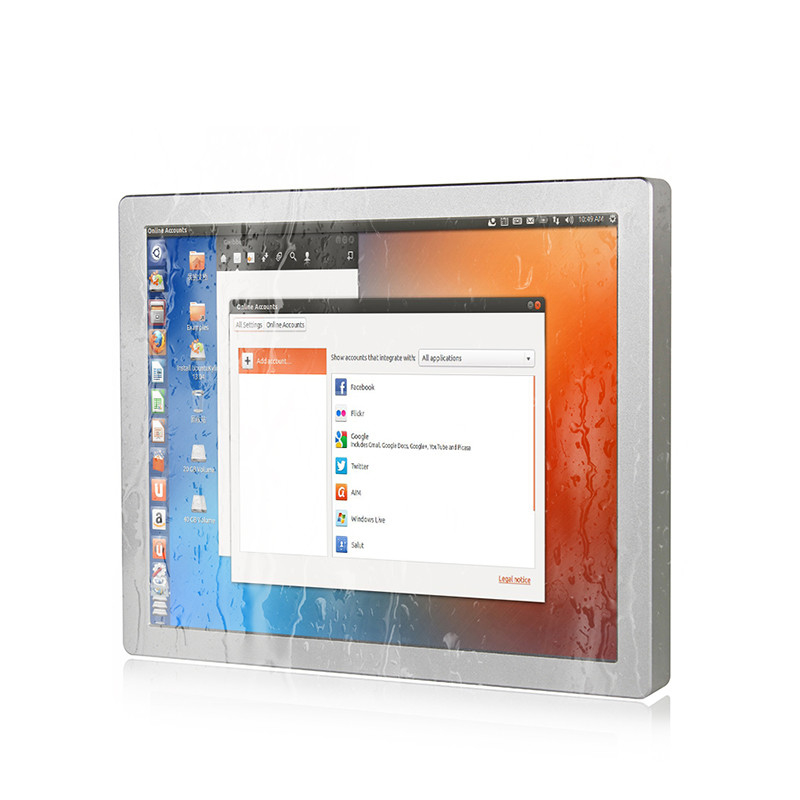

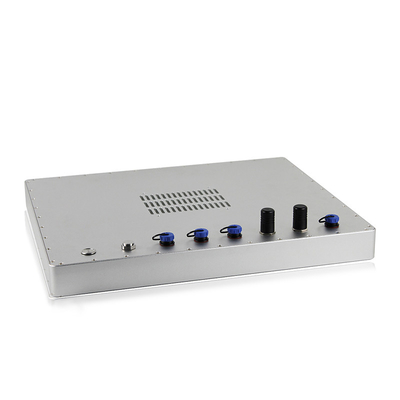

19'' Waterproof Touch Screen Windows Industrial pc with 4G RAM 32G SSD
1. Product Features
◆Intel Core J1900/3855U/I3/I5 series CPU
◆DDR4L 2133MHz 4GB, Up to 16GB
◆11 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
◆4*USB (built-in)
◆2 x RS-232 / 422 / 485 Optional
◆support 4G/5G/WIFI/ Bluetooth module
◆DC 12V~24V / optional(+9V~36V) power supply, with anti-reverse connection and over-current protection
| WPC-M019SSAR | |
| System | |
| CPU | Intel Celeron Dual Core 3855U 1.6GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Skylake-U SOC |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| Graphics | Intel HD Graphics 510 |
| Network | Intel® i211 1000 Mbps port |
| Audio | Realtek ACL662 Audio controller |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX |
| I / O | |
| VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) |
| USB | 4 x USB ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 19" Led |
| Resolution | 1280 x 1024 |
| Aspect Ratio | 4:3 |
| Display Brightness | 450 cd/m2 |
| Contrast Ratio | 1000:1 |
| Colors | 16.7M , 86% NTSC |
| Response Time | 7/3 (Typ.)(Tr/Td) ms |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | 5 Wire Resistive touch |
| Transmittance | >80% |
| Response Time | <10ms |
| Surface Hardness | ≥3H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3500W |
| Institutional | |
| Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP67 / IP69K |
| Product Dimension | 430 x 355 x 42 mm |
| Cut-out Size | / |
| Packing Size | 500 x 180 x 450 mm |
| Gross Weight | 8.0 KG |
| Power and Environment | |
| Operating Temperature | -20°C~70°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 12V~24V / optional(+9V~36V) |
| Power Consumption | ≦30W |
2. About us
Innoyond's industrial panel PCs are FCC, CE, IP69k certified* to ensure durability and reliability in dense manufacturing locations and deliver optimal performance, offering Intel J1900, i3, i5, i7 processors and SSD (Solid State hard disk) in the field of automation.
Innoyond provides system stability with a fanless and internal design for survivability. Using our own hardware boards, which are designed to withstand harsh field environments, we ensure operability in a variety of industrial sites. It is also suitable for FPD, clean room, semiconductor production, green IT system construction. Our waterproof PC includes 2 Gigabit Ethernet ports, 2 serial ports* and up to 4 USB ports
3. OEM SERVICE
1)Operation System
Do you want to make the device with your own booting logo? Do you want to short the booting time and reduce useless program of pc? Let us help you to achieve the goal.
2)Appearance
For example, the color, size, structure, and so on, make it different from others, make it as your own things
3)Configuration
Tell us the requirements of I/O and devices‘ usage scenarios, let us help you to select the best option for your business.
