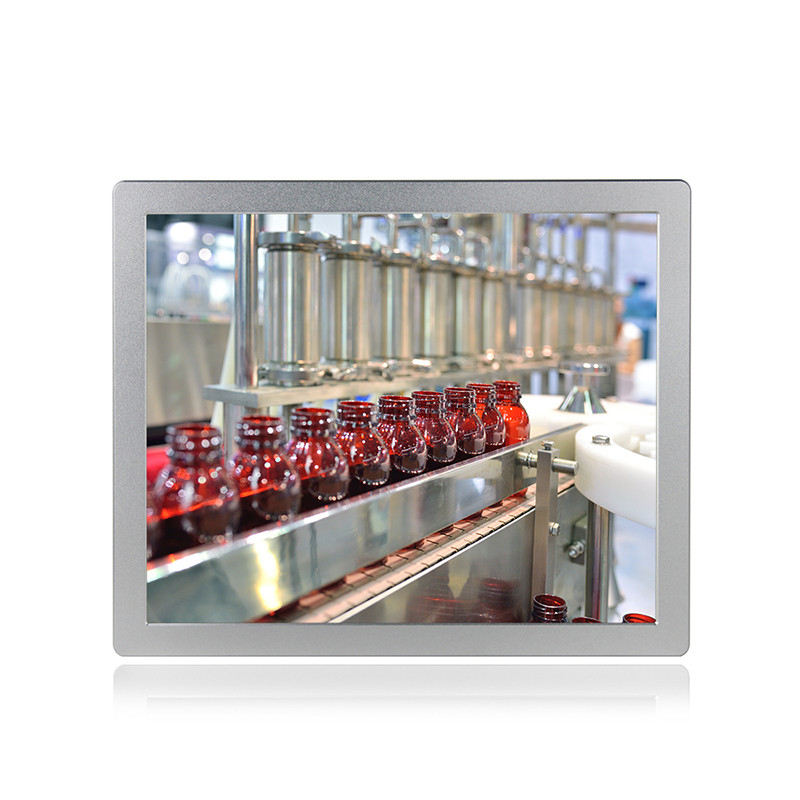

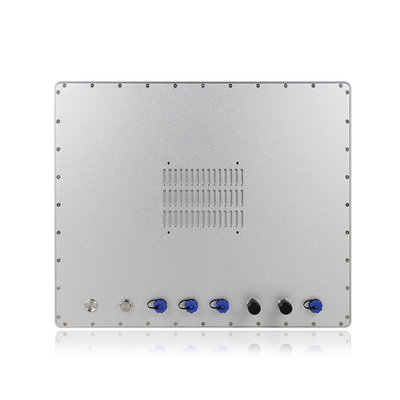

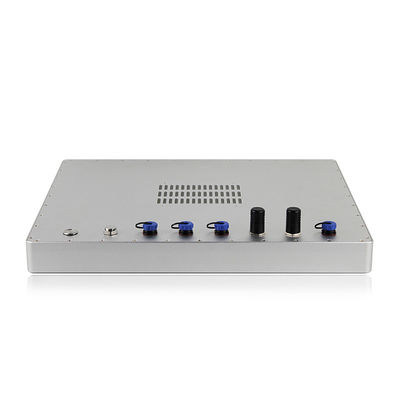

6th Gen Industrial Panel PC 19 Inch IP69K Waterproof Resistive Touch

6th Gen Industrial Panel PC 19 Inch IP69K Waterproof Resistive Touch
6th Gen Industrial Panel PC 19 Inch IP69K Waterproof Resistive Touch 6th Gen Industrial Panel PC 19 Inch IP69K Waterproof Resistive Touch 6th Gen Industrial Panel PC 19 Inch IP69K Waterproof Resistive Touch

Large Image :  6th Gen Industrial Panel PC 19 Inch IP69K Waterproof Resistive Touch

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Innoyond
Certification: CE, FCC, RoHS, IP65
Model Number: WPC-O019SAR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

6th Gen Industrial Panel PC 19 Inch IP69K Waterproof Resistive Touch

Description
Chipsets: Intel 6th Skylake-U SOC CPU: Intel Core I3-6100U Dual Core 2.4GHz
Panel Size: 19" Led Resolution: 1280 X 1024
Touch Screen Type: 5 Wire Resistive Touch Operation System: Windows7 / 8 / 10, Linux, Unix, QNX
High Light:

Resistive Touch industrial Panel PC

,

industrial Panel PC IP69K

,

Resistive touch panel pc 19 inch

6th Gen 19 inch industrial PC IP69K waterproof Resistive touch



1. Industrial waterproof computer, size 10~24 inches optional
1) 6th generation industrial panel PC
2) Lightweight/beautiful/strong heat dissipation
3) Fully enclosed fanless design of the whole machine
4) The whole machine is IP69K dustproof and waterproof standard
5) Stable performance, support all day operation
6) Aluminum alloy body, compact shape
7) Real-time performance / scalability / EMC compatibility and other performance



WPC-O019SAR

System

CPU

Intel Core i3-6100U Dual Core 2.4GHz

L2 Cache

3MB

Chipsets

Intel 6th Skylake-U SOC

Memory

DDR4L 2133MHz 4GB, Up to 16GB

Harddisk

1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional

Graphics

Intel HD Graphics 520

Network

Intel® i211 1000 Mbps port

Audio

Realtek ACL662 Audio controller

Operation System

Windows7 / 8 / 10, Linux, Unix, QNX

I / O

VGA

1 x VGA / 1 x HD-MI ( Optional )

LAN

1 x LAN ( Optional )

USB

4 x USB ( Optional )

COM

2 x RS232 ( Optional )

Wireless Network

WiFi + Bluetooth ( Optional )

Other I/O Interface

1 x Power Switch

LCD Panel

Panel Size

19" Led

Resolution

1280 x 1024

Aspect Ratio

4:3

Display Brightness

450 cd/m2

Contrast Ratio

1000:1

Colors

16.7M , 86% NTSC

Response Time

7/3 (Typ.)(Tr/Td) ms

Viewing Angle

85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D )

Touch screen

Touch Screen Type

5 Wire Resistive touch

Transmittance

>80%

Response Time

<10ms

Surface Hardness

≥3H

Supply Voltage

5.0V DC

Touch Life

≧ 3500W

Institutional

Material

Aluminum Alloy Shell

Color

Silver / Black ( optional )

VESA Mounting

VESA: 100 x 100 mm

Waterproof Rate

IP67 / IP69K

Product Dimension

430 x 355 x 42 mm

Cut-out Size

/

Packing Size

500 x 180 x 450 mm

Gross Weight

8.0 KG

Power and Environment

Operating Temperature

-20°C~70°C

Storage Temperature

-20~80°C(-22~176°F)

Relative Humidity

5%~95%@40°C, non-condensing

Vibration Range

5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

External Power Supply

AC 100 - 240V~50/60Hz,1.5A

Working Voltage

DC 12V~24V / optional(+9V~36V)

Power Consumption

≦30W



6th Gen Industrial Panel PC 19 Inch IP69K Waterproof Resistive Touch 0

6th Gen Industrial Panel PC 19 Inch IP69K Waterproof Resistive Touch 1



2. About us

Innoyond offers a wide range of high performance waterproof industrial touch screen computers. Waterproof computers are used to operate efficiently and reliably in a variety of industrial applications. It integrates an embedded energy efficient Intel fanless CPU. It supports industry-leading multi-touch touch or resistive touch screen, rich I/O including Wifi, Bluetooth, LAN, COM, USB, VGA/HDMI/Display ports, built-in speaker. Innoyond's tablets are compatible with Windows7/8/10, Linux, Unix, QNX.



3. Payment Terms

1)We support western Union, T/T, L/C at sight.
2)Payment terms: 50% deposit by T/T when order confirmed, the balance shall be paid before the shipment by T/T.
3)Lead time: 3-5 working days according to the order quantity.
4)The price: based on FOB Shenzhen, we will offer best discount according to order quantity.
5)Warranty:One year.
6)Provide service: OEM & ODM service for batch orders, to print logo and design box.
