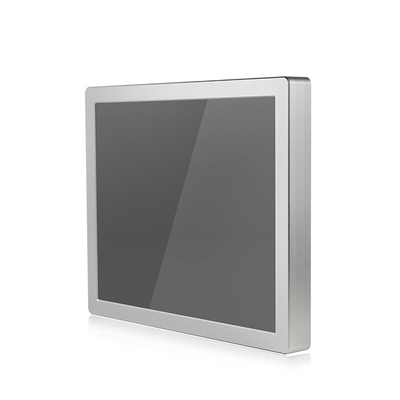

VESA Mounting 19" IP68 Waterproof 1000nits Sunlight Readable Resistive Touchscreen Industrial PC
About US:
QYT is the leading solutions provider in Edge Computer & HMI System Platform.
After 10 years of unremitting pursuit and experience accumulation, QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial personal computer ( IPC) and embedded fanless industrial computers (EFIC).
Waterproof Touch Screen PC Features:
1. 19" TFT LED, resolution 1280 x 1024
2. 5 wire resistive touch screen,
3. Intel Bay trail j1900 CPU: 2.0GHz, Waterproof Touch Screen PC

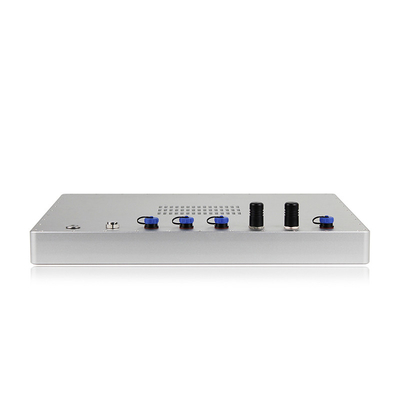

4. Multi I/O Interface optional: VGA/HDMI/LAN/USB/COM
5. OS: Win7/8/10/Linux/Ubuntu
6. DC12V~24V Input,(+9V～36V)wide voltage input optional
| WPC-J019SAR | |
| System | |
| CPU | Intel Celeron Quad Core J1900 2.0GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Bay Trail SOC |
| Memory | DDR3L 1333MHz 4GB, Up to 8GB |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| Graphics | Intel HD Graphics |
| Network | Intel 82583V 1000 Mbps port |
| Audio | Realtek ACL662 Audio controller |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX |
| I / O | |
| Video | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 1 x LAN ( Optional ) |
| USB | 4 x USB2.0 ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 19" Led |
| Resolution | 1280 x 1024 |
| Aspect Ratio | 4:3 |
| Display Brightness | 450 cd/m2 |
| Contrast Ratio | 1000:1 |
| Colors | 16.7M , 90% NTSC |
| Response Time | 7/3 (Typ.)(Tr/Td) ms |
| Viewing Angle | 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | 5 Wire Resistive touch |
| Transmittance | >80% |
| Response Time | <10ms |
| Surface Hardness | ≥3H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3500W |
| Institutional | |
| Material | Aluminum Alloy Shell |
| Color | Silver / Black ( optional ) |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP67 / IP69K |
| Product Dimension | 430 x 355 x 42 mm |
| Cut-out Size | / |
| Packing Size | 500 x 180 x 450 mm |
| Gross Weight | 8.0 KG |
| Power and Environment | |
| Operating Temperature | -20°C~70°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 12V~24V / optional(+9V~36V) |
| Power Consumption | ≦30W |
OEM/ODM
1. size from 7''-24'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
Application:

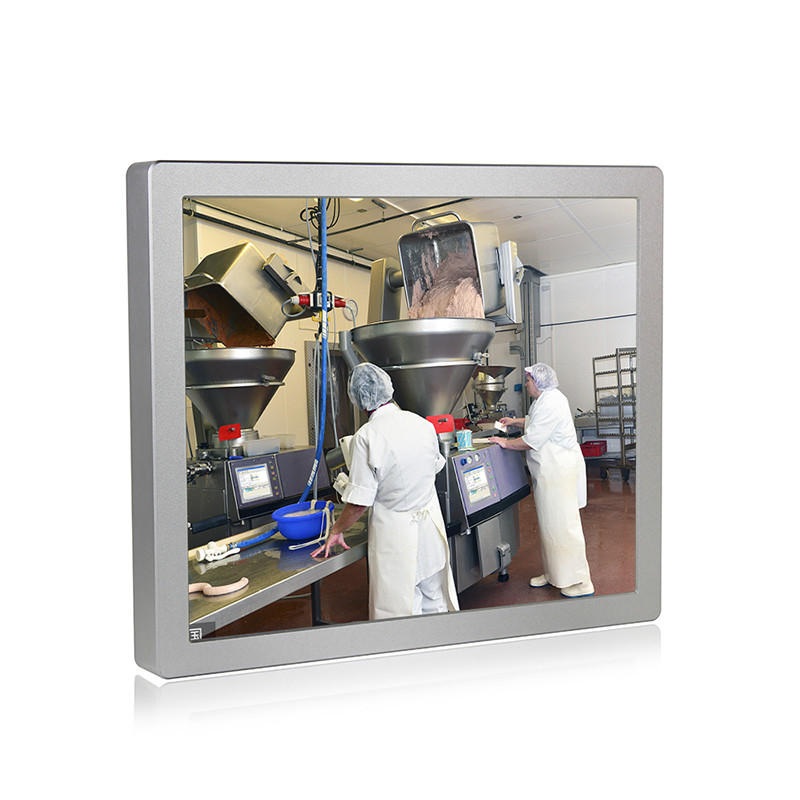

The waterproof pc is ideal for applications such as marine/Sailing boat, medical equipment, humid production equipment, food Industry, chemical manufacturing and other outdoor applications.
QYT's WPC series is a high performance rugged Waterproof PC computer that is completely sealed, surviving liquids, chemicals, dust and dirt intrusion and meeting IP69K environmental specifications.
This durable environmentally sealed Panel PC features a powerful Intel Core i3/i5 Processor, solid state drives (SSD) and operates from a wide range of DC input power (9 – 36VDC) making it a perfect fit for demanding applications within the Industrial, Commercial, Scientific Research, Military, Public Safety, Utility, Marine, Transportation, Mining and Telecommunications markets.
