Product Details:
|
| CPU: | Intel Celeron J6412 Quad Core 2.0GHz | Memory: | DDR4L 3200MHz 4GB, Up To 32GB |
|---|---|---|---|
| Harddisk: | 1 X M.2 120G SSD / ( 250G / 500G SSD) Optional / 1 X 2.5" SATA | I/O Port: | 1*HDMI, 1*DP, 3*LAN, 10*USB, 6*COM |
| Power Input: | DC 9V～36V Voltage Input | Operating System: | Windows 10, Linux, Ubuntu, Debian |
| Power Consumption: | ≦15W | Working Time: | 7*24h |
| High Light: | 3XLAN Industrial Embedded Box PC,J6412 Industrial Embedded Box PC,Embedded Fanless Box PC |
||
Fanless designed industrial computer, there is no need to worry about moving part failures. The system passively dissipates heat from processors and other vital computer components. Fanless systems can be fully enclosed, keeping dust and debris out of the system. A fanless computer is extremely quiet, making it ideal for situations such as the main computer monitoring and control of Industrial Automation, Mechanics Solution, CNC Equipment, Textile Equipment, Intelligent power solution, Food Traceability and so on.
The embedded fanless industrial pc is compatible with Windows, Linux OS and embedded OS,also can support customized OS which is based on above systems and install industrial automation configuration software to comprise powerful HMI.

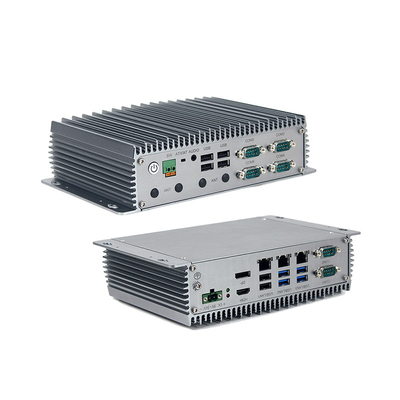

Industrial Embedded Box PC Features:
| EFIC-2000CA | |
| System | |
| CPU | Intel Celeron J6412 Quad Core 2.0GHz |
| L2 Cache | 1.5 MB |
| Chipsets | Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, Up to 32GB |
| Harddisk | 1 x M.2 120G SSD / ( 250G / 500G SSD) Optional / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL662 Audio controller |
| TPM | TPM 2.0 |
| Operation System | Windows 10, Linux, Ubuntu, Debian |
| I / O | |
| VIDEO | 1 x DP / 1 x HD-MI |
| LAN | 3 x LAN |
| USB | 6 x USB2.0 / 4 x USB3.0 |
| COM | 2 x RS-232 / 4 x RS-232 / 422 / 485 |
| DIO | DIO 8 Bits ( 4 In / 4 Out ) Optional |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | WiFi / Bluetooth ( 4G / 5G Optional ) |
| Power Mode Switch | AT/ATX |
| Other I/O Interface | 1 x Power Switch |
| Institutional | |
| Material | Aluminum Alloy Shell |
| Color | Grey / Silver / Black ( optional ) |
| VESA Mounting | 208 x 100 mm / 208 x 60 mm |
| Product Dimension | 220 x 145 x 62 mm |
| Packing Size | 360 x 180 x 320 mm |
| Gross Weight | 4.0 KG |
| Power and Environment | |
| Operating Temperature | -20~70°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 9V~36V |
| Power Consumption | ≦15W |
Provide full control and communication functions:
Advantages:
High performance to price ratio
All material good quality and good brand
ODM,OEM service
According to customer demand to find the most appropriate personalized hardware solutions for customer,
help you quickly launch your own embedded production
Industrial embedded PC computers with fanless operation avoid dust ingress whilst operating in industrial environments. The fanless operation on these embedded box pcs also increases shock resistance, reliability and durability, plus extended temperature ranges can be achieved. These industrial pcs are quieter than computers using fans and in industries such as food and pharma, the fanless operation avoids the circulation of dirt and pathogens around the environment.
