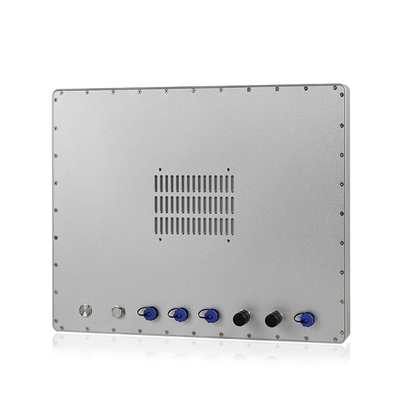

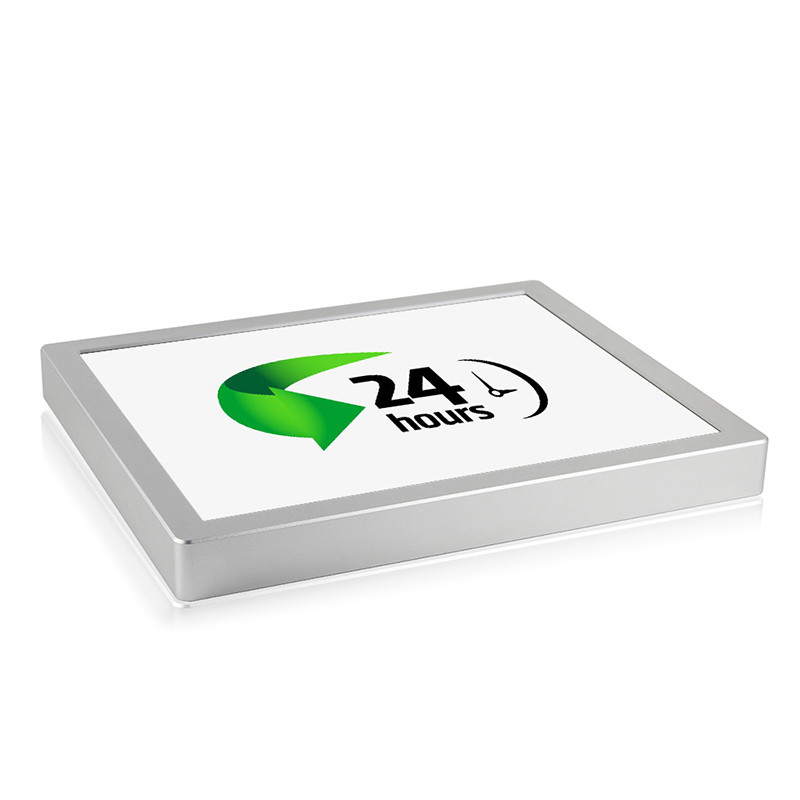

Waterproof Industrial Panel PC 19'' Square Screen 4/3 With Aluminum Alloy

Waterproof Industrial Panel PC 19'' Square Screen 4/3 With Aluminum Alloy
Waterproof Industrial Panel PC 19'' Square Screen 4/3 With Aluminum Alloy Waterproof Industrial Panel PC 19'' Square Screen 4/3 With Aluminum Alloy

Large Image :  Waterproof Industrial Panel PC 19'' Square Screen 4/3 With Aluminum Alloy

Product Details:
Place of Origin: Guangdong, China
Brand Name: QYT
Certification: CE, FCC, RoHS, IP68, IP69K
Model Number: WPC-P019SAR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T, L/C, Western Union, MoneyGram, D/A, D/P
Supply Ability: 5000 Set/Sets per Month

Waterproof Industrial Panel PC 19'' Square Screen 4/3 With Aluminum Alloy

Description
IP Rating: IP69K Panel Size: 19" Led
Resolution: 1280 X 1024 Processor: Intel Core I5-6200U Dual Core 2.5GHz
I/O Interface: VGA/HD-MI/LAN/USB/RS232/RS485 Operating System: Win7/8/10/Linux/Ubuntu
High Light:

Waterproof Industrial Panel PC 19''

,

Aluminum Alloy shell Industrial Panel PC

Waterproof Industrial Pc Panel 19'' Square Screen 4:3 With Aluminum Alloy

Industrial Automation:

Industrial automation control is often considered one of the important aspects of Industry 4.0. IoT, real-time monitoring, data collection and AI capabilities are important components of Industry 4.0. IoT provides the ability to allow vertical and horizontal communication between automated devices, real-time monitoring, data collection and artificial intelligence are also functions required to enter Industry 4.0. HMI provides data transparency and accessibility, integrating various automation equipment and production lines. The production data is transmitted to the management control center through a high-speed network, and is matched with the MES manufacturing execution system as a reference for the company's decision-making. Industrial computers play a key role in industrial automation. In addition to visualizing process or collected information, core computing and data analysis will effectively assist in optimizing production capacity and improving market competitiveness.



HMI Panel PC Features:

1. 19" TFT LED

2. Resistive touch screen, high precision, durable, anti-interference

3. Intel Core i5-6200U Dual Core 2.5GHz

4. Full IP66/69K sealed to providing 360 degree protection

5. Flexible, reliable, and rugged for open platform HMI/SCADA

6. CE, FCC, RoHS, IP69K Compliance



WPC-P019SAR
System
CPU Intel Core i5-6200U Dual Core 2.5GHz
L2 Cache 3MB
Chipsets Intel 6th Skylake-U SOC
Memory DDR4L 2133MHz 4GB, Up to 16GB
Harddisk 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional
Graphics Intel HD Graphics 520
Network Intel® i211 1000 Mbps port
Audio Realtek ACL662 Audio controller
Operation System Windows7 / 8 / 10, Linux, Unix, QNX
I / O
Video 1 x VGA / 1 x HD-MI ( Optional )
LAN 1 x LAN ( Optional )
USB 4 x USB2.0 ( Optional )
COM 2 x RS232 ( Optional )
Wireless Network WiFi + Bluetooth ( Optional )
Other I/O Interface 1 x Power Switch
LCD Panel
Panel Size 19" Led
Resolution 1280 x 1024
Aspect Ratio 4:3
Display Brightness 450 cd/m2
Contrast Ratio 1000:1
Colors 16.7M , 90% NTSC
Response Time 7/3 (Typ.)(Tr/Td) ms
Viewing Angle 85 / 85 / 80 / 80 (CR≥10) ( L / R / U / D )
Touch screen
Touch Screen Type 5 Wire Resistive touch
Transmittance >80%
Response Time <10ms
Surface Hardness ≥3H
Supply Voltage 5.0V DC
Touch Life ≧ 3500W
Institutional
Material Aluminum Alloy Shell
Color Silver / Black ( optional )
VESA Mounting VESA: 100 x 100 mm
Waterproof Rate IP67 / IP69K
Product Dimension 430 x 355 x 42 mm
Cut-out Size /
Packing Size 500 x 180 x 450 mm
Gross Weight 8.0 KG
Power and Environment
Operating Temperature -20~70°C
Storage Temperature -20~80°C(-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis
External Power Supply AC 100 - 240V~50/60Hz,1.5A
Working Voltage DC 12V~24V / optional(+9V~36V)
Power Consumption ≦30W


Waterproof Industrial Panel PC 19'' Square Screen 4/3 With Aluminum Alloy 0Waterproof Industrial Panel PC 19'' Square Screen 4/3 With Aluminum Alloy 1Waterproof Industrial Panel PC 19'' Square Screen 4/3 With Aluminum Alloy 2



Industrial Panel PC are industrial control computers specially designed for industrial use.

Their basic performance and compatibility are similar to those of commercial computers.



But Industrial Panel PC focus more on stability in different environments, such as beverage production line control, automotive Production line control, etc.

It requires stability in harsh environments, such as dust-proof, waterproof, anti-static, etc.



Industrial Panel PCs do not require the current highest performance, but only meet the requirements of the system, and must meet the reliability and stability requirements in the industrial environment. Otherwise, if the production line encounters a computer crash, it may cause serious losses. So the standard values required by Panel PCs must meet strict specifications and scalability.



Applications

The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
