Product Details:
|
| IP Rating: | IP68 Waterproof | Panel Size: | 13.3" FHD Led |
|---|---|---|---|
| CPU: | Intel Celeron Dual Core 3855U 1.6GHz | Memory: | DDR4L 2133MHz 4GB, Up To 16GB |
| Harddisk: | 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional | Touch Screen Type: | 10 Point Capacitive Touch |
| Operation System: | Windows7 / 8 / 10, Linux, Unix, QNX | Working Voltage: | DC 12V~24V / Optional(+9V~36V) |
| High Light: | Vesa Wall Mounted IP67 Panel PC,IP67 Panel PC 13.3'',Waterproof Capacitive Touch Panel PC |
||

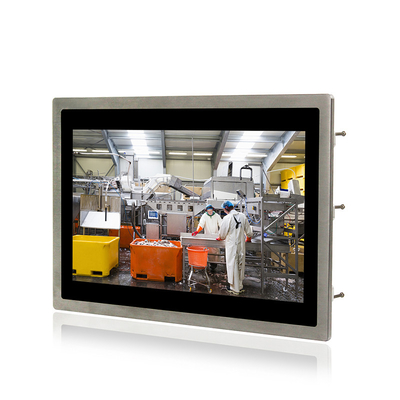

Waterproof Touch Computer 13.3 Widescreen Vesa Wall Mounted Capacitive Touch Screen
IPC is used for wireless modules and applied in a wide range of applications,includes Vehicle monitoring,Remote control,Remote sensing,Mini wireless,Wireless meter reading,Door control system,Pager,DAQ,ORFID,HMI, Contactless RFIC,Mini GPRS DTU,Safety and FPS, Meteorological& Hydrological monitoring, Biological signal acquisition,Robot,Wireless 232/485/422,Digital audio and Digital image,etc.
• Display sizes vary from 10 to 24 inches.
• Intel Celeron and CoreJ1900, 3855U, i3 and i5 CPU models.
• Screen resolution FHD / HD
• 2 Ethernet ports, 10/100/1000 Mbps.
• Support for Jumbo Frames and Wake-On-LAN
• Support for Windows and Linux.
• Data capacity up to 500G including mSATA.
• RAM SODIMM DDR4 up to 16 GB
• There are 4 USB ports.
• Use 24V DC power supply (+9V~36V optional).
• Operating temperature range -10~60 °C.
| WPC-M133WCC | |
| System | |
| CPU | Intel Celeron Dual Core 3855U 1.6GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Skylake-U SOC |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| Graphics | Intel HD Graphics 510 |
| Network | Intel® i211 1000 Mbps port |
| Audio | Realtek ACL662 Audio controller |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX |
| I / O | |
| VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) |
| USB | 4 x USB ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | |
| Panel Size | 13.3" FHD Led |
| Resolution | 1920 x 1080 |
| Aspect Ratio | 16:9 |
| Display Brightness | 400 cd/m2 |
| Contrast Ratio | 900:1 |
| Colors | 16.7M , 86% NTSC |
| Response Time | 50000 Hr (min.) |
| Viewing Angle | 85 / 85 / 85 /85 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥6H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | |
| Material | Stainless Steel SUS304 |
| Color | Polished brushed surface |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP66 / IP69K |
| Product Dimension | 350 x 234 x 55 mm |
| Cut-out Size | / |
| Packing Size | 460 x 180 x 400 mm |
| Gross Weight | 7.0 KG |
| Power and Environment | |
| Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 12V~24V / optional(+9V~36V) |
| Power Consumption | ≦25W |
In embedded systems,usually it requires a simple structure to control electronic devices and circuits. Some devices are controlled by CPU,while others need to be controlled by the signal input from CPU of IPC. Furthermore,many electronic devices only require ON/OFF configuration,like Lighting and Led Lighting. It’s complicate to control these devices with traditional serials or parallel ports. So Embedded Microprocessor will often provide”General Programmable I/O port or GPIO”. GPIO port requires two registers at least,one is for control and another is for data storage. Each bit of the data register is corresponding with pins of GPIO. Each pin can be configured through registers by the host to be an input, output, or bidirectional pin. (The related registers are IOPIN,IOSET,IOCLR,IODIR)
