J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC

Certification
China QYT industry Co.,Ltd certification
China QYT industry Co.,Ltd certification
Customer Reviews
I use these industrial embedded box pc for machine control, they work great, and the fanless design is a huge plus in an environment where small metal particles are everywhere. The Wi-Fi reception is excellent, continuous work, wide voltage DC 9V~36V and reverse connection protection, as in description, everything works perfect, good communication.

—— Lacroix Philippe

Great industrial touch panel pc easy to work with and well constructed, fast delivery, with windows 10, TPM2.0 Provide a secure encryption key. our equipment needed multiple USB inputs . And if I need to ever control any external devices by RS232 or RS422 or RS485 ports opens up so many possibilities. nice product, I highly recommend it.

—— Roy Smith

I'm Online Chat Now

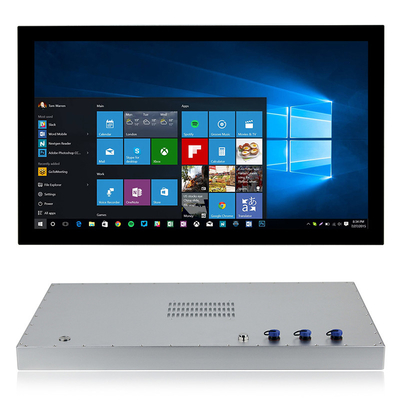

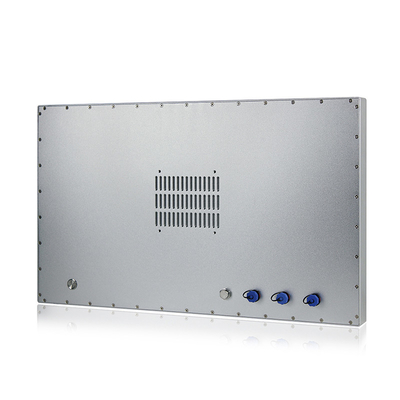

J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC

J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC
J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC

Large Image :  J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Innoyond
Certification: CE, FCC, RoHS, IP65
Model Number: WPC-J024WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC

Description
Panel Size: 23.8" FHD LED Resolution: 1920 X 1080
CPU: Ntel Celeron Quad Core J1900 2.0GHz Memory: DDR3L 1333MHz 4GB, Up To 8GB
Harddisk: 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional Operation System: Windows7 / 8 / 10, Linux, Unix, QNX
High Light:

J1900 industrial touch panel

,

Aluminum Shell IP69K Panel PC

,

TFT LCD IP69K Panel PC

J1900 24 inch industrial touch panel waterproof IP69k



1. Product features:

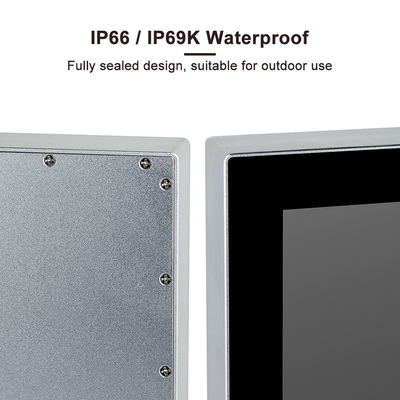

1. Aluminum Alloy Shell, IP69k Waterproof
2. 23.8" TFT LCD, Resolution 1920*1080, PCAP Touch
3. Intel Celeron Quad Core J1900 2.0GHz Industrial Waterproof Panel PC
4. 1xLAN, 2xCOM, Static Electricity & S Surge Protection
5. DC 12V~24V / optional(+9V~36V), Overvoltage & Reverse Connection Protection



WPC-J024WAC

System

CPU

Intel Celeron Quad Core J1900 2.0GHz

L2 Cache

2MB

Chipsets

Intel Bay Trail SOC

Memory

DDR3L 1333MHz 4GB, Up to 8GB

Harddisk

1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional

Graphics

Intel HD Graphics

Network

Intel 82583V 1000 Mbps port

Audio

Realtek ACL662 Audio controller

Operation System

Windows7 / 8 / 10, Linux, Unix, QNX

I / O

VIDEO

1 x H-DMI ( Optional )

LAN

1 x LAN ( Optional )

USB

4 x USB ( Optional )

COM

2 x RS232 ( Optional )

Wireless Network

WiFi + Bluetooth ( Optional )

Other I/O Interface

1 x Power Switch

LCD Panel

Panel Size

23.8" FHD LED

Resolution

1920 x 1080

Aspect Ratio

16:9

Display Brightness

350 cd/m2

Contrast Ratio

1000:1

Colors

16.7M , 74% NTSC

Backlight Lifetime

30000 Hr (min.)

Viewing Angle

89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )

Touch screen

Touch Screen Type

10 point capacitive touch

Transmittance

>90%

Response Time

<5ms

Surface Hardness

≥6H

Supply Voltage

5.0V DC

Touch Life

≧ 3000W

Institutional

Material

Aluminum Alloy Shell

Color

Silver / Black ( optional )

VESA Mounting

VESA: 100 x 100 mm

Waterproof Rate

IP66 / IP69K

Product Dimension

583 x 352.5 x 39 mm

Cut-out Size

/

Packing Size

730 x 220 x 530 mm

Gross Weight

18 KG

Power and Environment

Operating Temperature

-10~60°C

Storage Temperature

-20~80°C(-22~176°F)

Relative Humidity

5%~95%@40°C, non-condensing

Vibration Range

5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

External Power Supply

AC 100 - 240V~50/60Hz,1.5A

Working Voltage

DC 12V~24V / optional(+9V~36V)

Power Consumption

≦30W









J1900 24 Inch Industrial Touch Panel Waterproof IP69K Panel PC 0

2. FAQ
1. Are You a factory?
We are a factory providing OEM/ODM services.
2. When Can I get an offer?
We usually make an offer within 12 hours of receipt of your inquiry.
3. Can I order a sample to check the quality?
Yes, of course! You can order a sample to check the quality. If the product meets the requirements, the additional sample charge can be refunded in the next order.
4. Why Us?
We are a manufacturer and supplier with more than ten years experience. Competitive prices directly from factory suppliers. Excellent design and high quality. Fast Delivery on a global scale. Professional OEM/ODM and personalized customization.
5. How to order?
1) . Tell us the model, quantity, color and other special requirements. We will issue a proforma invoice for your approval.
2) . Production will be arranged upon receipt of your approval and payment or deposit.
3) . The goods will be delivered as per proforma invoice. What kind of inspection can you provide.
