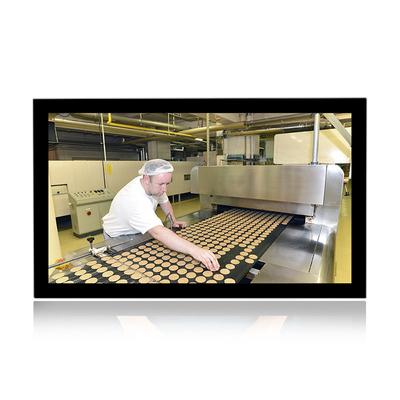

Waterproof 24 Inch HMI Display Touch Screen Industrial Panel PC Support Windows

Waterproof 24 Inch HMI Display Touch Screen Industrial Panel PC Support Windows
Waterproof 24 Inch HMI Display Touch Screen Industrial Panel PC Support Windows Waterproof 24 Inch HMI Display Touch Screen Industrial Panel PC Support Windows

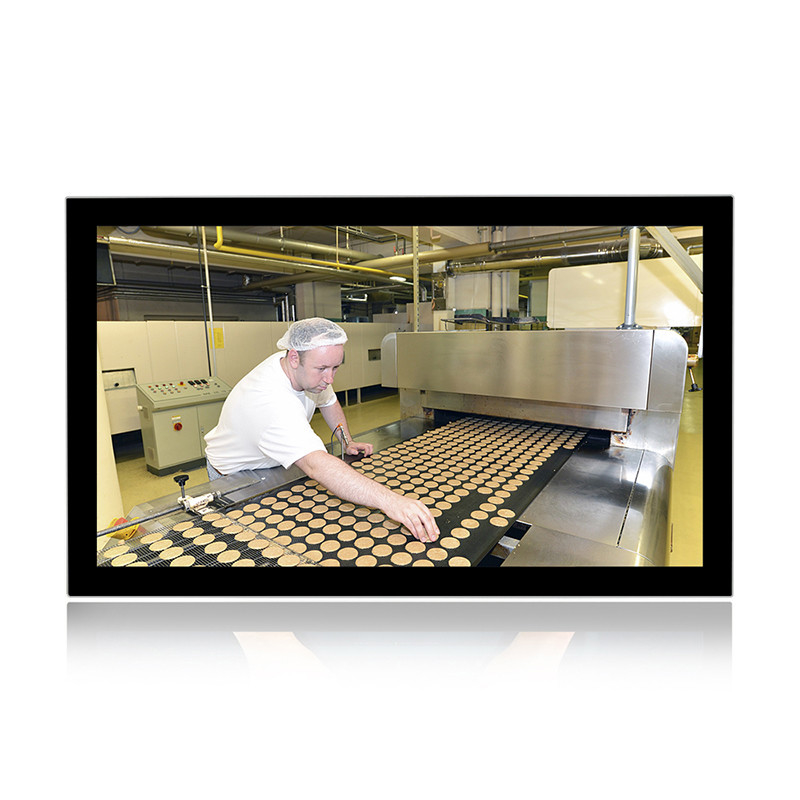

Large Image :  Waterproof 24 Inch HMI Display Touch Screen Industrial Panel PC Support Windows

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Innoyond
Certification: CE, FCC, RoHS, IP69k
Model Number: WPC-M024WAC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Waterproof 24 Inch HMI Display Touch Screen Industrial Panel PC Support Windows

Description
Name: 24 Inch Industrial Panel Pc Resolution: 1920 X 1080
CPU: Intel Celeron Dual Core 3855U 1.6GHz Memory: DDR4L 2133MHz 4GB, Up To 16GB
Harddisk: 1 X MSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional Operation System: Windows7 / 8 / 10, Linux, Unix, QNX
High Light:

Waterproof hmi display touch screen

,

24 Inch HMI Display Touch Screen

,

industrial panel pc ROHS

Waterproof 24 inch hmi display touch screen industrial pc support Windows



1. Key point:
* 23.8'' LED, 1920*1080 HD display
* 10 points capacitive touch
* Support WIFI/Bluetooth/RJ45 connection
* Support optional operating system
* 7/24 working, suitable for high-temperature environment
* CE, FCC, CCC, ROHS authentication
* Industrial level mainboard/CPU, optional J1900/3855U/i3/i5



WPC-M024WAC

System

CPU

Intel Celeron Dual Core 3855U 1.6GHz

L2 Cache

3MB

Chipsets

Intel 6th Skylake-U SOC

Memory

DDR4L 2133MHz 4GB, Up to 16GB

Harddisk

1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional

Graphics

Intel HD Graphics 520

Network

Intel 82583V 1000 Mbps port

Audio

Realtek ACL662 Audio controller

Operation System

Windows7 / 8 / 10, Linux, Unix, QNX

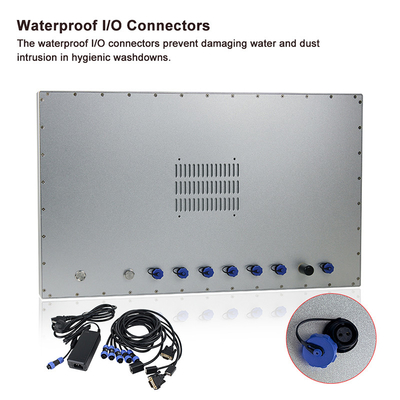

I / O

VIDEO

1 x H-DMI ( Optional )

LAN

1 x LAN ( Optional )

USB

4 x USB ( Optional )

COM

2 x RS232 ( Optional )

Wireless Network

WiFi + Bluetooth ( Optional )

Other I/O Interface

1 x Power Switch

LCD Panel

Panel Size

23.8" FHD LED

Resolution

1920 x 1080

Aspect Ratio

16:9

Display Brightness

350 cd/m2

Contrast Ratio

1000:1

Colors

16.7M , 74% NTSC

Backlight Lifetime

30000 Hr (min.)

Viewing Angle

89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D )

Touch screen

Touch Screen Type

10 point capacitive touch

Transmittance

>90%

Response Time

<5ms

Surface Hardness

≥6H

Supply Voltage

5.0V DC

Touch Life

≧ 3000W

Institutional

Material

Aluminum Alloy Shell

Color

Silver / Black ( optional )

VESA Mounting

VESA: 100 x 100 mm

Waterproof Rate

IP66 / IP69K

Product Dimension

583 x 352.5 x 39 mm

Cut-out Size

/

Packing Size

730 x 220 x 530 mm

Gross Weight

18 KG

Power and Environment

Operating Temperature

-10~60°C

Storage Temperature

-20~80°C(-22~176°F)

Relative Humidity

5%~95%@40°C, non-condensing

Vibration Range

5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis

External Power Supply

AC 100 - 240V~50/60Hz,1.5A

Working Voltage

DC 12V~24V / optional(+9V~36V)

Power Consumption

≦45W







Waterproof 24 Inch HMI Display Touch Screen Industrial Panel PC Support Windows 0

2. Our Services
1.We can provide OEM/ODM services .
2.We can sell one sample for your test .
3.High-quality product and competitive price.
4.1 years Warranty, but we will charge for the parts that need to change.



3. About US:

Shenzhen Innoyond Technology Co. , Ltd. is an innovative and fast-growing technology enterprise, quality 7”-24” touch display industrial panel pc  solutions for industry, banking, outdoor, education, self-service terminals, vehicles, medical, military, marine applications. The company is located in Shenzhen, the main production of industrial computers. With more than 10 years of experience in the industry, we provide touch-screen solutions to a large number of customers at home and abroad. Our goal is to be your most reliable partner in Chinese mainland industrial computer solutions.
