Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 10.1" LED |
|---|---|---|---|
| Resolution: | 1280 X 800 | CPU: | Intel Celeron J16412 Quad-core 2.0GHz |
| Memory: | 4G/8G/16G/32G ( Optional) | Harddisk: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| I/O Port: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive |
| High Light: | Aluminum HMI Touch Panel PC,3 LAN HMI Touch Panel PC,J6412 All In One Industrial PC |
||

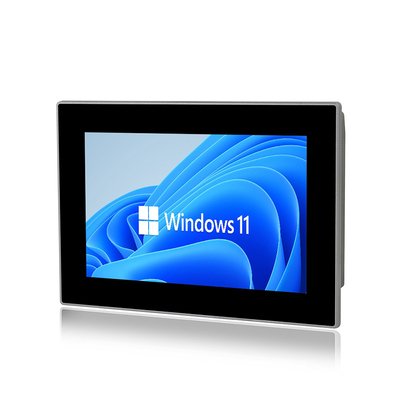

HMI Industrial Touch Panel PC:
Unlike traditional enterprise all-in-one PCs, industrial panel PCs are engineered designed to withstand the harshest environments. VESA mountable and touchscreen capable, our panel PCs are ready to be embedded and integrated into virtually any industrial environment, even outdoors. Fanless cooling helps protect internal components from dust and debris that typically damages computers in industrial areas. QYT's Industrial Panel PCs are also customizable with multiple legacy ports and expansion slots to ensure their versatility and ability to be adapted to any job.
HMI Panel PC Features:
1. 10.1" TFT LED with PCAP Touch
2. Intel Elkhart Lake Celeron J6412 2.0GHz
3. DDR4L 3200MHz 4GB, MAX 32GB

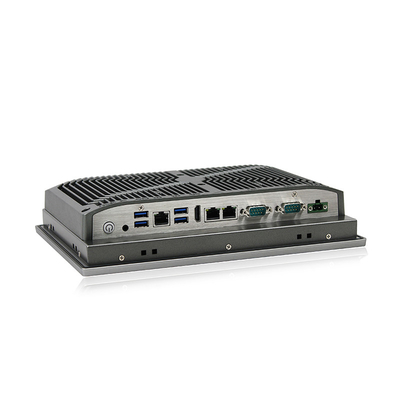

4. 1xHDMI, 4xUSB, 3xLAN, 2xCOM
5. Built-in TPM2.0 for Hardware-based Security
6. Wide voltage DC 9V~36V, with overcurrent, overvoltage and reverse connection protection
7. -20°C ~ 70°C extended operating temperature
8. IP65 Compliant Front Panel
| PPC-C010WAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 10.1" ( 16:10 ) |
| Resolution | 1280 x 800 |
| Brightness (cd/m²) | 400 |
| Contrast Ratio | 900:1 |
| Backlight MTBF | 30000 Hr |
| Viewing Angle | 85 / 85 / 85 / 85 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 275 x 194 x 58 mm |
| Cut-out Size | 263 x 182 mm |
| Packing Size | 360 x 180 x 320 mm |
| Weight (Net) | 2.5 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
QYT industrial PCs are designed to run 24/7/365 with the following characteristics to meet the demands of the IoT:
