Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 12.1" Led |
|---|---|---|---|
| Resolution: | 800 X 600 | CPU: | Intel Celeron J16412 Quad-core 2.0GHz |
| RAM: | 4G/8G/16G/32G ( Optional) | Harddisk: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| I/O Interface: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive |
| High Light: | 6412 All In One Touch Screen Computer,Aluminium alloy Industrial Panel PC,TDP 10W Industrial Panel PC |
||
About US
For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.

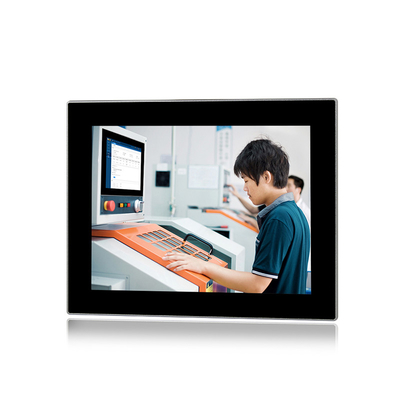

Industrial All in One Touchscreen PC Feature
1. Aluminium alloy front panel, front IP65 waterproof
2. 12" TFT LED, resolution 800*600, 10 points capacitive touch
3. Intel Celeron J16412 Quad-core 2.0GHz
4. 1xHDMI, 4xUSB, 3xLAN, 2xCOM
5. Built-in TPM2.0 for Hardware-based Security
6. DC 9~36V, overcurrent, overvoltage & reverse connection protection
| PPC-C012SAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J16412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |

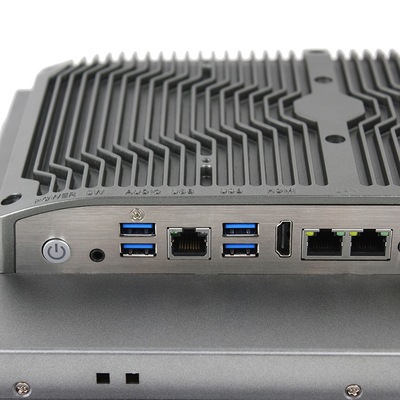

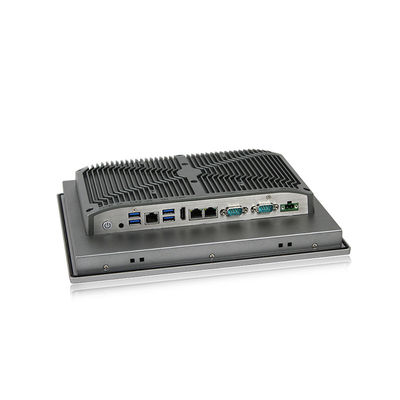

| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 12.1" ( 4:3 ) |
| Resolution | 800 x 600 / 1024 x 768 Optional |
| Brightness (cd/m²) | 500 |
| Contrast Ratio | 1200:1 |
| Backlight MTBF | 50000 Hr (min.) |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 304 x 243 x 60 mm |
| Cut-out Size | 290 x 229 mm |
| Packing Size | 450 x 170 x 350 mm |
| Weight (Net) | 2.9 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
Modular Industrial Panel PC
QYT industrial panel PCs are available in a wide selection of display size, backlight brightness, touch type and computer performance. Our panel PCs are offered in sizes from 7- to 24-inch, in 4:3 and 16:9 aspect ratios, and with optional multi-point projected capacitive (P-CAP) or single point resistive touchscreen. All processor options are covered by our industrial panel PCs, ranging from low-power Intel Celeron to the high-performance Core series.
Our industrial panel PCs are designed with innovative technologies, highest industrial standard and extensive functionalities that fulfill the needs for a wide range of applications. QYT industrial panel PCs are ideal for human-machine interface applications like machine operation monitoring, materials planning management, and plant environmental controls.
