Product Details:
|
| IP Rating: | Front IP65 | Led Panel: | 12.1" Led |
|---|---|---|---|
| Resolution: | 800 X 600 | CPU: | Intel Celeron J16412 Quad-core 2.0GHz |
| RAM: | 4G/8G/16G/32G ( Optional) | Harddisk: | 1 X M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 X 2.5" SATA |
| I/O Interface: | 1xHDMI, 4xUSB, 3xLAN, 2xCOM | Touchscreen: | Capacitive Touch / Resistive |
| High Light: | Embedded AIO Industrial Touch Screen PC,3*LAN Industrial Touch Screen PC,Front IP65 Industrial Touch Panel PC |
||
About US
QYT is the leading solutions provider in Edge Computer & HMI System Platform.
After 10 years of unremitting pursuit and experience accumulation, QYT possesses 5 series of industrial products, rugged and durable waterproof computer (WPC), highly integrated control HMI (DCP) and embedded fanless industrial panel computer (PPC), embedded industrial personal computer ( IPC) and embedded fanless industrial computers (EFIC).
Industrial Touch Panel PC Features:
1. Front IP65 waterproof Industrial Touch Panel PC
2. 12" TFT LED, resolution 800*600, 10 points capacitive touch
3. Intel Celeron J16412 Quad-core 2.0GHz

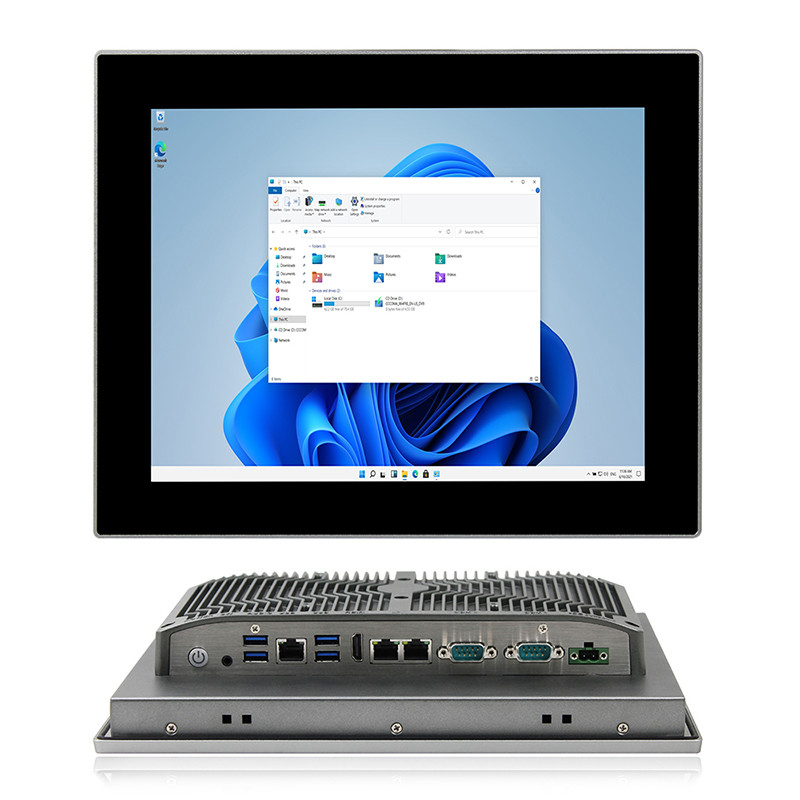

4. 1xHDMI, 4xUSB, 3xLAN, 2xCOM
5. Built-in TPM2.0 for Hardware-based Security
6. DC 9~36V, overcurrent, overvoltage & reverse connection protection
| PPC-C012SAC | |
| System | |
| CPU | Intel® Elkhart Lake Celeron J16412 Quad-core 2.0GHz , TDP 10W |
| L2 Cache | 1.5MB |
| System Chipset | Integrated with Intel® SoC |
| Memory | DDR4L 3200MHz 4GB, MAX 32GB |
| Harddisk | 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
| Graphics | Intel® UHD Graphics for 10th Gen Intel® Processors |
| Network | Intel® 225-V GbE LAN |
| Audio | Realtek ACL897 Audio controller |
| TPM | TPM 2.0 |
| Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
| Operation System | Windows 10 / 11, Linux, Ubuntu |
| I / O | |
| VIDEO | 1 x H-DMI |
| LAN | 3 x LAN (10/100/1000/2500 Mbps) |
| USB | 4 x USB 3.0 |
| COM | 2 x RS-232 / 422 / 485 |
| Audio | 1x Audio_out & Mic_in |
| Wireless Network | Optional (WiFi / Bluetooth / 4G / 5G ) |
| Display | |
| LCD Size | 12.1" ( 4:3 ) |
| Resolution | 800 x 600 / 1024 x 768 Optional |
| Brightness (cd/m²) | 500 |
| Contrast Ratio | 1200:1 |
| Backlight MTBF | 50000 Hr (min.) |
| Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
| Power Mode | Support AT, ATX Mode |
| Power Input | 2-pin Terminal Block Connector with Power Input 9~36VDC |
| Power Protection | OVP (Over Voltage Protection) OCP (Over Current Protection) RPP(Reverse Polarity Protection) |
| Power Consumption | ≦30W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |
| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 304 x 243 x 60 mm |
| Cut-out Size | 290 x 229 mm |
| Packing Size | 450 x 170 x 350 mm |
| Weight (Net) | 2.9 KG |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |

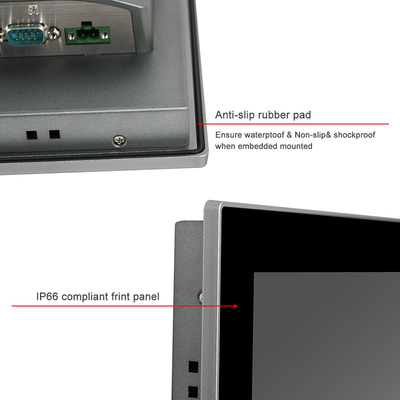

| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
Industrial PCs are primarily used for process control and/or data acquisition. In some cases, an industrial PC is simply used as a front-end to another control computer in a distributed processing environment.
Industrial PCs offer different features than consumer PCs in terms of reliability, compatibility, expansion options and long-term supply.
Industrial PCs are typically characterized by being manufactured in lower volumes than home or office PCs. Industrial PCs typically cost considerably more than comparable office style computers with similar performance.
For the Industrial Panel PC, a display, typically an LCD is incorporated into the same enclosure as the motherboard and other electronics. These are typically panel mounted and often incorporate touch screens for user interaction. They are offered in heavier duty models sealed to IP66/IP65 standards to be waterproof at the front panel.
