Product Details:
|
Waterproof Rating: | IP67 / IP69K | Panel Size: | 15.6" Led |
---|---|---|---|
Resolution: | 1920 X 1080 | CPU: | Intel Celeron Quad Core J1900 2.0GHz |
Memory: | DDR3L 1333MHz 4GB, Up To 8GB | HDD: | 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
I/O: | VGA/HD-MI/LAN/USB/RS232 | Touchscreen Panel: | Resistive Touch / Capacitive Touch |
Power Input: | DC 12V~24V / DC 9V~36V Optional | Operating System: | Win7/8/10/Linux/Ubuntu |
High Light: | Stainless Steel PC 15.6 Inch,IP66 Stainless Steel PC,IP66 Waterproof Touch Screen PC |
Features

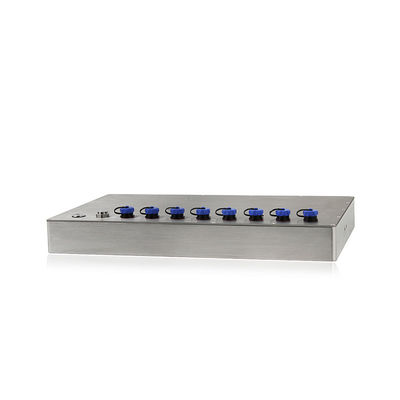

The WPC series of waterproof touch screen computers developed by QYT are specially designed for industrial IoT applications with strict hygiene requirements. It’s with IP66/IP69K protection grade SUS304 stainless steel housing. The industrial-grade I/O connectors can prevent sanitary washing damage and dust from entering. It eliminates the damage caused by washing.
The IP69K protection grade is widely used in food, beverage, meat, pharmaceutical and medical industries, and can withstand the washing in sanitary and aseptic environments.
1.15.6" TFT LED, resolution 1920*1080, 5 Wire Resistive touch
WPC-J156WDR | |
System | |
CPU | Intel® Bay Trail Celeron J1900 Quad-core 2.0GHz , TDP 10W |
L2 Cache | 2.0MB |
System Chipset | Integrated with Intel® SoC |
Memory | DDR3L 1333MHz 4GB, Up to 8GB |
Harddisk | 1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional |
Graphics | Intel HD Graphics |
Network | Intel 82583V 1000 Mbps port |
Audio | Realtek ACL662 Audio controller |
Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
Operation System | Windows 7 / 10 / 11, Linux, Ubuntu |
I / O | |
VIDEO | 1 x H-DMI ( Optional ) |
LAN | 2 x LAN ( Optional ) |
USB | 4 x USB ( Optional ) |
COM | 2 x RS232 ( Optional ) |
Wireless Network | WiFi + Bluetooth ( Optional ) |
Other I/O Interface | 1 x Power Switch |
Display | |
LCD Size | 15.6" ( 16:9 ) |
Resolution | 1920 x 1080 ( FHD ) |
Brightness (cd/m²) | 450 |
Contrast Ratio | 1000:1 |
Backlight MTBF | 50000 hrs |
Viewing Angle | 89 / 89 / 89 / 89 (CR≥10) ( L / R / U / D ) |
Touch screen | |
Touch Type | 5 Wire Resistive touch |
Surface Hardness | ≥3H |
Power | |
Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
Power Input | DC 12V~24V |
Power Consumption | ≦30W |
Physical | |
Material | SUS304 / SUS316 |
Mounting | Stand / Wall / VESA / Yoke |
Dimension (W x H x D) | 385 x 234 x 45 mm |
Packing Size | 460 x 180 x 400 mm |
Weight (Net) | 6.6 kg |
Environment | |
Operating Temperature | -20~70°C ( -4~158°F ) |
Storage Temperature | -30~80°C (-22~176°F) |
Relative Humidity | 5%~95%@40°C, non-condensing |
Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
IP Level | IP67 / IP69K |
EMC | CE, FCC,ROHS |
OEM/ODM
1. size from 7''-24'' available
2. Processor--Intel J1900/ I3/I5/I7 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V~36V wide voltage input
Applications
Industrial automation
human Machine Interface
Marine control system
welding industry
supervisory control
numerical control device
