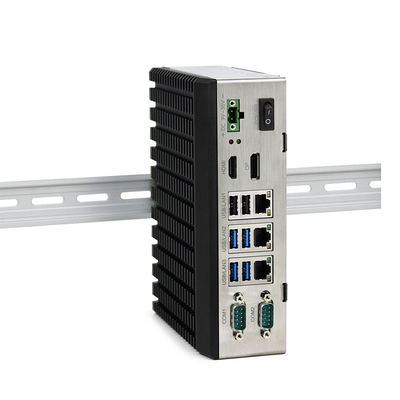

Bluetooth Industrial Embedded Box PC J16412 Mini PC 2 Lan Ports DIN Rail Mounting

Bluetooth Industrial Embedded Box PC J16412 Mini PC 2 Lan Ports DIN Rail Mounting
Bluetooth Industrial Embedded Box PC J16412 Mini PC 2 Lan Ports DIN Rail Mounting Bluetooth Industrial Embedded Box PC J16412 Mini PC 2 Lan Ports DIN Rail Mounting Bluetooth Industrial Embedded Box PC J16412 Mini PC 2 Lan Ports DIN Rail Mounting

Large Image :  Bluetooth Industrial Embedded Box PC J16412 Mini PC 2 Lan Ports DIN Rail Mounting

Product Details:
Place of Origin: Shenzhen, China
Brand Name: QYT
Certification: CE, FCC, RoHS
Model Number: DIN-R2000CA
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Packaging Details: Foam + Carton
Delivery Time: 3-10 Business Days
Payment Terms: T/T , Paypal , L/C , D/A , D/P , Western Union , MoneyGram
Supply Ability: 5000 Set/Sets per Month

Bluetooth Industrial Embedded Box PC J16412 Mini PC 2 Lan Ports DIN Rail Mounting

Description
CPU: Intel Celeron J6412 Quad Core 2.0GHz Memory: 4GB, Up To 32GB
Harddisk: 120G SSD / ( 250G / 500G SSD) Optional / 1 X 2.5" SATA I/O Port: 1*HDMI, 1*DP, 3*LAN, 6*USB, 2*COM
Power Input: DC 9V~36V Voltage Input Operating System: Windows 10, Linux, Ubuntu, Debian
Power Consumption: ≦15W Working Time: 7*24h
High Light:

Bluetooth Industrial Embedded Box PC TPM2.0

,

TPM2.0 Bluetooth Industrial Embedded Box PC

,

Embedded Industrial Mini PC OEM

DIN Rail Mounting Intel Elkhart Lake Celeron J16412 Mini Pc 2 Lan Ports Industrial Box PC

About US

For more than 10 years, QYT has been a quality-driven leader in the industrial controls marketplace. We specialize in the design, manufacture, and support of human machine interface (HMI) solutions. We offer affordable control solutions for industrial, OEM, automation, and municipal applications. We take pride in providing superior customer support and application assistance to help you achieve business and process goals on time and within budget. Our main products lines include Industrial Panel PC, Full IP67/IP68/IP69K Waterproof Industrial Computers, Industrial Embedded Box PC, Touch screen Industrial Monitor, Device Control Panel, etc,.



Industrial Embedded Box PC​ Features:

1. Intel Celeron J16412 Quad-core 2.0GHz Fanless Configuration
2. Wall mounting/DIN-rail mounting supported
3. 3*Gigabit Ethernet Ports, Wake on LAN and PXE Supported
4. 2*RS-232 / 422 / 485 , 1*WiFi / Bluetooth / 4G / 5G Optional
5. TPM 2.0 Support For Maximum Security
6. Work temperature -20 ° C to 70 ° C
7. DC 9V~36V Input



Industrial embedded PC computers with fanless operation avoid dust ingress whilst operating in industrial environments. The fanless operation on these embedded box pcs also increases shock resistance, reliability and durability, plus extended temperature ranges can be achieved. These industrial pcs are quieter than computers using fans and in industries such as food and pharma, the fanless operation avoids the circulation of dirt and pathogens around the environment.





DIN-R2000CA
System
CPU Intel® Elkhart Lake Celeron J16412 Quad-core 2.0GHz , TDP 10W
L2 Cache 1.5MB
System Chipset Integrated with Intel® SoC
Memory DDR4L 3200MHz 4GB, MAX 32GB
Harddisk 1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA
Graphics Intel® UHD Graphics for 10th Gen Intel® Processors
Network Intel® 225-V GbE LAN
Audio Realtek ACL897 Audio controller
TPM TPM 2.0
Watchdog Timer Software Programmable Supports 1~255 sec. System Reset
Operation System Windows 10 / 11, Linux, Ubuntu

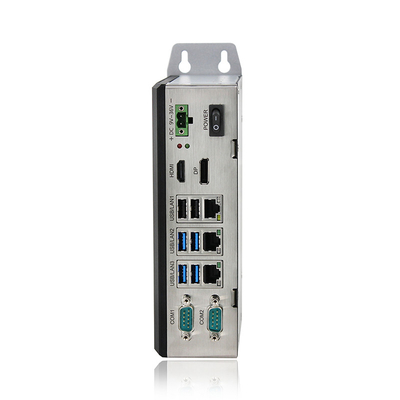

I / O
VIDEO 1 x DP / 1 x HD-MI
LAN 3 x LAN 10/100/1000/2500 Mbps
USB 2 x USB2.0 / 4 x USB3.0
COM 2 x RS-232 / 422 / 485
DIO DIO 8 Bits ( 4 In / 4 Out ) Optional
Audio 1x Audio_out & Mic_in
Wireless Network Optional (WiFi / Bluetooth / 4G / 5G )
Power
Power Adapter 1 x Optional AC/DC 12V/4A , 48W
Power Mode Support AT, ATX Mode
Power Input 2-pin Terminal Block Connector with Power Input 9~36VDC
Power Protection OVP (Over Voltage Protection)
OCP (Over Current Protection)
RPP(Reverse Polarity Protection)
Power Consumption ≦20W
Physical
Material Aluminum Alloy Shell
Color Grey / Silver / Black ( optional )
Mounting 210 x 30 mm / DIN-Rail
Product Dimension 185 x 145 x 57 mm
Packing Size 360 x 180 x 320 mm
Weight (Net) 1.5 KG
Environment
Operating Temperature -20~70°C ( -4~158°F )
Storage Temperature -30~80°C (-22~176°F)
Relative Humidity 5%~95%@40°C, non-condensing
Vibration Range 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
EMC CE, FCC,ROHS


Bluetooth Industrial Embedded Box PC J16412 Mini PC 2 Lan Ports DIN Rail Mounting 0Bluetooth Industrial Embedded Box PC J16412 Mini PC 2 Lan Ports DIN Rail Mounting 1Bluetooth Industrial Embedded Box PC J16412 Mini PC 2 Lan Ports DIN Rail Mounting 2





Industrial PC solutions from QYT feature the latest in cutting-edge fanless design. It helps prevent damage or failure due to dust, debris and vibration.

Our systems have been engineered for use in today's most challenging Industrial IoT and edge computing environments. Our industrial computers help reduce downtime and prevent failures to give you peace of mind. We offer a variety of form factors ideal for space constrained installations.

QYT industrial PCs are designed to run 24/7/365 with the following characteristics to meet the demands of the IoT:

  • Ability to withstand harsh environments
  • Highly configurable
  • Extensive I/O options
  • Compact form factors
  • Long lifecycle
