Product Details:
|
IP Rating: | IP66 / IP69K | Led Panel: | 12.1" Led |
---|---|---|---|
Resolution: | 1280 X 800 | CPU: | Intel Core I3-6100U Dual Core 2.4GHz |
Memory: | 4GB, Up To 16GB | HDD: | 128G SSD / (250G / 500G / 1TB SSD) Optional |
I/O Interface: | VGA/HD-MI/LAN/USB/COM | Touchscreen: | Capacitive Touch / Resistive |
High Light: | I3-6100U Industrial AIO PC,Waterproof Industrial AIO PC,IP69K Waterproof Touchscreen Computer |

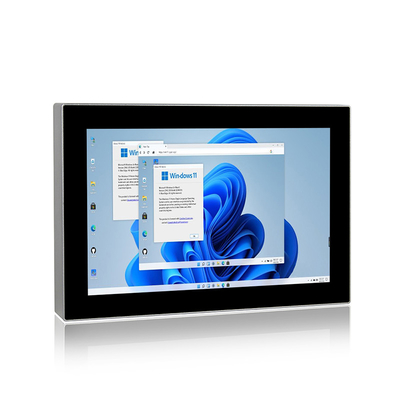

Industrial Aio Pc 12 Inch Waterproof Computer IP69K I3-6100U Dual Core
Applications
The waterproof computers are a great solution for food and beverage processing, agriculture and automation control where the computers are in constant threat of water splash from all directions to even water immersion.
WPC-O012WAC | |
System | |
CPU | Intel® Bay Trail Core i3-6100U Dual Core 2.4GHz , TDP 15W |
L2 Cache | 3.0MB |
System Chipset | Integrated with Intel® SoC |
Memory | DDR4L 2133MHz 4GB, Up to 16GB |
Harddisk | 1 x mSATA 128G SSD / (250G / 500G / 1TB SSD) Optional |
Graphics | Intel HD Graphics 520 |
Network | Intel® I211-AT GbE LAN |
Audio | Realtek ACL662 Audio controller |
Watchdog Timer | Software Programmable Supports 1~255 sec. System Reset |
Operation System | Windows 7 / 10 / 11, Linux, Ubuntu |
I / O | |
VIDEO | 1 x H-DMI ( Optional ) |
LAN | 2 x LAN ( Optional ) |
USB | 4 x USB ( Optional ) |
COM | 2 x RS232 ( Optional ) |
Wireless Network | WiFi + Bluetooth ( Optional ) |
Other I/O Interface | 1 x Power Switch |
Display | |
LCD Size | 12.1" ( 16:10 ) |
Resolution | 1280 x 800 |
Brightness (cd/m²) | 400 |
Contrast Ratio | 1000:1 |
Backlight MTBF | 50000 hrs |
Viewing Angle | 88 / 88 / 88 / 88 (CR≥10) ( L / R / U / D ) |
Touch screen | |
Touch Type | Multi-Touch PCAP |
Surface Hardness | ≥7H |
Power | |
Power Adapter | 1 x Optional AC/DC 12V/5A , 60W |
Power Input | DC 12V~24V |
Power Consumption | ≦30W |
Physical | |
Material | Aluminum Alloy Shell |
Mounting | Stand / Wall / VESA / Yoke |
Dimension (W x H x D) | 312 x 214 x 40 mm |
Packing Size | 450 x 170 x 350 mm |
Weight (Net) | 2.8 kg |
Environment | |
Operating Temperature | -20~70°C ( -4~158°F ) |
Storage Temperature | -30~80°C (-22~176°F) |
Relative Humidity | 5%~95%@40°C, non-condensing |
Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
IP Level | IP66 / IP69K |
EMC | CE, FCC,ROHS |
QYT's industrial Panel PC product portfolio include customizable and all-in-one touchscreen pc series with multiple industrial touch panel sizes and rich I/O expansion to meet industrial standards.
All-in-one Panel PC features ultra slim metal enclosure w/ compact & fanless system, which is easy to be integrated in general industrial applications.
All-in-one Panel PC features fanless design and rich I/O expansion enhancing efficiency for harsh & comprehensive industrial system integration.
