Product Details:
|
Product Name: | 17.3 Inch Industrial Panel Pc | CPU: | Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
---|---|---|---|
TPM: | TPM 2.0 | Operation System: | Windows 10 / 11, Linux, Ubuntu |
Resolution: | 1920 X 1080 ( FHD ) | Brightness (cd/m²): | 400 Cd/m2 |
Touch Type: | 10 Point PCAP | Power Input: | 2-pin Terminal Block Connector With Power Input 9~36VDC |
High Light: | PCAP Industrial Touch Screen Display,400 cd/m2 Industrial Touch Screen Display,4G RAM Industrial Panel PC |

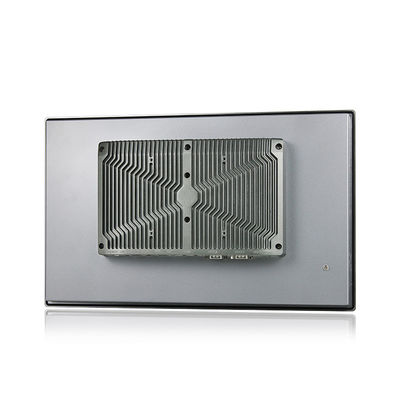

17.3 inch touch screen display with 4G RAM 120G SSD
About us:
Innoyond is an innovative and fast-growing high-tech enterprise, specializing in providing high-quality touch solutions and display solutions for industries, medical care, marine applications, self-service terminals and other fields.
Our company's factories are all located in Shenzhen, which makes it easier for us to communicate with the outside world.
With more than ten years of industry experience, we have provided touch solutions for a large number of customers at home and abroad. Our goal is to become your most reliable touch display solution partner in mainland China.
Feature
1. Wireless motherboard design, high-end industrial tablet PC
2. Fully enclosed design, the whole machine is dustproof.
3. Aluminum alloy shell, seamless design, front panel IP65 waterproof. Integrated heat sink on the back for excellent heat dissipation.
4. Adopt multi-point PCAP touch screen with high sensitivity and fast response.
5. 9V-36V wide voltage
6. Equipped with Intel J6412 processor, support Windows 10/11, Linux, Ubuntu system.
PPC-C173WAC |
|
System |
|
CPU |
Intel® Elkhart Lake Celeron J6412 Quad-core 2.0GHz , TDP 10W |
L2 Cache |
1.5MB |
System Chipset |
Integrated with Intel® SoC |
Memory |
DDR4L 3200MHz 4GB, MAX 32GB |
Harddisk |
1 x M.2 120G SSD ( 250G / 500G / 2TB SSD) / 1 x 2.5" SATA |
Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
Network |
Intel® 225-V GbE LAN |
Audio |
Realtek ACL897 Audio controller |
TPM |
TPM 2.0 |
Watchdog Timer |
Software Programmable Supports 1~255 sec. System Reset |
Operation System |
Windows 10 / 11, Linux, Ubuntu |
I / O |
|
VIDEO |
1 x H-DMI |
LAN |
3 x LAN (10/100/1000/2500 Mbps) |
USB |
4 x USB 3.0 |
COM |
2 x RS-232 / 422 / 485 |
Audio |
1x Audio_out & Mic_in |
Wireless Network |
Optional (WiFi / Bluetooth / 4G / 5G ) |
Display |
|
LCD Size |
17.3" ( 16:9 ) |
Resolution |
1920 x 1080 ( FHD ) |
Brightness (cd/m²) |
400 cd/m2 |
Contrast Ratio |
600:1 |
Backlight MTBF |
50000 Hr (min.) |
Viewing Angle |
80 / 80 / 60 / 80 (CR≥10) ( L / R / U / D ) |
Touch screen |
|
Touch Type |
10 point PCAP |
Surface Hardness |
≥7H |
Power |
|
Power Adapter |
1 x Optional AC/DC 12V/5A , 60W |
Power Mode |
Support AT, ATX Mode |
Power Input |
2-pin Terminal Block Connector with Power Input 9~36VDC |
Power Protection |
OVP (Over Voltage Protection) |
Power Consumption |
≦30W |
Physical |
|
Material |
Aluminum alloy panel, anodized treatment |
Mounting |
Stand / Wall / VESA / Panel |
Dimension (W x H x D) |
441 x 274 x 62 mm |
Cut-out Size |
427 x 260 mm |
Packing Size |
500 x 180 x 450 mm |
Weight (Net) |
4.1 KG |
Environment |
|
Operating Temperature |
-20~70°C ( -4~158°F ) |
Storage Temperature |
-30~80°C (-22~176°F) |
Relative Humidity |
5%~95%@40°C, non-condensing |
Vibration Protection |
1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
IP Level |
Front Panel IP66 |
EMC |
CE, FCC,ROHS |
FAQ
A) Are you a manufacturer? What do you mainly supply?
Yes, we are an industrial grade consumer electronics factory for more than ten years. The main products are industrial tablet PCs, industrial control computers, fanless embedded industrial control hosts, etc.
B) Sampling time?
Existing items: within 5-7 days.
C) Can you make our brand on your products?
Yes. If you can meet our MOQ, we can print your logo on the product and package.
D) How to ensure the quality of your products?
1) Strict testing during the production process.
2) Strictly test and inspect the product before shipment to ensure that the product packaging is in good condition.
