Product Details:
|
| Product: | Industrial Touch Screen Display | Panel Size: | 17 Inch |
|---|---|---|---|
| Resolution: | 1280 X 1024 | Touch Type: | 10 Point PCAP |
| Mounting: | Stand / Wall / VESA / Panel | Power Input: | 12~24VDC |
| High Light: | 1280 X 1024 Industrial Touch Screen Display,10point PCAP Industrial Touch Screen Display,VESA Mounting Touch Screen Display |
||

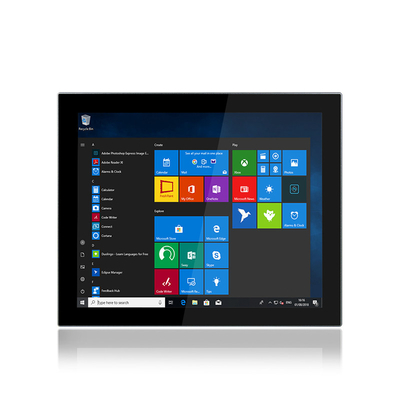

1280 x 1024 17'' Industrial Touch Screen Display monitor industrial
Product Description of Industrial Touch Screen Display
PM-H17SAC, Industrial Touch Screen Display is a fanless tablet computer with a screen size of 17". This industrial flat panel display has rich I/O interfaces to meet the complex multi-external device system interface requirements. Support VGA/DVI/HDMI Display interface. This 17-inch industrial flat-panel display has industrial-grade quality and stability, and can better meet the requirements of various complex industrial environments. It is suitable for numerical control equipment, industrial automation control systems, intelligent transportation systems, vehicle systems and other fields.
| PM-H17SAC | |
| Display | |
| Panel Size | 17" ( 5:4 ) |
| Resolution | 1280 x 1024 |
| Display Brightness | 400 |
| Contrast Ratio | 1000:1 |
| Backlight Lifetime | 50000 hrs |
| Viewing Angle | 80 / 80 / 70 / 70 (CR≥10) ( L / R / U / D ) |
| Touch screen | |
| Touch Type | 10 point PCAP |
| Surface Hardness | ≥7H |

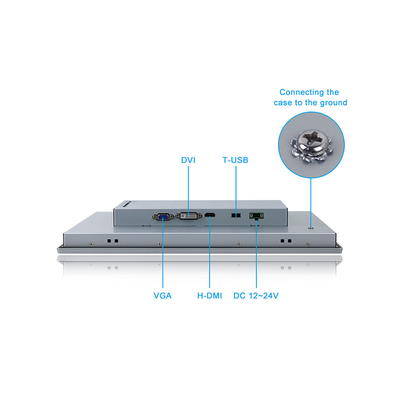

| I / O | |
| VGA | 1 x VGA |
| H-DMI | 1 x H-DMI |
| DVI | 1 x DVI |
| USB | 1 x Touch USB |
| Other I/O Interface | 1 x OSD Control Key |
| Power | |
| Power Adapter | 1 x Optional AC/DC 12V/4A , 48W |
| Power Input | 2-pin Terminal Block Connector with Power Input 12~24VDC |
| Power Consumption | ≦25W |
| Physical | |
| Material | Aluminum alloy panel, anodized treatment |

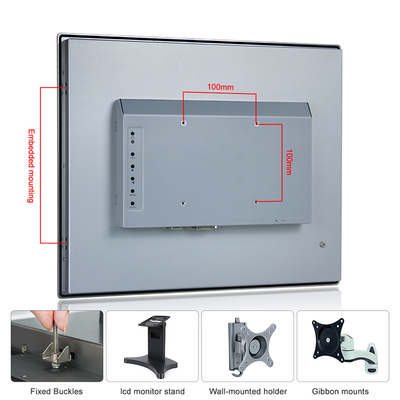

| Mounting | Stand / Wall / VESA / Panel |
| Dimension (W x H x D) | 395 x 327 x 55 mm |
| Cut-out Size | 381 x 313 mm |
| Packing Size | 500 x 180 x 450 mm |
| Weight (Net) | 3.8 kg |
| Environment | |
| Operating Temperature | -20~70°C ( -4~158°F ) |
| Storage Temperature | -30~80°C (-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Protection | 1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| IP Level | Front Panel IP66 |
| EMC | CE, FCC,ROHS |
Application of Industrial Touch Screen Display
We are a system solution provider for industrial Touch Screen Display. Focus on the research and development of smart retail, smart medical care, smart factory automation and other application solutions, and provide industrial users with competitive industrial computer solutions. Our products cover smart retail, energy management, smart manufacturing, smart medical care, industrial information security and other fields, as well as smart cabinet series (including smart express cabinets, smart fresh cabinets, etc.).
OEM service of industrial Touch Screen Display
* Do you want the device to have its own boot logo? Do you want to shorten boot time and reduce useless computer programs? Let us help you achieve your goals.
* Appearance
Such as color, size, structure, etc., make it different and make it your own
* Configuration
Tell us about your I/O requirements and how your equipment will be used, and let us help you choose the best option for your business.
